24 ®
1
2
3
8
4 5
6
7
9

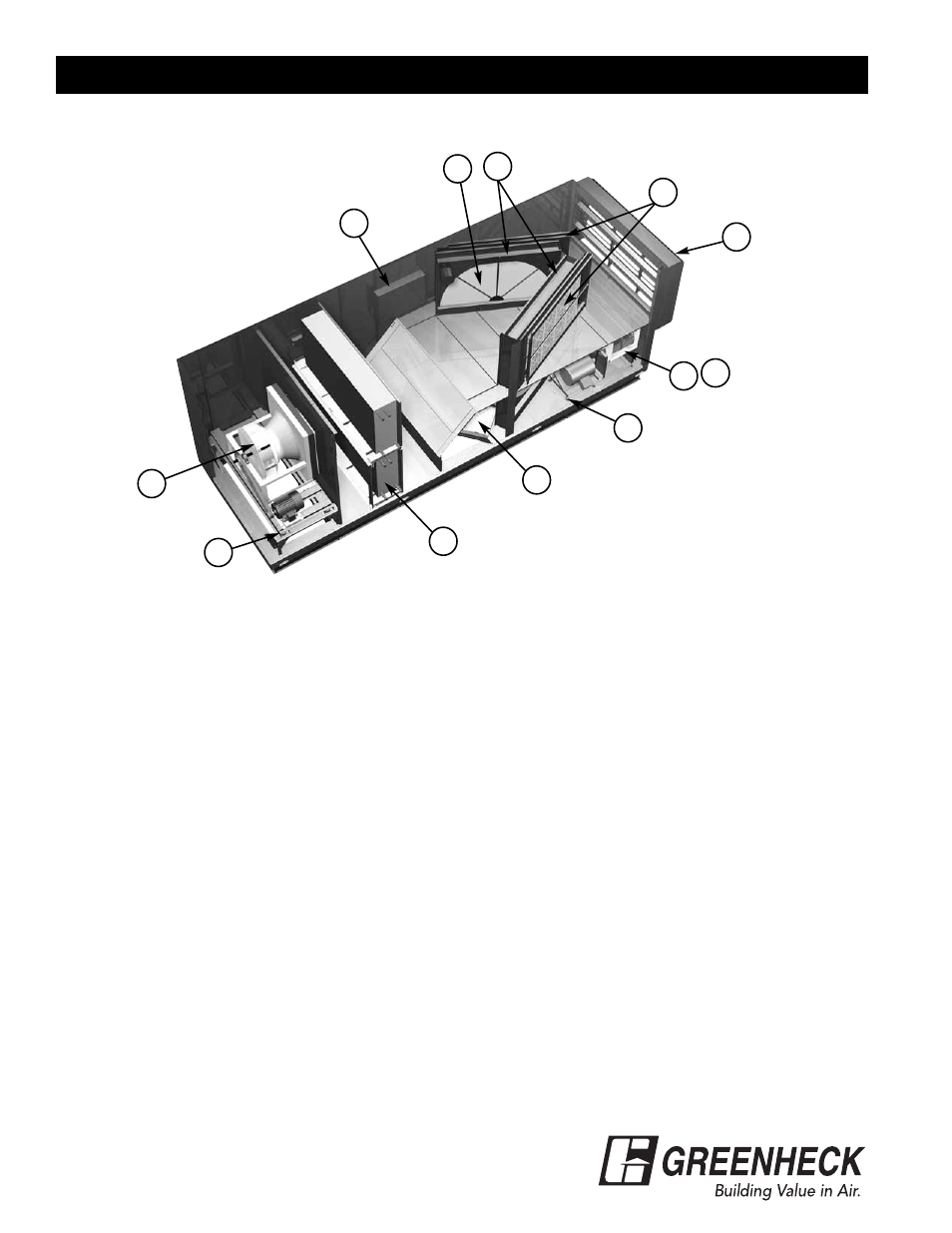

Model APEX
(shown with optional chilled
water and hot water coils)
10
1. Supply blower
- Plenum fan
- Adjustable motor mount for belt tensioning
- Adjustable sheaves for speed control
2. Exhaust blower (2 per unit - each side)
- Forward curved fan
- Adjustable motor mount for belt tensioning
- Adjustable sheaves for speed control
3. Vibrations isolators (4 per blower)
- Neoprene (exhaust blowers)
- Spring (supply blower)
4. Energy recovery wheel cassette (2 per unit)
5. Removable energy recovery wheel segments
6. Supply weatherhood with 2 in. aluminum mesh
filters
7. Exhaust weatherhood with birdscreen and integral
backdraft damper (2 per unit)
8. Supply air filter racks for 2 in. pleated, 30%
efficient filters (2 straight racks for supply)
9. Exhaust air filter racks for 2 in. pleated, 30%
efficient filters (v-bank rack accessed inside unit)
10. Electrical control box (standard features)
- Single point power
- Disconnect interlocked with access door
- Motor starters for the supply blower, exhaust
blowers and energy wheel motors
- 24 VAC, control circuit with terminal strip
11. Coil section houses supply air tempering options
- DX or chilled water for cooling
- Electric or hot water heat for heating
3
11
Parts List
