Global Machinery Company SYT210 User Manual

Page 10

the mitre table to the desired position. The mitre table

features positive click stops for quick setting of common

mitre angles.

WARNING.

Be sure to tighten the mitre table locks before

making a cut. Failure to do so could result in the table

moving during the cut and cause serious personal injury.

Bevel lock

The bevel lock (12) is used to set

the blade at the desired bevel

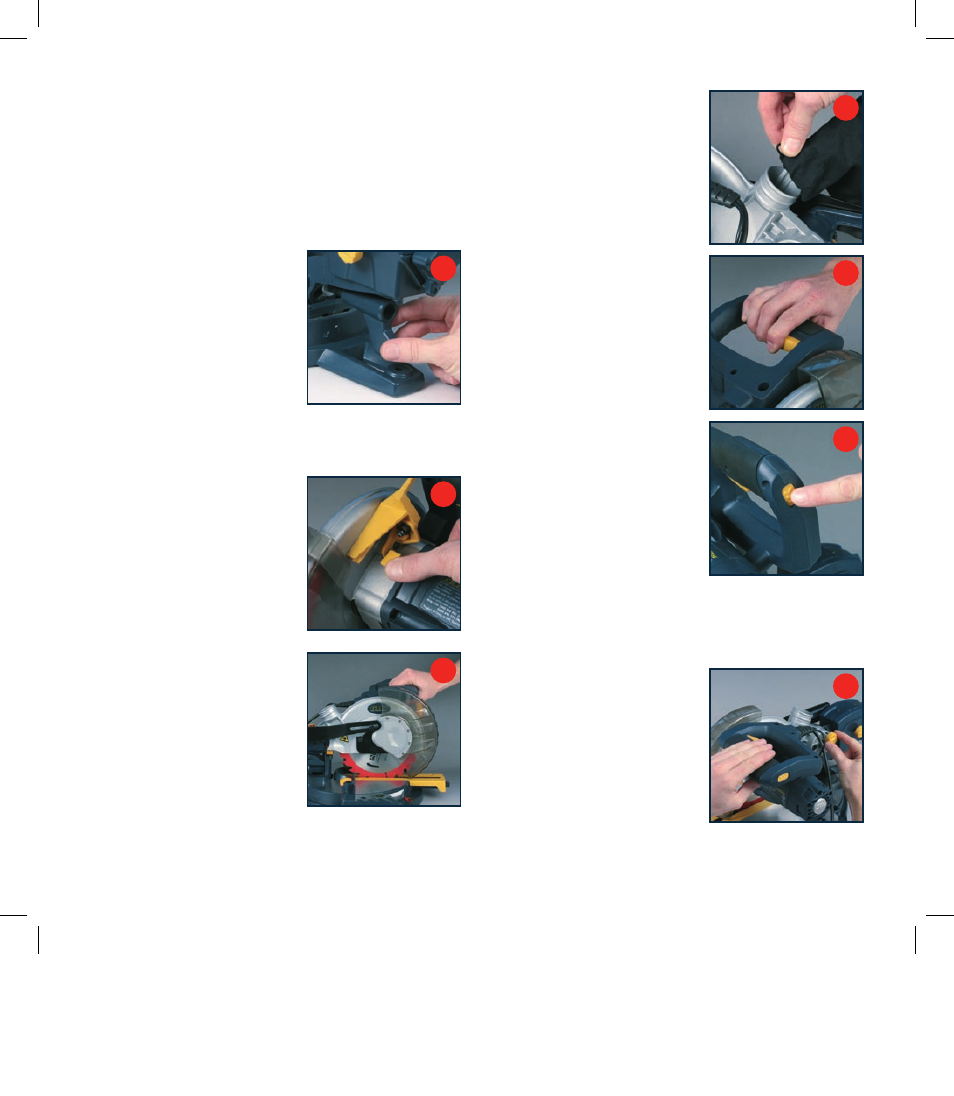

angle (fig. H). The mitre saw bevel

cuts from 0° to 45° to the left. To

adjust the bevel angle loosen the

bevel lock and adjust the saw arm

to the desired bevel angle.

WARNING.

Be sure to tighten

the bevel lock before making

a cut. Failure to do so could result in the saw arm moving

during the cut and cause serious personal injury.

Spindle lock button

The spindle lock button (25)

prevents the blade in the saw

from rotating (fig. I). Depress and

hold the spindle lock button while

installing, changing, or removing

the blade.

Rotating lower

blade guard

The rotating lower blade guard

(9) provides protection from both

sides of the blade. It retracts

over the upper blade guard (8)

as the saw is lowered into the

workpiece workpiece (fig. J).

Dust bag

The dust bag (28) fits over the

dust extraction port (27) (fig. K).

For more efficient operation,

empty the dust bag when it is no

more than half full. This allows

better air flow through the bag.

Turning on and off

1. To turn the saw on depress

and hold the on/off trigger

switch (23) (fig. L).

2. To turn the saw off release the

on/off trigger switch (23).

Turning on the REDEYE

laser line generator

The REDEYE

laser line

generator emits an intense

narrow beam of pure red light to

guide you as you cut. It improves

operator cutting vision, enables

faster set-up, increases accuracy

and improves safety. To turn on

the laser line press the laser light

on/off switch (2) (fig. M). To turn off the laser press the laser

light on/off switch (2) one more time.

Setting the table square with the blade

1. Make sure that the electrical

plug is removed from the

power point.

2. Push the saw arm (5) down

to its lowest position and

engage the release knob (6)

to hold the saw arm in the

transport position (fig. N).

3. Loosen the mitre locks (18).
