Part No. 82900

Genie TZ-50

29

Operator's Manual

First Edition • Sixth Printing

CG

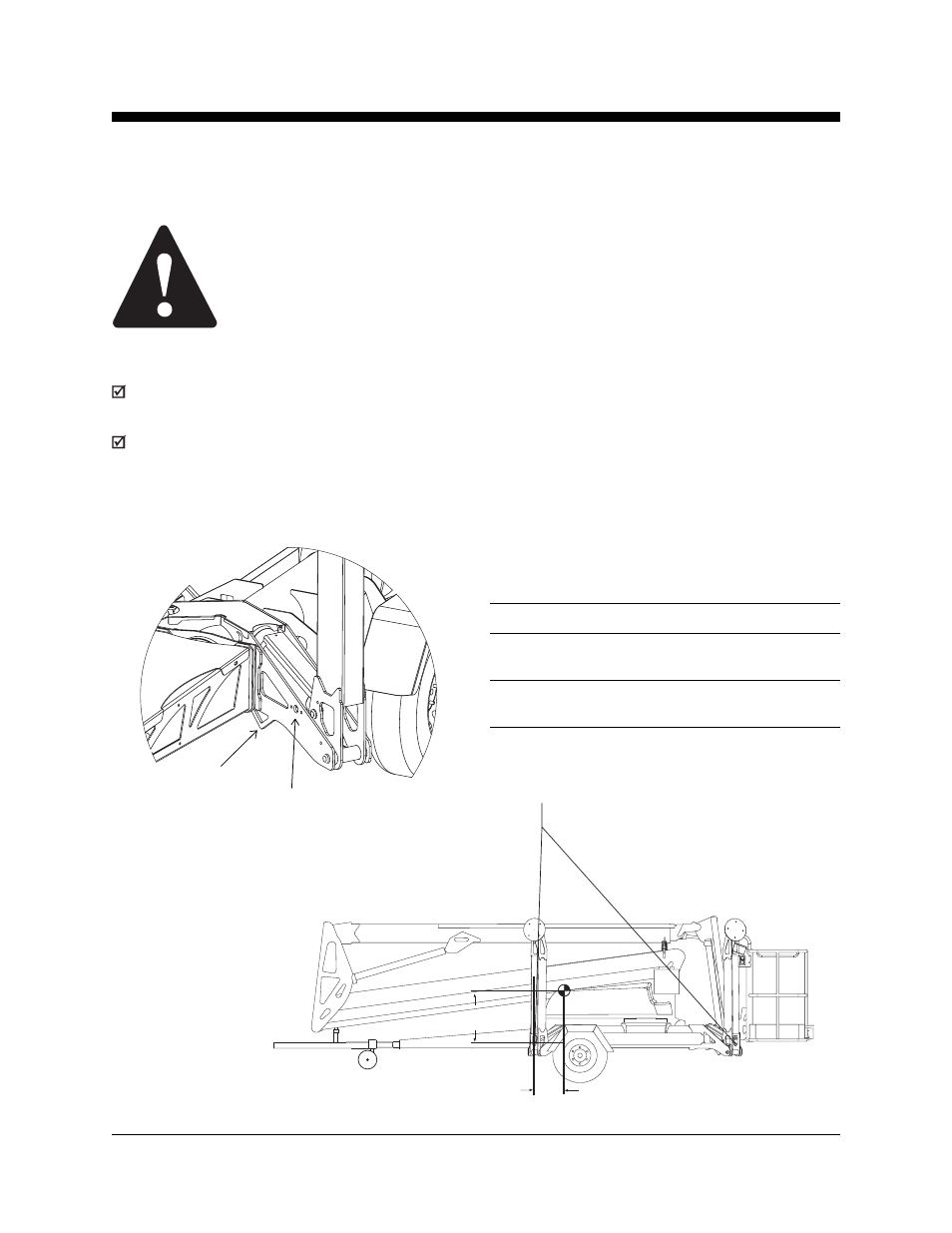

TRANSPORT AND LIFTING INSTRUCTIONS

Lifting Instructions

Fully lower and retract the boom.

Securely latch the boom hold-down latches.

Raise all four outriggers to the stowed position.

Remove all loose items on the machine.

Determine the center of gravity of your machine
using the table and pictures on this page. Measure
from one of the lifting points on the tongue end of
the machine.

Attach the rigging only to the designated lifting
points on the machine.

Adjust the rigging to prevent damage to the
machine and to keep the machine level.

X Axis

Y Axis

ANSI and CSA

13.5 in

16 in

4.1m

4.9 m

CE

12.4 in

16 in

3.8 m

4.9 m

Observe and Obey:

Only qualified riggers should rig and lift the

machine.

Be sure the crane capacity, loading surfaces

and straps or lines are sufficient to withstand
the machine weight. See the serial plate for the
machine weight.

Y axis

X axis

Tie-down
point

Lifting
point
