Installation Instructions

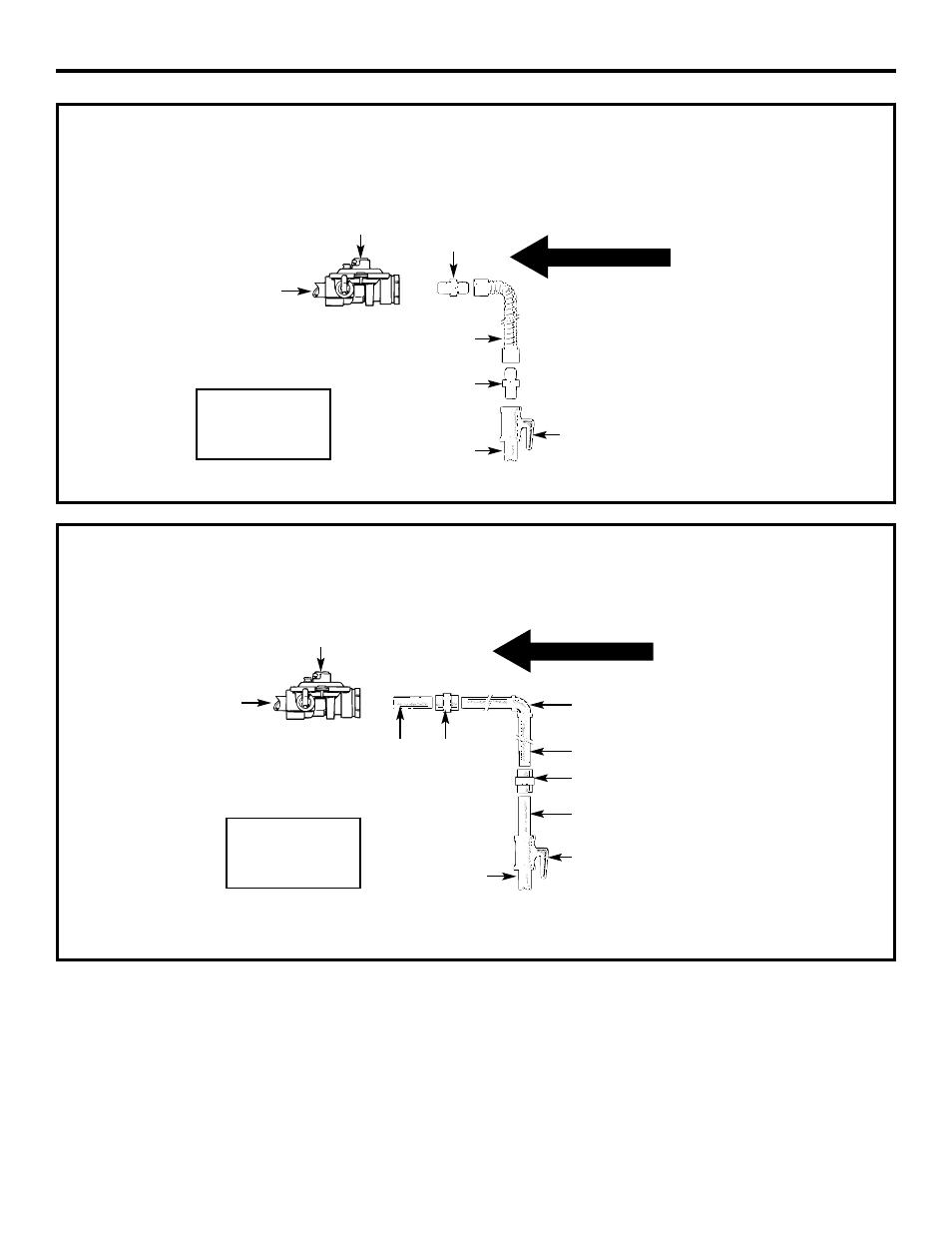

RIGID PIPE HOOKUP (for models equipped with Standard Twin Burners)
FLEXIBLE CONNECTOR HOOKUP
(for models equipped with Standard Twin Burners)
Adapter
1/2
″
or 3/4
″
Gas pipe
Adapter
Flex connector
(6 feet maximum)
Manifold
pipe
Pressure
regulator
Gas shut-off
valve
Union Nipple
Manifold
pipe
Nipple
Union
Black iron pipe
90° Elbow
Pressure
regulator
Gas Flow into Range
Installer: Inform
the consumer of
the location of the
gas shut-off valve.
1/2
″
or 3/4
″
Gas pipe
Gas shut-off
valve
Gas Flow into Range
Installer: Inform
the consumer of
the location of the
gas shut-off valve.
