Canopy Hood

1. After the hood is hung in position, slide the flat flange of the backsplash panel behind the back of

the hood.

Note: If the backsplash panel length is greater than 46 in. (116.84 cm), it will be shipped in multiple
pieces.

2. After the backsplash panel has been positioned, drill holes in the panel and fasten to the wall.

(fasteners provided by others).

Note:

The holes should be spaced to adequately secure the panel to the wall.

3. Caulk the joints between the hood and the backsplash panel with NSF Approved silicone caulk

(GE SCS1009, or its equivalent). The caulk is not provided.

4. Caulk the joint between the backsplash panels when multiple panels are required, with NSF

Approved silicone caulk (GE SCS1009, or its equivalent). The caulk is not provided.

HOLES SHOULD BE SPACED TO

ADEQUATELY SECURE THE PANEL

TO THE WALL STUDS (HOLE SPACING

AND FASTENERS PROVIDED BY OTHERS)

BACKSPLASH PANEL

HOOD END PANEL

HOOD FRONT PANEL

SLIDE FLANGE
BEHIND BACK
OF THE HOOD

SECTION VIEW
OF BACKSPLASH
PANEL OVERLAP

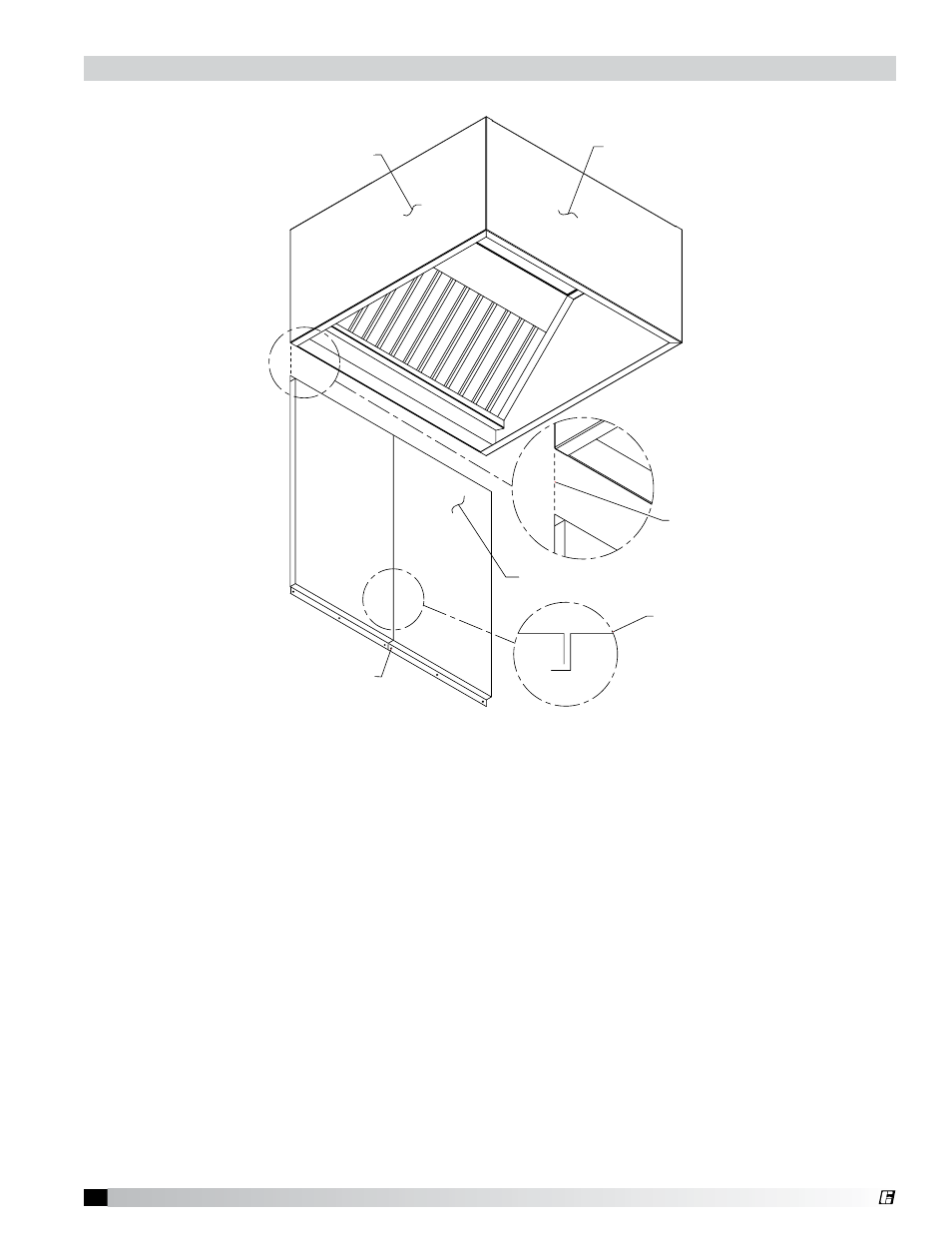

Fig. 23

Installing Backsplash Panels
