6
ASSEMBLY
Before beginning assembly, carefully read the
following information and instructions:
• To hire an authorized service technician to
assemble the weight bench in your home, call
1-800-445-2480.
• Assembly requires two persons.
• Because of its weight and size, the weight bench
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the weight bench as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• The included grease and the following tools (not
included) may be required for assembly:
Two adjustable wrenches
One rubber mallet
One standard screwdriver
One Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Assembly Easier
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by almost anyone. By setting aside
plenty of time, assembly will go smoothly.

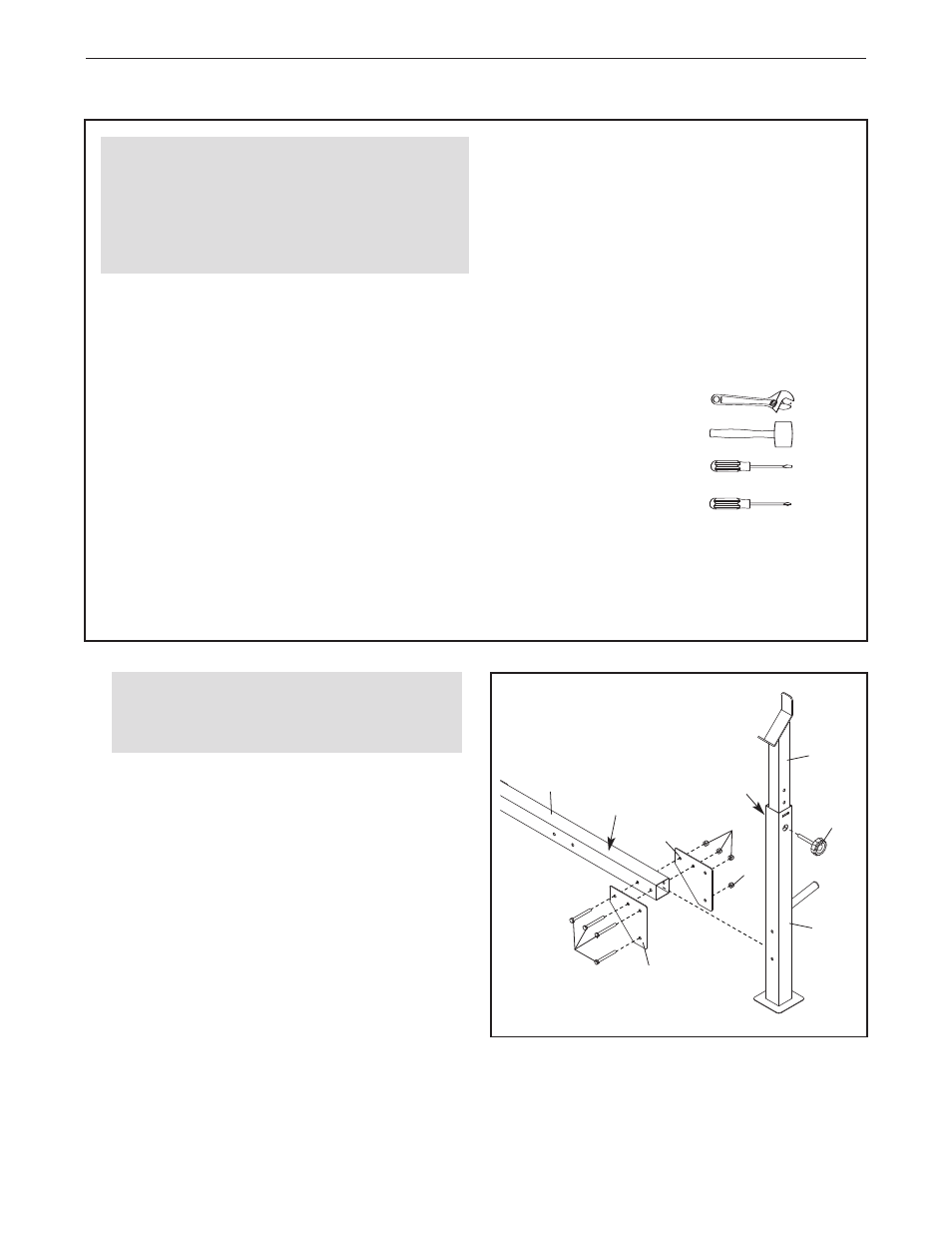

1.
Identify the Left Upright (6), which has a welded
nut on the side shown. Raise the Weight Rest (7)
in the Left Upright and secure it with a Weight
Rest Knob (23).
Orient the Crossbar (4) so that the warning
decals are on top. Attach the Crossbar to the Left
Upright (6) with two Joint Plates (18), four M10 x
80mm Bolts (42), and four M10 Nylon Locknuts
(43).
Do not tighten the Nylon Locknuts yet.
Attach the Crossbar (4) to the Right Upright
(not shown) in the same manner.
1
Before beginning assembly, make sure you
understand the information in the box
above.
4
Warning
Decal
43
43
18
18
42
6
7
Welded Nut
23
