20
1
2
3
4
7
5
7
8
6

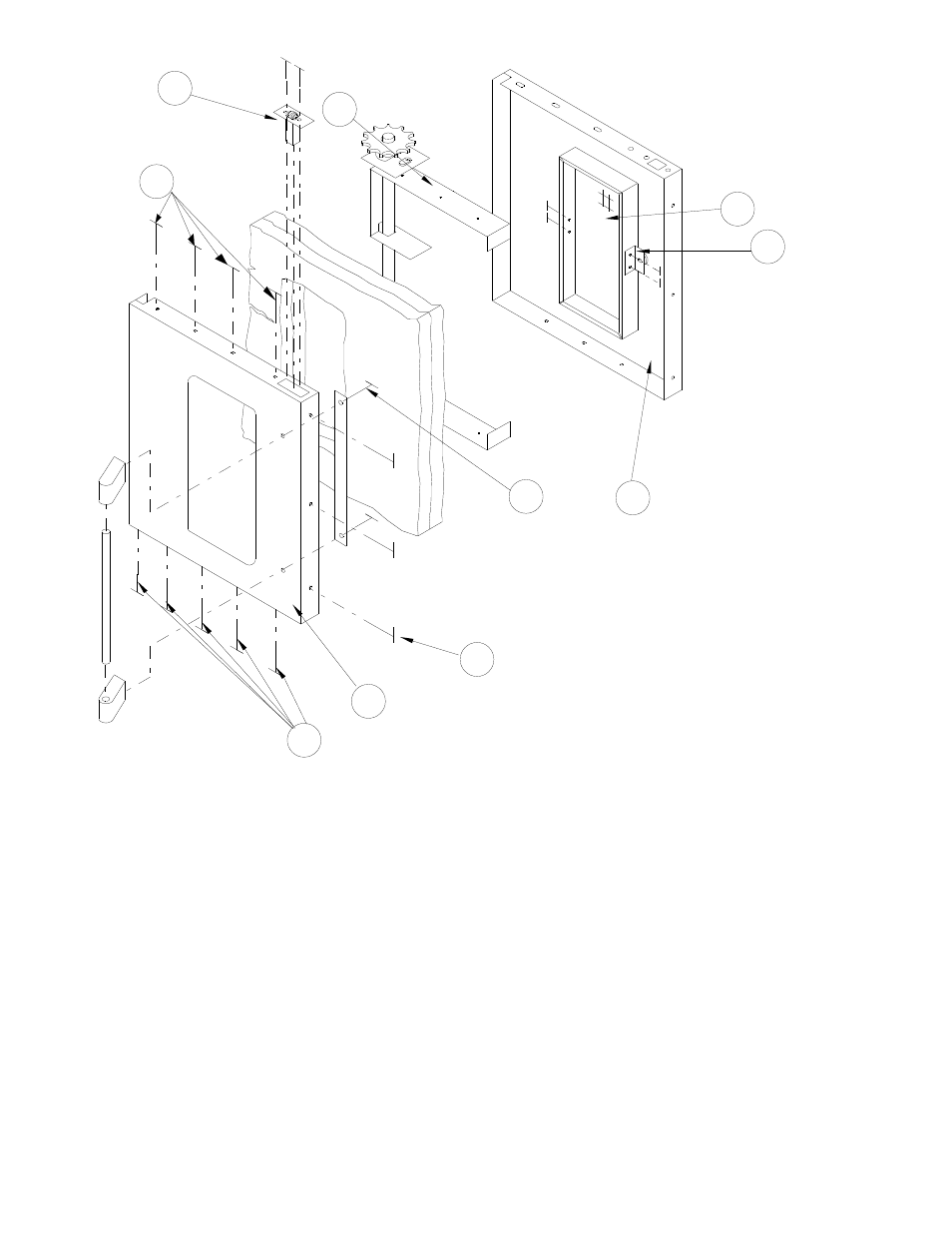

NOTICE: DEPENDENT DOOR SHOWN
7
To disassemble left door:
1. Once the door has been removed from the oven (refer to instructions on the previous page),
remove the 12 truss head 10 x ½ Phillips screws .
2. Remove 2 allen head cap screws from the door handle .
3. Carefully pry off the door panel from the door window bezel .
4. Remove 2 hex head m.s. ¼ -20 x ½ from the door liner that attach hold down straps to
the door liner .
5. Lift out the door frame .
6. Carefully pry off the door window for door liner .
7. To remove door catch remove 2 pan head Phillips screws.
8. To reassemble - reverse above procedure.
NOTE: There is a seam one side of the bezel that is part of the door window
, reinstall
working from the opposite side that the seam is on and work around the window
towards that seam.
Disassembly of the Right Door (w/o window)
