Deluxe Vane Axial Heater
1. Mark location on transition one
(1) foot up from the bottom
(entrance collar) and centered
in the transition.
2. Drill or knock out 7/8" diameter
hole on marked location.
3. Install transition hi-limit using
supplied self drilling screws.
Transition Hi-limit Installation
Figure 3: The transition connecting the Vane Axial Heater to the bin with
the plenum sensor in place.
INSTALLATION
GSI
Bin Configuration

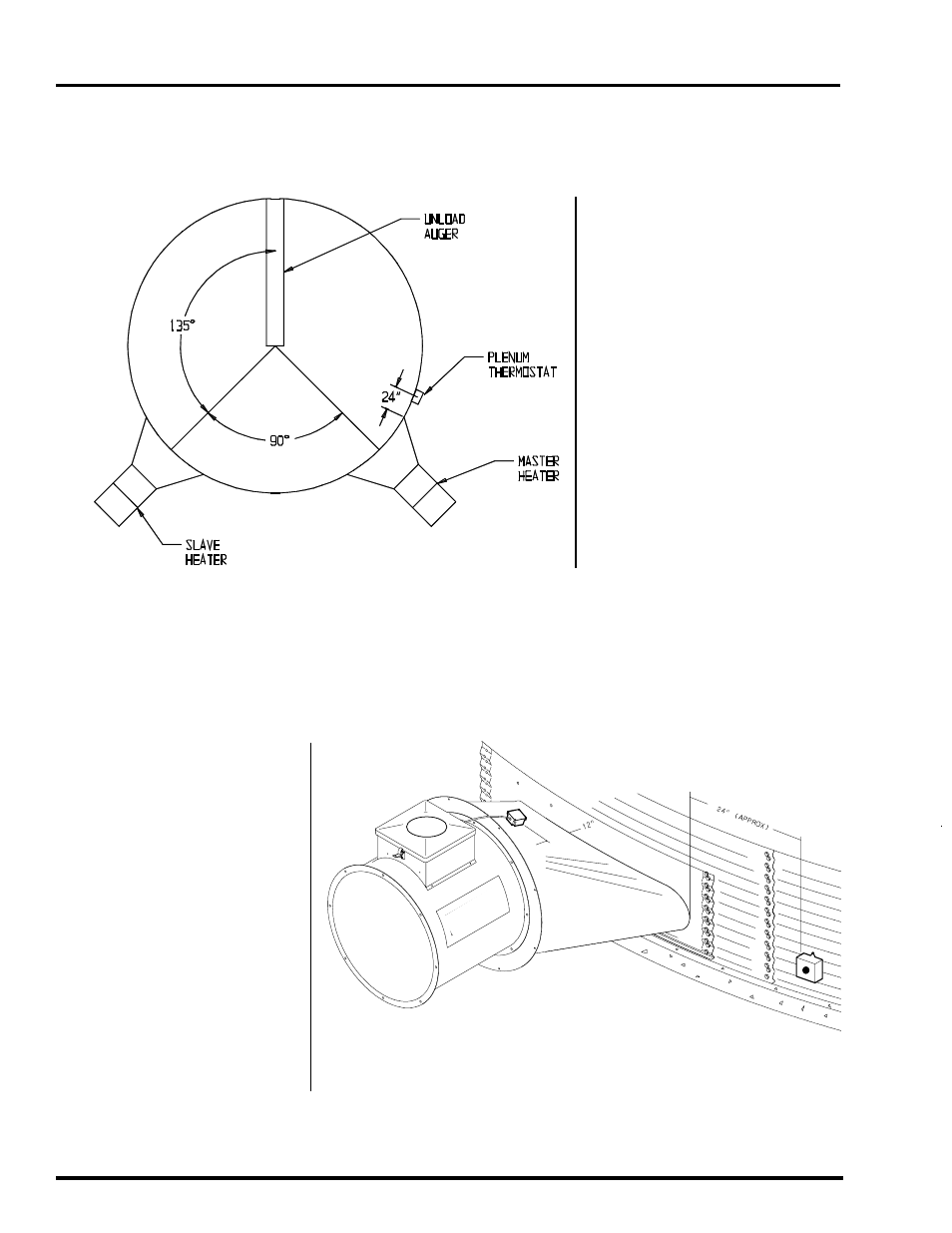

IMPORTANT! When
mounting (2) heaters on a
bin it is imperative that
they be situated as in
above drawing. Plenum
thermostat must be to the
right of master heater and
master heater must be to
the right of slave heater.
