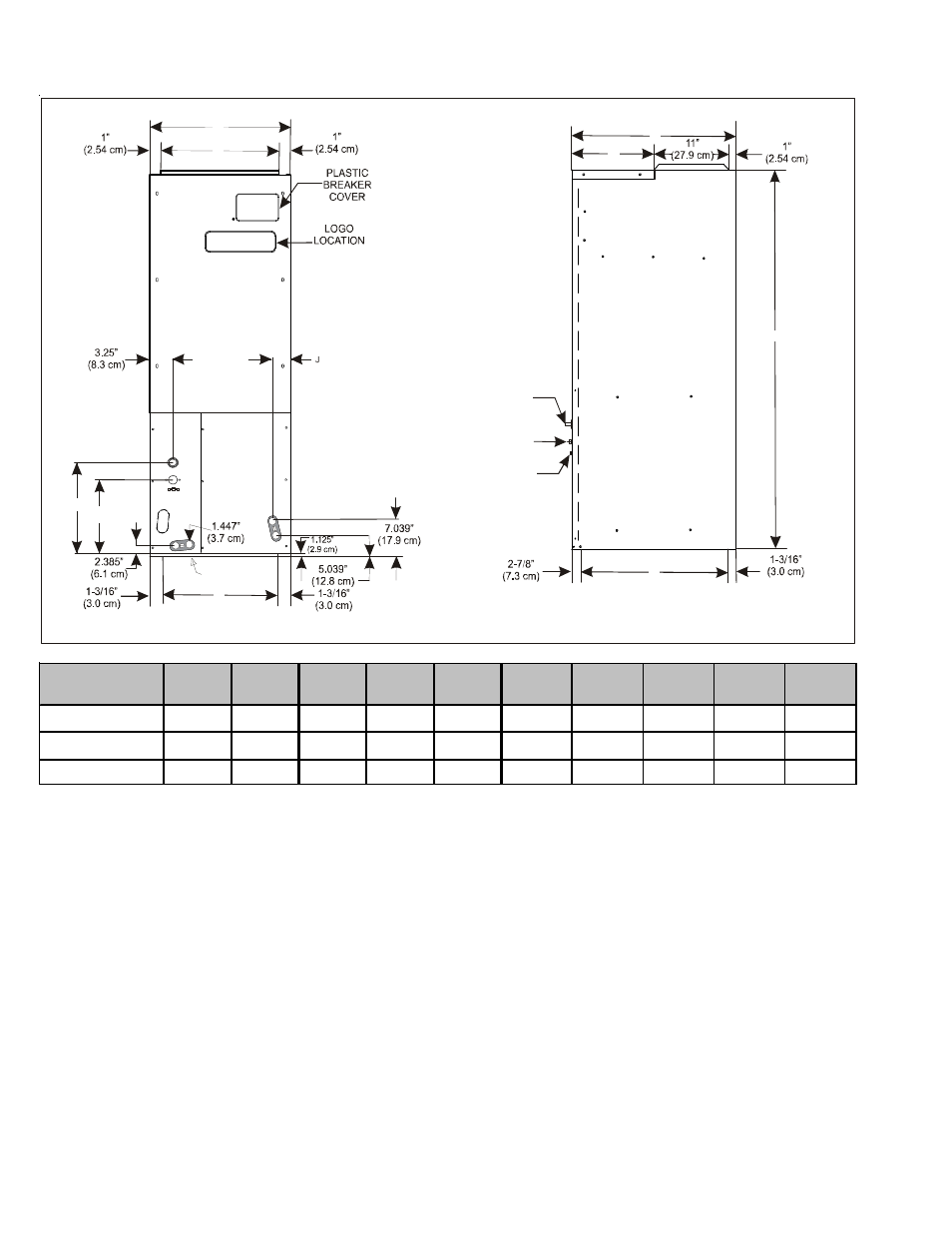

PRODUCT DIMENSIONS
6
AVPTC
Model
A
B
C
D
E
F
G
H
I
J
AVPTC183014
46 3/4"
22"
17 1/2"
19 1/2"
10'
14 1/2"
11 15/16"
17 1/8"
17 15/16"
2"
AVPTC313714
53 1/4"
24"
20"
22"
12"
19 5/8"
11 15/16"
19 5/8"
19 15/16"
1 13/16"
AVPTC426014
53 1/4"
24"
20"
22"
12"
19 5/8"
11 15/16"
19 5/8"
19 15/16"
1 13/16"
A
B
E
SUCTION
LINE
LIQUID
LINE
INLET
TUBE
I
INLET
(RIGHT SIDE VIEW)
H
INLET
(FRONT VIEW)
D
C
F
G
