-18- G0560 Meat-Cutting Bandsaw

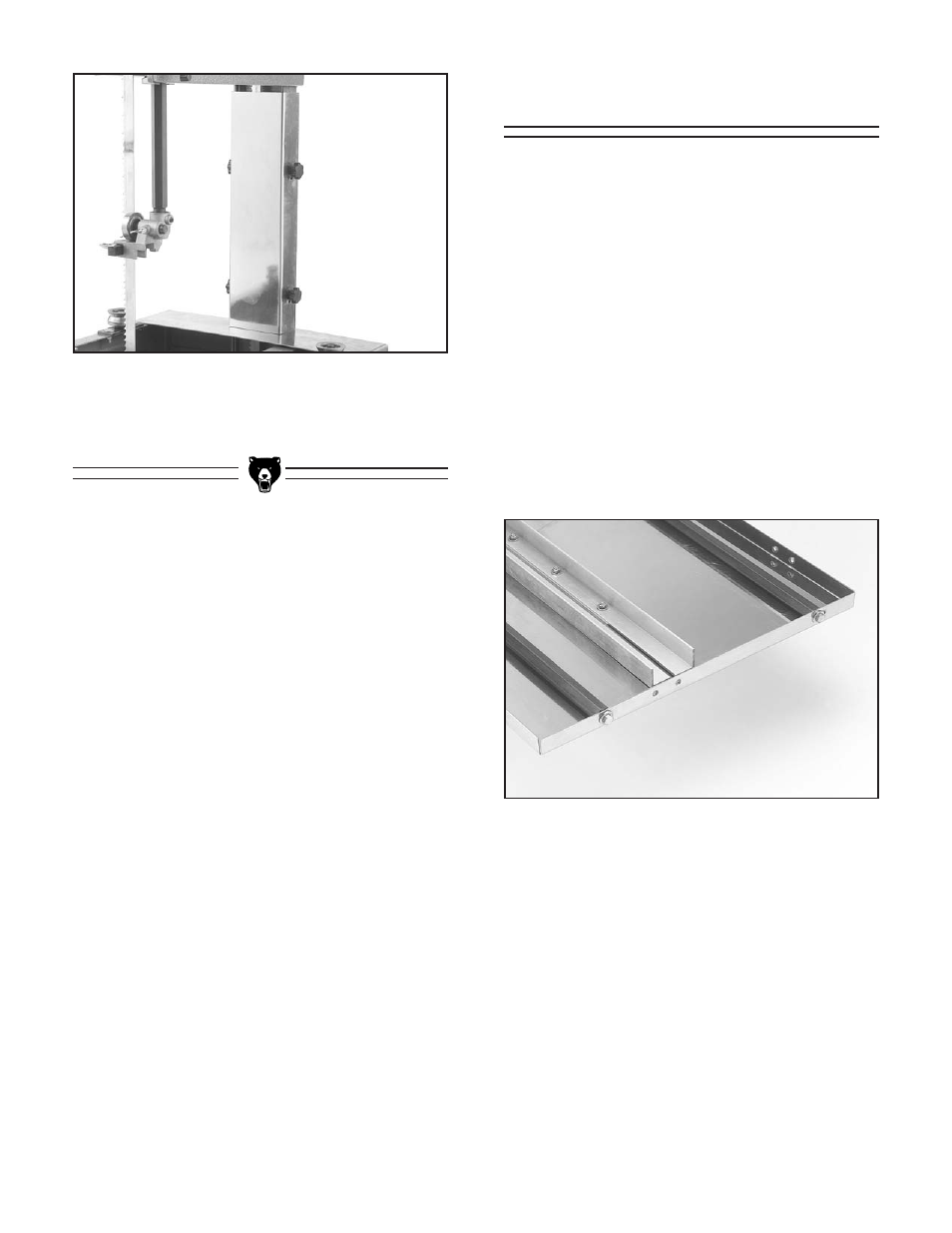

Figure 21. Installing rails on table.
The sliding table allows you to move the blade
through the meat.
Components and Hardware Needed: Qty
Sliding Table ......................................................1
Rail ....................................................................2
Force Plate ........................................................1
Knob Screw M6-1 x 12 ......................................4
Hex Bolt M6-1 x 12 ............................................4
Flat Washer 6mm ..............................................4
To install the sliding table:
1. Secure one end of each rail to the underside
of the sliding table as shown in
Figure 21.
Note— Secure the rail ends to the closed
side of the sliding table.
Table
Figure 20. Blade guard installed.
4. Secure the blade guard in place with two
knob screws on each side.
