CONNECTING THE PHONE:
3 4
PHONE SETUP:
Installing the phone (Phone Stand):
PC Port LAN Port Power Headset Port
For installing the phone on the table with the phone stand, attach the phone
stand to the bottom of the phone where there is a slot for the phone stand.
(Upper half, bottom part).

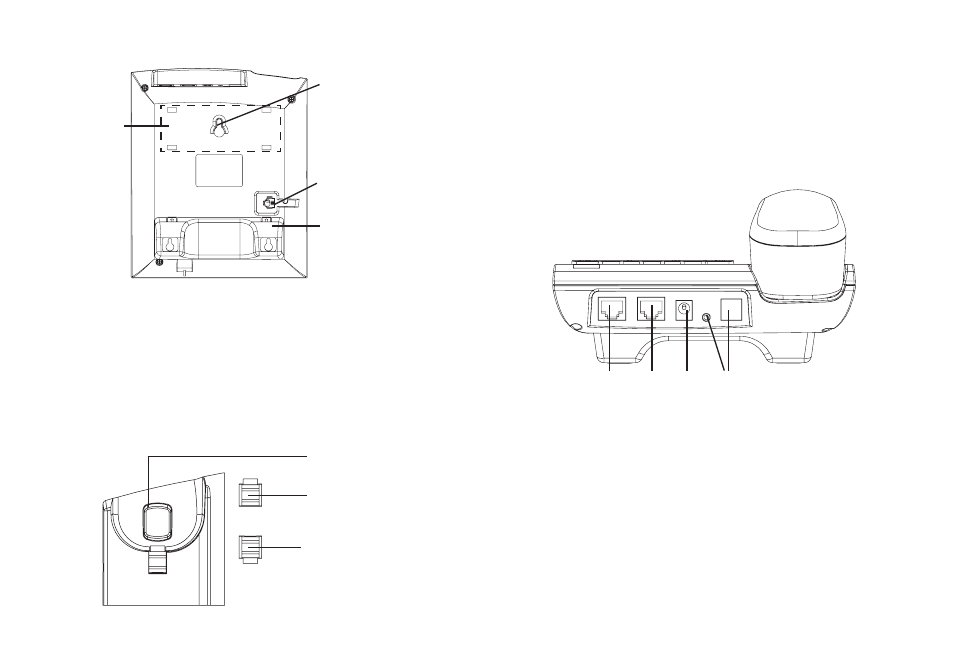

Refer to the illustration below when following the setup instructions .
To setup the GXP280/GXP285, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable.
3. Connect the 5V DC output plug to the power jack on the phone; plug the power
adapter into an electrical outlet. (GXP280 only)
4. The LCD will display provisioning or firmware upgrade information. Before
continuing, please wait for the date/time display to show up.
5. Using the phone embedded web server or keypad configuration menu, you
can further configure the phone using either a static IP or DHCP.
Installing the phone (Wall Mount):
1. Attach the phone stand to the bottom of the phone as wall mount spacers.
2. Attach the phone to the wall via the wall mount hole.
3. Pull out the tab on from the handset cradle. (See figure below)
4. Rotate the tab and plug it back into the slot with the extension up to hold the
headset while the phone is mounted on the wall. (See figure below)
Tab with extension up
Handset Rest
Tab with extension down
Wall Mount Holes are
available
Slot for the phone
stand if placing
the phone on the
table
Handset Port
Slot for the phone
stand if placing the
phone on the wall
