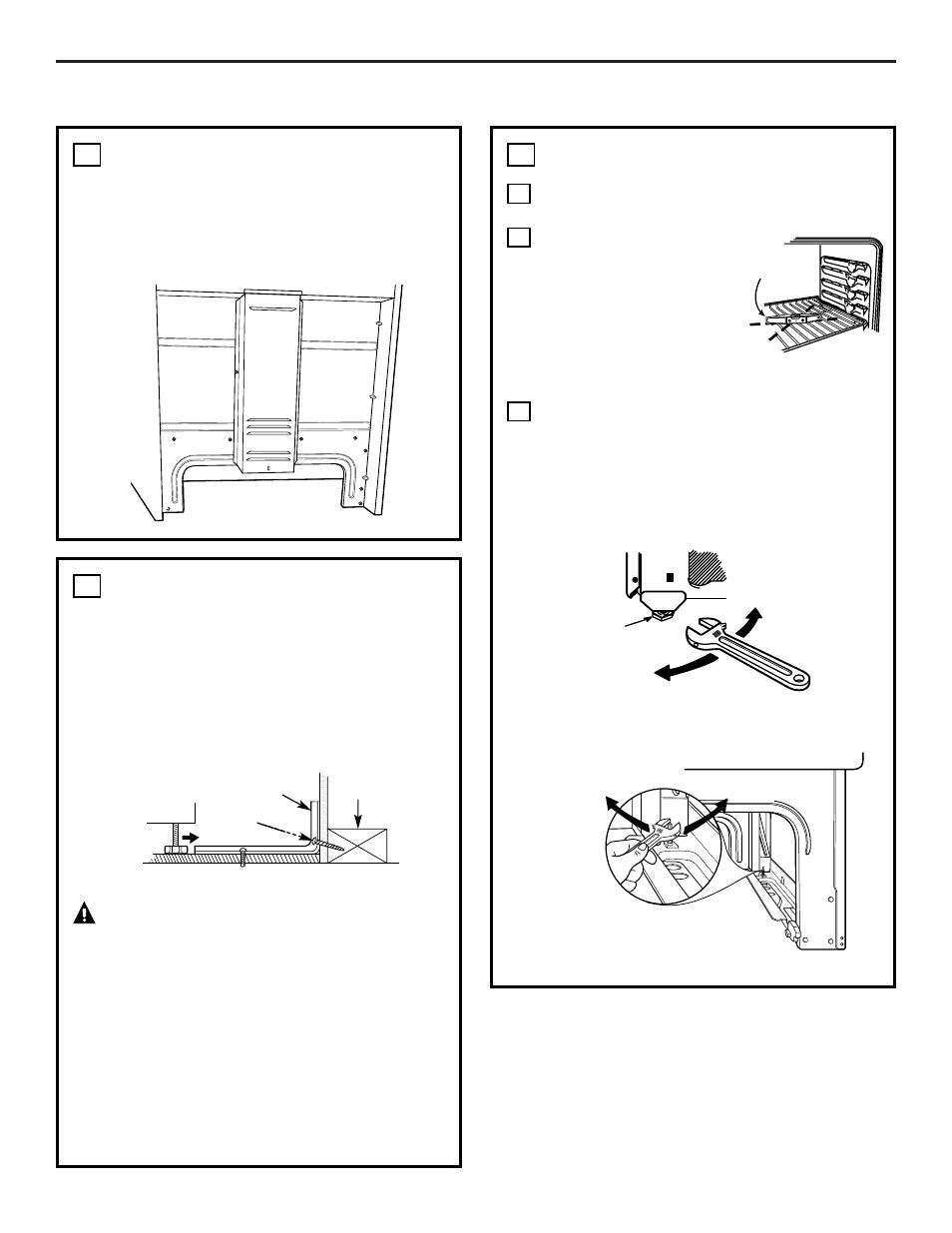

Installation Instructions
INSTALL THE RANGE
ANTI-TIP DEVICE INSTALLATION
An Anti-Tip bracket is supplied with
instructions for installation in a variety of
locations. The instructions include all
necessary information to complete the
installation. Read the Safety Instructions
and the instructions that fit your situation
before beginning installation.
WARNING:
• Range must be secured by Anti-Tip bracket
supplied.
• If the Anti-Tip device supplied with the
range does not fit this application, use the
universal Anti-Tip device WB2X7909.
• See instructions to install (supplied with bracket).
• Unless properly installed, the range could
be tipped by stepping or sitting on the door.
Injury may result from spilled hot liquids
or from the range itself.
9
Typical installation of anti-tip bracket attachment to wall
Bracket
Screw must
enter wood
or metal
Wall plate
REPLACE THE WIRE COVER
Replace the wire cover on the range back
by sliding its right edge under the retaining
tab and replacing the two screws removed
earlier. Make sure that no wires are pinched
between the cover and the range back.
8
LEVEL THE RANGE
Install the oven shelves in the oven and
position the range where it will be installed.
Check for levelness by
placing a spirit level or a
cup, partially filled with
water, on one of the
oven shelves. If using a
spirit level, take two
readings—with the level
placed diagonally first in one direction
and then the other.
On all models except warming drawer
models, remove the storage drawer,
broiler drawer or kick panel. The front
leveling legs can be adjusted from the
bottom and the rear legs can be adjusted
from the top. (For warming drawer
models, see Step D.)
C
B
A
10
Leg
leveler
Lower
range
Raise
range
Front leveling legs
(on some models)
Rear leveling legs
(on some models)
Lower
range
Raise
range
Spirit level
