Connecting to a TV set
Connections
-10-
Notes:

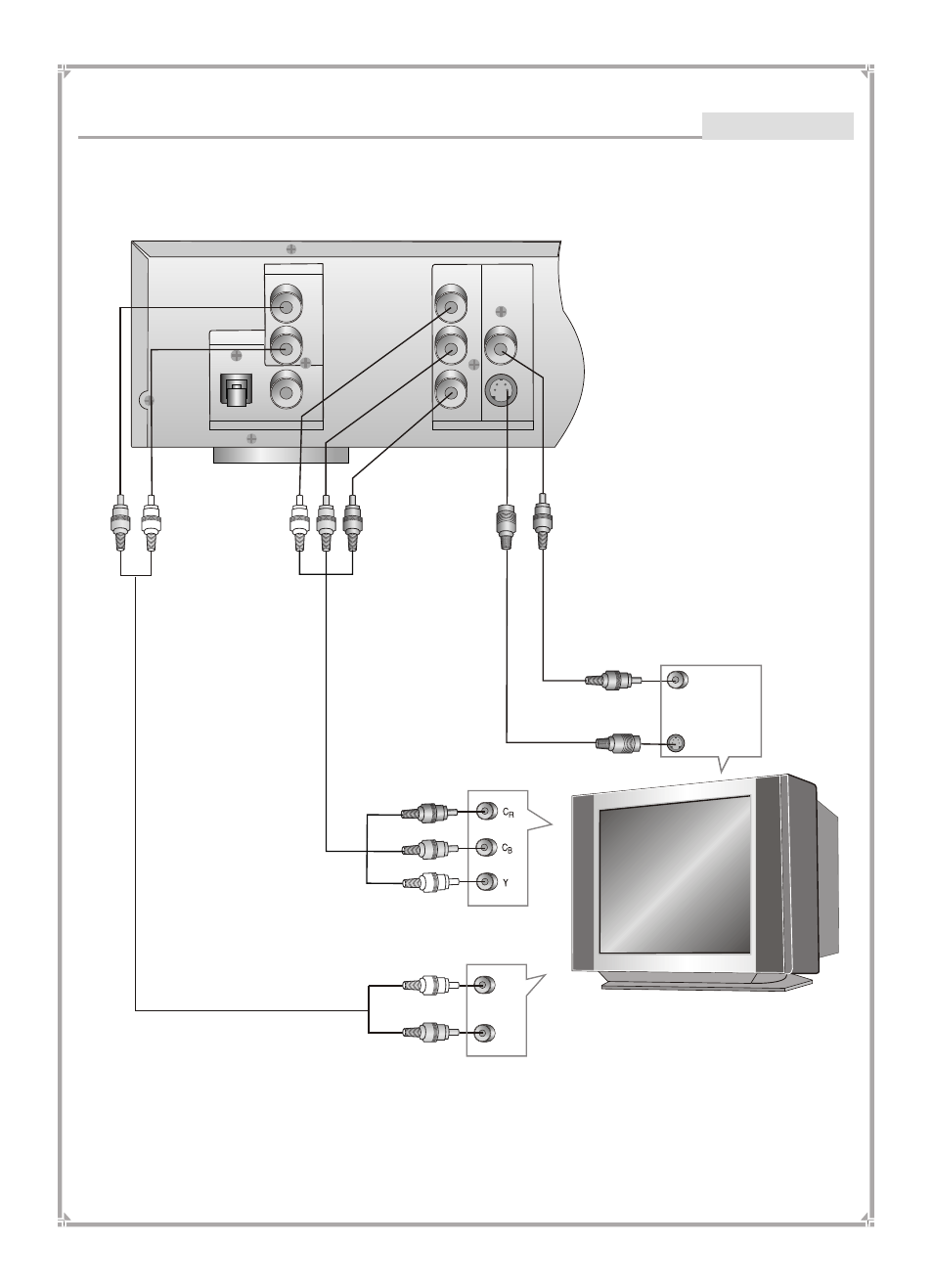

There are three ways of connecting the player's AV output to the TV set:
1. S-video cord and audio cable.
2. Composite video cord and audio cable.
3. Component video cord and audio cable.
AUDIO IN
L
R
VIDEO IN
YELLOW
WHITE
RED
VIDEO IN
VIDEO
S-VIDEO
Component video
