ITEM
PART NO.
QTY.
DESCRIPTION
1
034339
1
BARBED ELBOW 90 3/8 NPT X 5/8
2
** 055934D
1
CLAMP VINYL 1.06 X .406 Z (MOUNTED TO ALTERNATOR TO HOLD # 5 IN PLACE)
3
057822
4
CLAMP HOSE #8 .53 - 1.00
4
084918C
1
HEATER ENGINE 1800W 120V
* 084918D
1
HEATER ENGINE 2000W 240V
5
050967
1
HOSE 5/8 ID RIA 250F (36")
6
050967
1
HOSE 5/8 ID RIA 250F (16")
7
053660
1
BARBED STRAIGHT 1/4 NPT X 5/8
8
084427
1
BRACKET HEATER W/WELDNUTS
10
022097
4
WASHER LOCK M6-1/4
11
022473
4
WASHER FLAT 1/4 ZINC
12
049813
2
NUT HEX M6 X 1.0 G8 YEL CHR
13
042568
4
SCREW HHC M6-1.0 X 20 G8.8
14
077043E
1
FLEXIBLE CONDUIT 1" BLACK (15")
15 **
077043A
1
CONDUIT FLEX .38 ID (42") (USED ON HEATER WIRE HARNESS)
077043A
CONDUIT FLEX .38 ID (18") (GUARDIAN)
* USED ON "R" VOLTAGE GENERATORS ONLY
** NOT SHOWN
13
10
11
8
TO ENGINE
BLOCK
6
14
3
1
TO THERMOSTAT
5
HOUSING
3
13
11
10
12
3
7
3
4
46
Generac
®
Power Systems, Inc.
Section 7 — Exploded Views and Parts Lists
(Model Nos. 004373-3 & 004626-2) Guardian Liquid-cooled 40 kW Generators

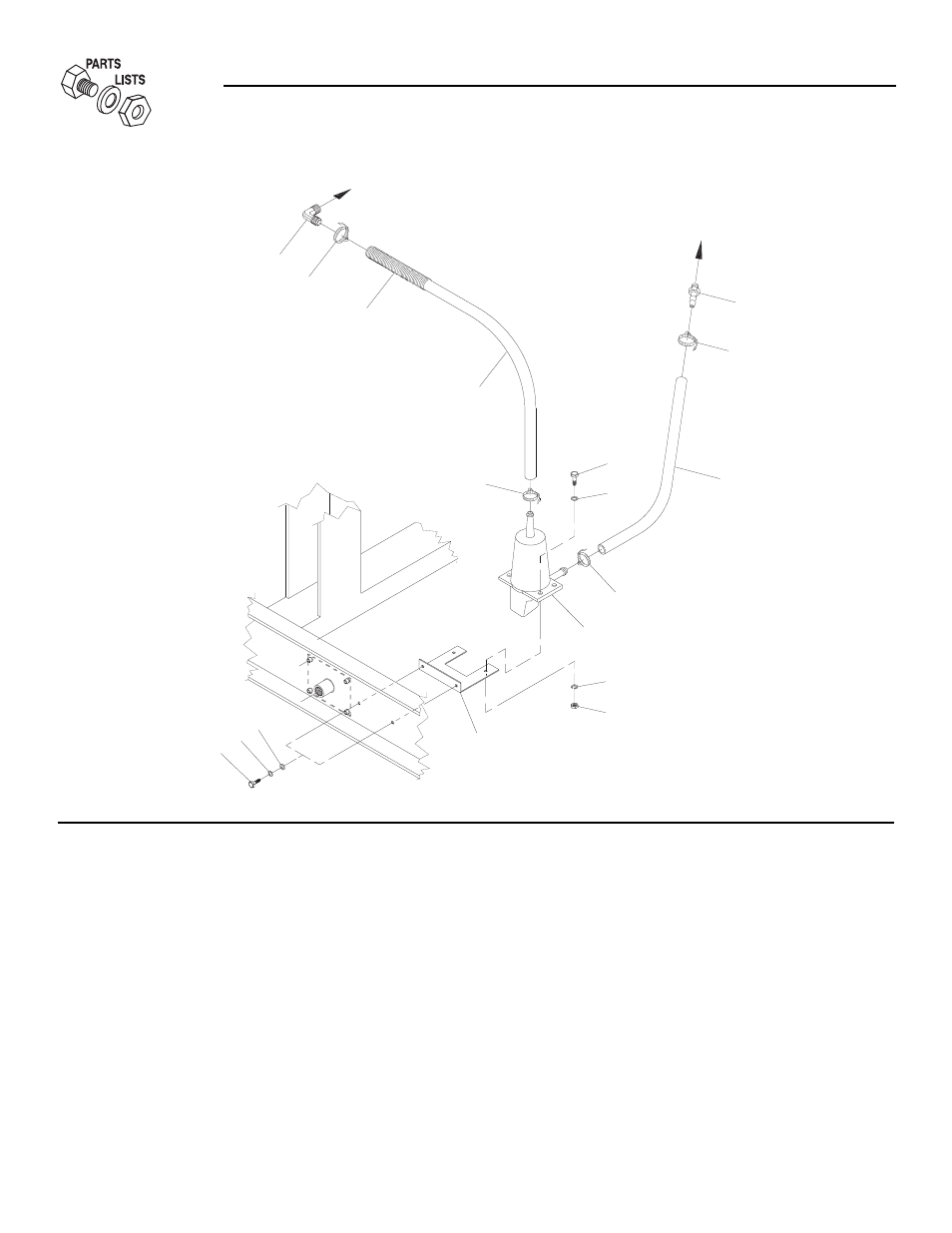

Engine Coolant Heater – Drawing No. 0E0539
