Connections (Continued)
Optional, Preferred TV Connections
otes
The connections described below are for DVD play-
back ONLY.
When using the COMPONENT/PROGRESSIVE
SCAN VIDEO OUT jacks, set the video output
select switch to COMPONENT. When using the
S-VIDEO OUT jack, set the video output select
switch to S-VIDEO.
S-Video connection
11 Connect the S-VIDEO OUT jack on the DVD+VCR
to the S-Video in jack on your TV using the optional
S-Video cable (S).
2 2 Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on
your TV using the supplied audio cables (A2).
Component Video (Color Stream ® ) connection
11 Connect the COMPONENT/PROGRESSIVE SCAN
VIDEO OUT jacks on the DVD+VCR Player to the
corresponding in jacks on your TV using an optional
Y Pb P
r cable (C).
2 2 Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on
your TV (A2) using the supplied audio cables.
Progressive Scan (ColorStream ® pro) connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the
DVD+VCR’s progressive scan output for the highest
video resolution possible.
If your TV does not accept the Progressive Scan for-
mat, the picture will appear scrambled if you select
Progressive Scan output from the DVD+VCR.
11 Connect the COMPONENT/PROGRESSIVE SCAN
VIDEO OUT jacks on the DVD+VCR to the
corresponding in jacks on your TV using an optional
Y Pb Pr cable (C).
2 2 Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on
your TV (A2) using the supplied audio cables.
otes
– Set Progressive to “On” in the Setup menu, see page
19.
– Progressive scan does not function simultaneously
with the analog video connections (yellow VIDEO
OUT jack).
ote
If your TV has an S-video input, connect the DVD+VCR
with an S-video cable. When using an S-video cable, do
not connect the yellow video cable.
L R Y Pb Pr
COMPONENT VIDEO INPUT AUDIO INPUT
S-VIDEO
INPUT
S A2 C

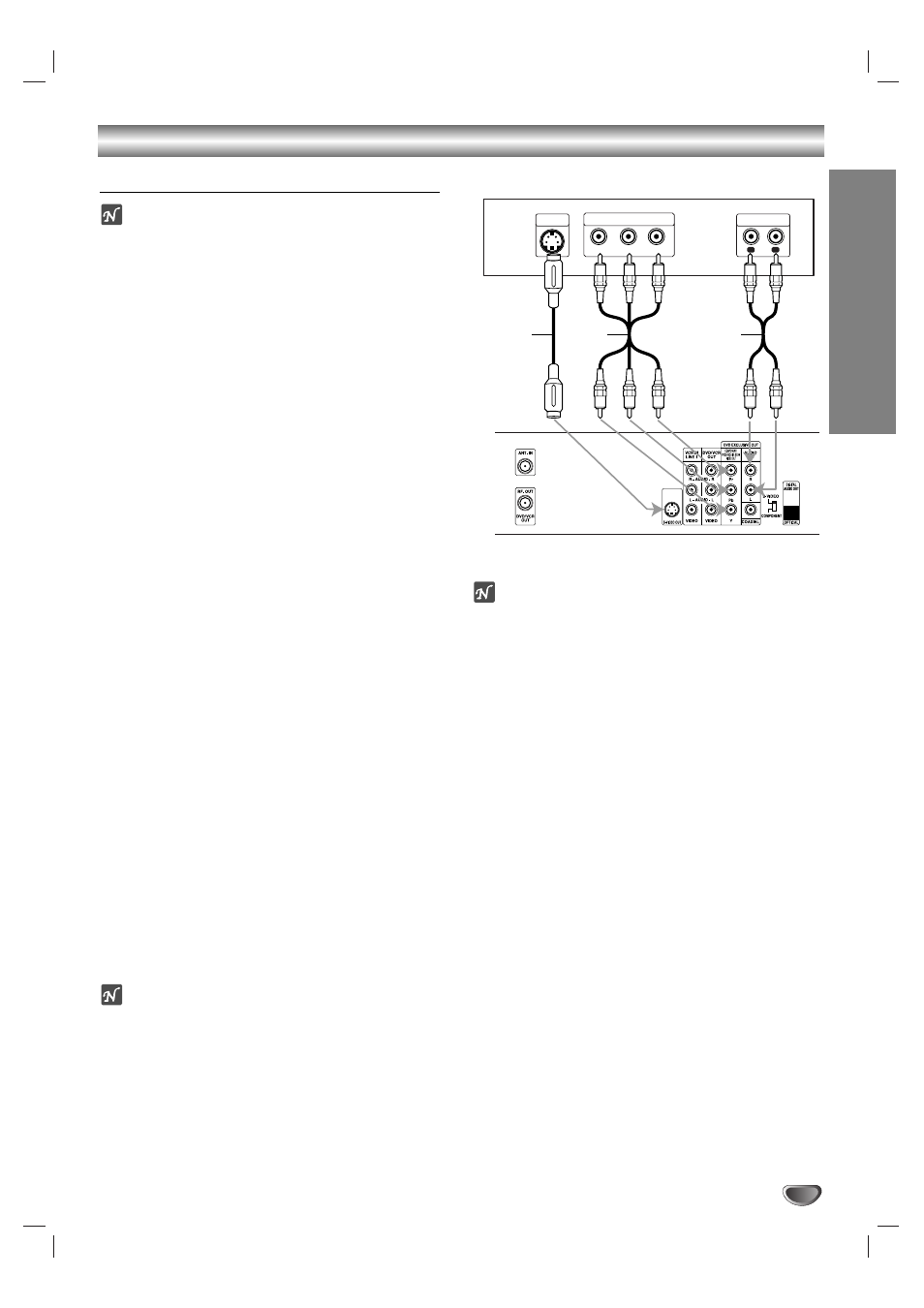

DVD+VCR Connections Panel
TV Connections Panel
