Connections
ips
For instructions on the various ways to connect the
DVD+VCR to your TV and other equipment, please refer to
pages 11-14.
Please refer to the manuals of your TV, VCR, stereo system
or other devices as necessary to make the best connec-
tions.
For better sound reproduction, connect the DVD+VCR’s
DVD/VCR AUDIO OUT jack to the audio in jacks of your
amplifier, receiver, stereo or audio/video equipment. See
Optional, Preferred TV Connections on pages 13-14.
Caution
Make sure the DVD+VCR is connected directly to the TV.
Tune the TV to the correct video input channel.
Do not connect the DVD+VCR’s DVD/VCR AUDIO OUT
jack to the phono in jack (record deck) of your audio
system.
Do not connect your DVD+VCR via your VCR. The DVD
image could be distorted by the copy protection system.

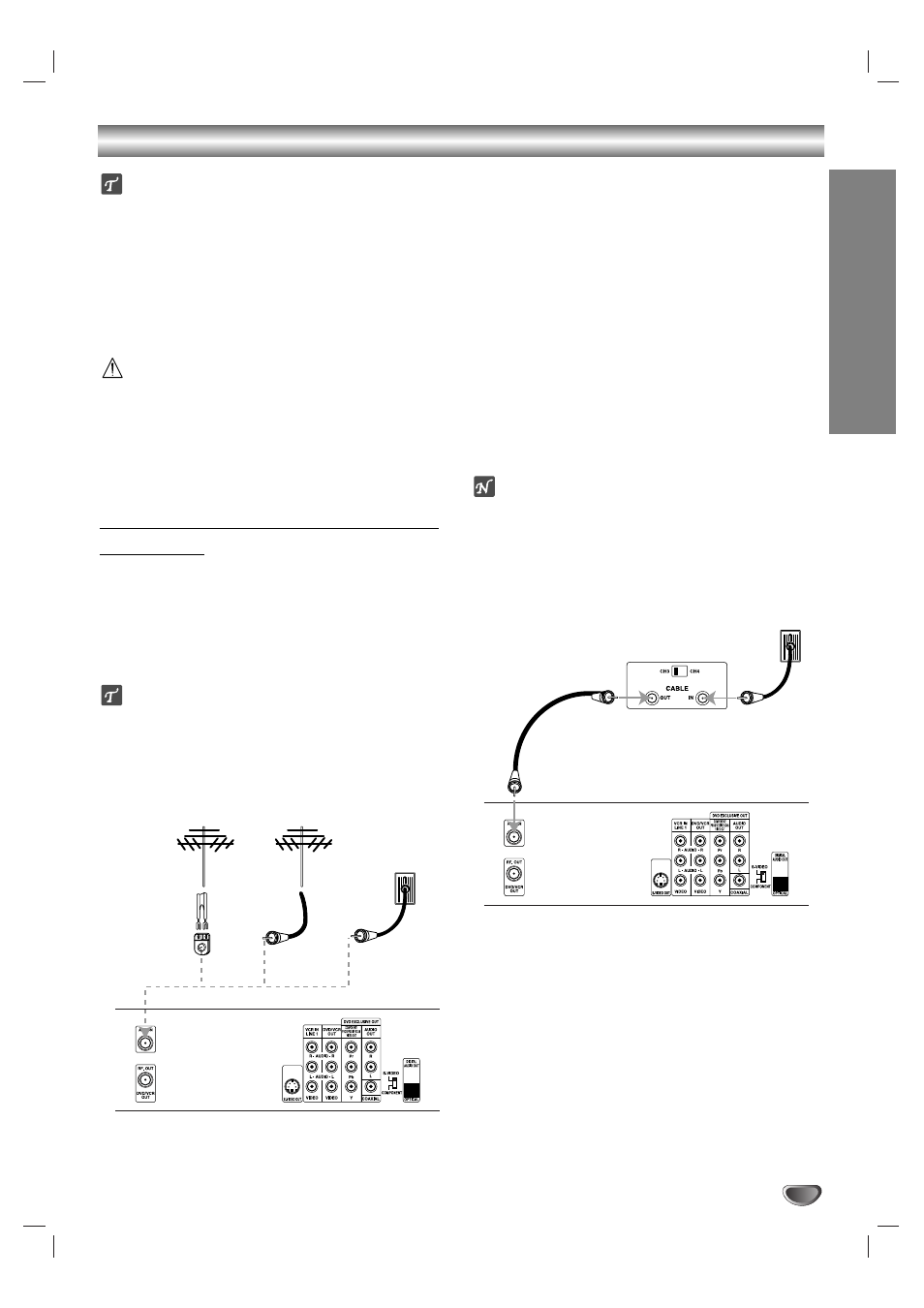

Connecting Antenna/Cable TV to
DVD+VCR
11 Disconnect the antenna leads from the rear of your
TV.
2 2 Identify the type of cable from your antenna. If it is
a round cable as illustrated, it is a 75 ohm coaxial
antenna cable. This cable will connect directly to
the jack marked ANT.IN on your DVD+VCR.
ip
If your antenna lead wire is a flat type antenna cable,
connect it to a 300-ohm to 75-ohm Antenna Adapter
(not supplied), and slip the Adapter onto the ANT.IN
jack. The Adapter does not screw on to the DVD+VCR,
it just slips over the jack.
Without Cable Box
If your cable wire is connected to your TV without a converter
or descrambler box, unscrew the wire from your TV and attach
it to the ANT.IN jack on the DVD+VCR. Use the supplied coaxi-
al cable to connect between the DVD+VCR’s RF.OUT jack and
the 75 ohm antenna input jack on the TV. With this connection,
you can receive all midband, super band, and hyperband chan-
nels.
With Cable Box
If a cable box is required in your cable system, follow the
instruction below:
The cable hookup permits both TV and DVD+VCR operation.
To view or record CATV channels
1 Tune the TV to the DVD+VCR output channel (CH 3 or 4).
2 Set the DVD+VCR channel selector to the output channel of
the cable box by using the CH/TRK (v/V) or number (0-9) of
your DVD+VCR. (Example: CH3)
3 Select the channel to view at the cable box.
otes
With this connection, you CANNOT record one program
while viewing another.
If you are using a cable box to tune channels, it is not nec-
essary to do Auto Channel Programming as indicated on
page 16.
Antenna Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adapter
(Not supplied)
Cable TV
Wall Jack
OR OR
DVD+VCR Connections Panel
Cable TV
Wall Jack
Back Panel of
Typical Cable Box
DVD+VCR Connections Panel
