CONNECTIONS
45
TV With Audio/Video Jacks
This connection assumes:
•
You are connecting an antenna, cable, or cable box system.
•
Your television has audio/video jacks.
This connection provides:
•
Mono sound playback from VCR.
•
Record one channel while watching another (except when
using a cable box for all channels).
To use this connection, you must have:
•
(1) coaxial cable for cable/antenna connection; (2) for
cable box
•
(2) audio/video cables
To connect:
1.

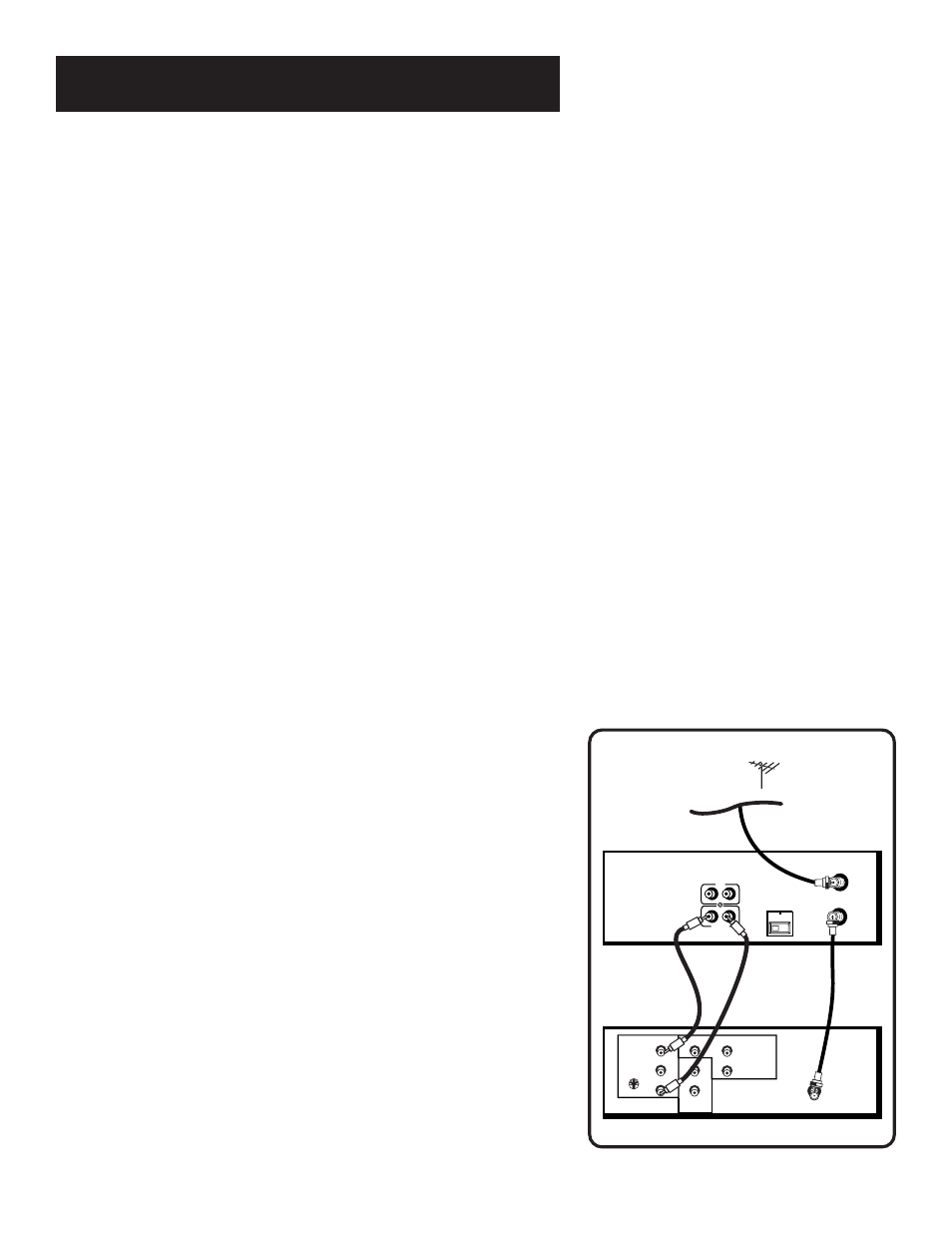

Connect cables as shown.
2.
Return to
First Things First, then follow the steps.
Using This Connection
Tune your TV to its video input channel.
Auto TV/VCR setting:
•
Set the Auto TV/VCR feature to OFF. Use of TV•VCR button is
not required.
To play a tape:
1.
Insert a tape.
2.
If necessary, press PLAY.
To record one program and watch another:
1.
Begin recording a program using one of the recording
options.
2.
Select a different channel on the TV.
VCR
TV
INPUT 1
VIDEO
R
L/MONO
S-VIDEO
AUDIO
OUTPUT
R
L
INPUT 2
VIDEO
R
L/MONO
CABLE/
ANTENNA
3 CH. 4
ANT.IN
RF OUT
OUT
VIDEO
IN
AUDIO
CABLE, CABLE BOX, OR ANTENNA
