H3118 Tile Saw
-15-
45º Miter Cutting
Diagonal cuts of 45º can be made on rectangular
tiles using the supplied miter gauge.

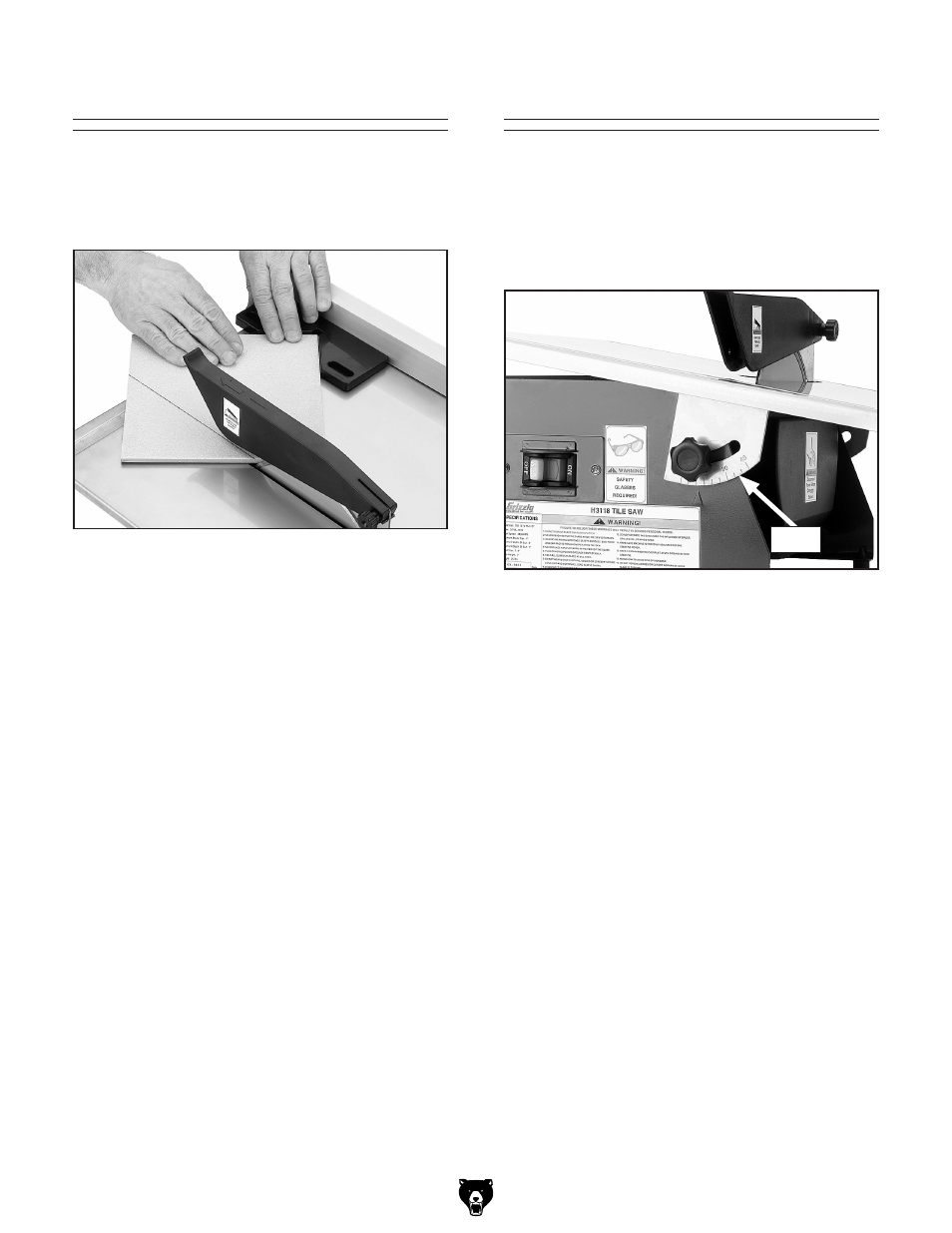

Figure 10
shows a typical setup for cutting the corner off of
a square tile.
Figure 10. Diagonal cutting with the miter gauge.
Bevel Cutting
The saw table can be tilted up to 45º to accommo-
date bevel cutting. Loosen the knob on the front
of the saw to adjust the saw table, as shown in
Figure 11. Use the scale on the front of the saw to
set the desired table tilt angle. Retighten the knob
to secure the table.
Figure 11. Tilting the table for bevel cutting.
Scale
