Assembly – Grizzly H3118 User Manual
Page 13
H3118 Tile Saw
-11-
Assembly

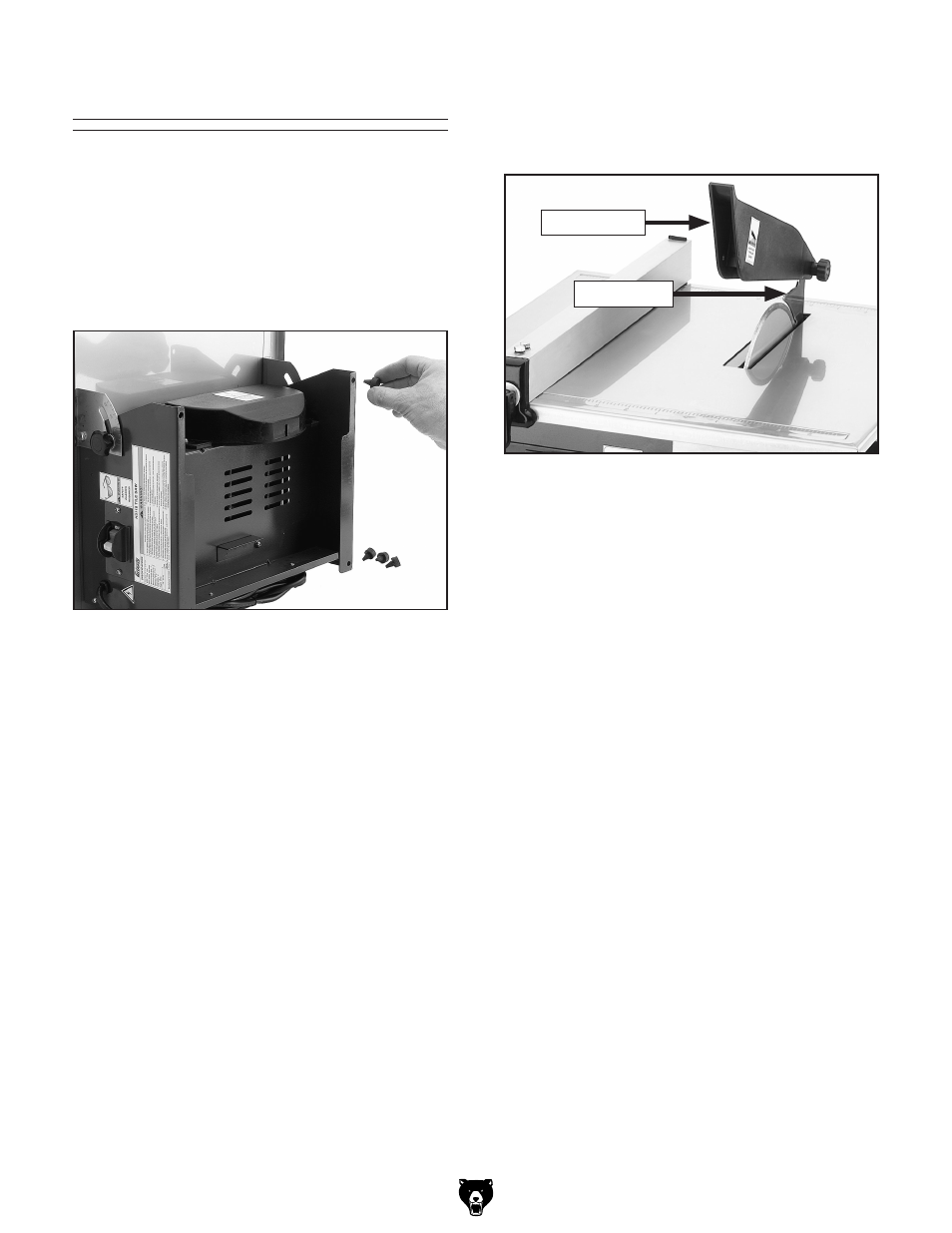

Figure 4. Attaching the rubber feet
The Model H3118 comes pre-assembled from the
factory except for the blade guard and the four
rubber feet that need to be inserted into the base,
as shown in
Figure 4. Dip the rubber feet into
soapy water to ease the installation.
Note: Do not twist the feet during installation.
They could break. Use only a wiggling action.
To attach the blade guard, loosen the knob on
the blade guard assembly. Mount the blade guard
to the riving knife behind the saw blade and re-
tighten the knob, as shown in
Figure 5.
Figure 5. Mounting the blade guard to the riving
knife.
Blade Guard
Riving Knife
