Design Guide
8

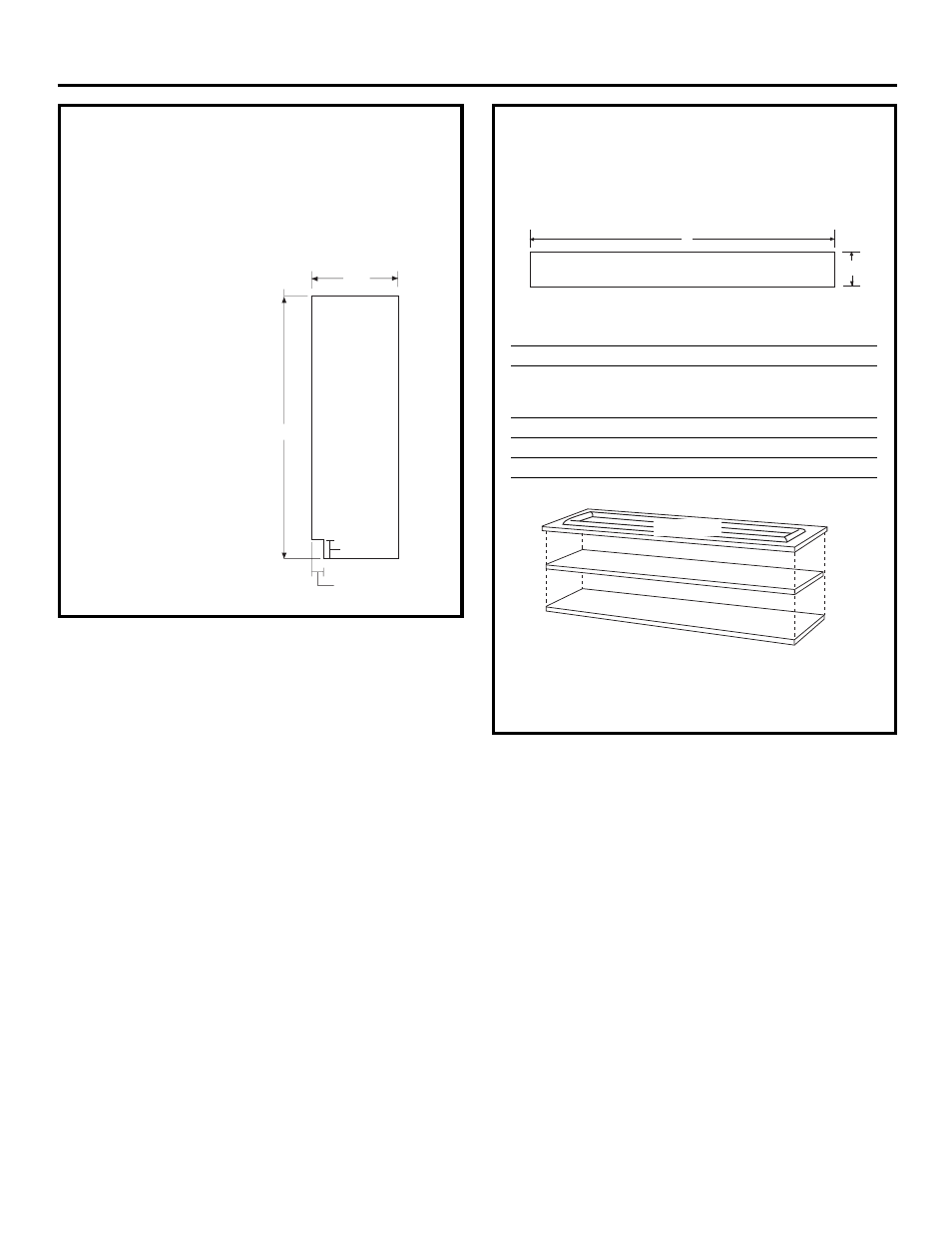

SIDE PANELS
Side panels must be used whenever the sides of the
refrigerator will be exposed. The 1/4" side panels will
slip into the side case trim. Order the side panels
from the cabinet manufacturer.
ZUG2 GRILLE PANEL DIMENSIONS
The ZUG2 unified grille panel kit provides for the
installation of a framed or overlay grille panel.
* Depending on
installation height.
Assemble the overlay panels in the same manner as
the door and drawer panels.
*84"
2-9/16"
24"
*3" to 4"
Framed Panel Dimensions
A (Width) B (Height)
1/4" Framed Panel 69-7/8" 8-7/8"
Overlay Panel Dimensions
A (Width) B (Height)
1/4" Backer Panel 69-7/8" 8-7/8"
0.10" Spacer Panel 68-1/2" 7-5/8"
3/4" Overlay Panel 70-1/8" 9"
A
B Grille Panel
Spacer Panel
Backer Panel
Overlay Panel
