7

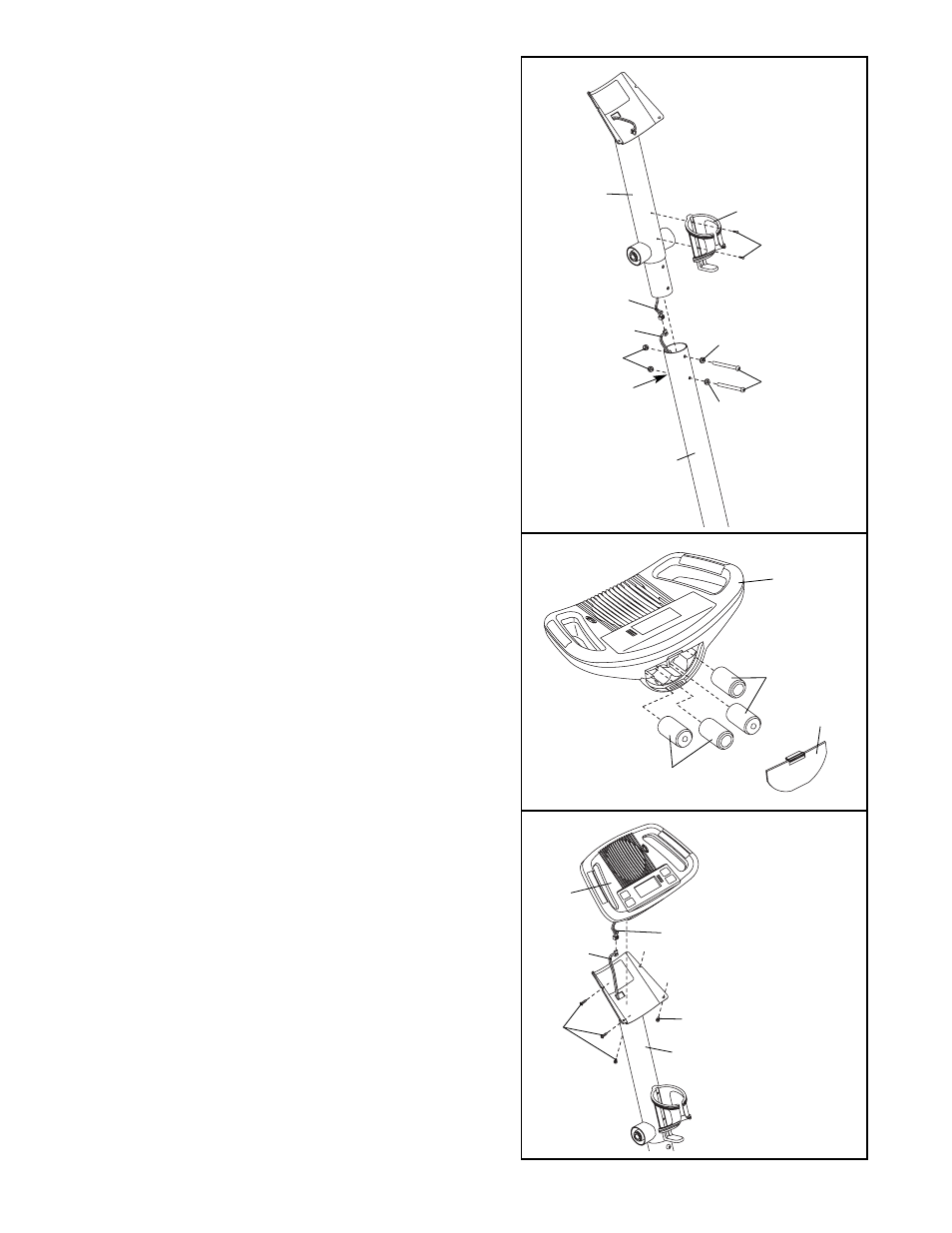

6. While another person holds the Console (5) near the
Upright (2), connect the wire harness on the Console
to the Upper Wire Harness (86). Insert the excess
wire harness down into the Upright. Next, attach the
Console to the Upright with four M4 x 16mm Screws
(66). Be careful to avoid pinching the wire har-
nesses.
5
86
66
66
2
Wire
Harness
6
5. The Console (5) requires four D batteries (not includ-
ed); alkaline batteries are recommended. Press the
tab on the battery door and remove the battery door.
Insert four batteries into the Console as shown. Make
sure that the batteries are oriented as shown by
the markings on the battery door. Reattach the bat-
tery door.
5
5
Batteries
Batteries
Battery
Cover
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step
4
2
46
67
15
83
83
95
86
76
72
Hexagonal
Holes
4. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (86) to
the Extension Wire Harness (95).
Next, insert the Upright (2) into the Mast (15); make
sure that the Upright is oriented as shown. Attach
the Upright with two M8 x 72mm Button Bolts (67),
two M8 Split Washers (83), and two M8 Nylon
Locknuts (46). Make sure that the Wire Harnesses
(86, 95) do not get pinched and damaged during
this step. Do not tighten the Button Bolts yet.
Attach the Water Bottle Holder (72) to the Upright (2)
with two M4 x 22mm Screws (76).
Make sure the wire
harnesses do not
get pinched and
damaged during
this step
