5
M10 x 75mm Carriage Bolt (34)–2 M10 x 83mm Button Screw (63)–2
M4 x 16mm
Screw (66)–8
M4 x 22mm
Screw (76)–2
M8 x 25mm Patch
Screw (22)–2
M8 x 16mm Button
Screw (84)–4
M8 x 72mm Button Bolt (67)–2
M10 Nylon
Locknut (29)–4
M8 Nylon
Locknut (46)–6
M10 Split
Washer (94)–2
M8 Washer
(53)–6
Wave Washer
(91)–2
M8 Split
Washer (83)–2
M8 x 45mm Button
Bolt (50)–4
M10 x 59mm Bolt Set (27)–2 M10 x 45mm Button Bolt (33)–2
Cover Screw
(82)–4
M8 Jamnut
(101)–4
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

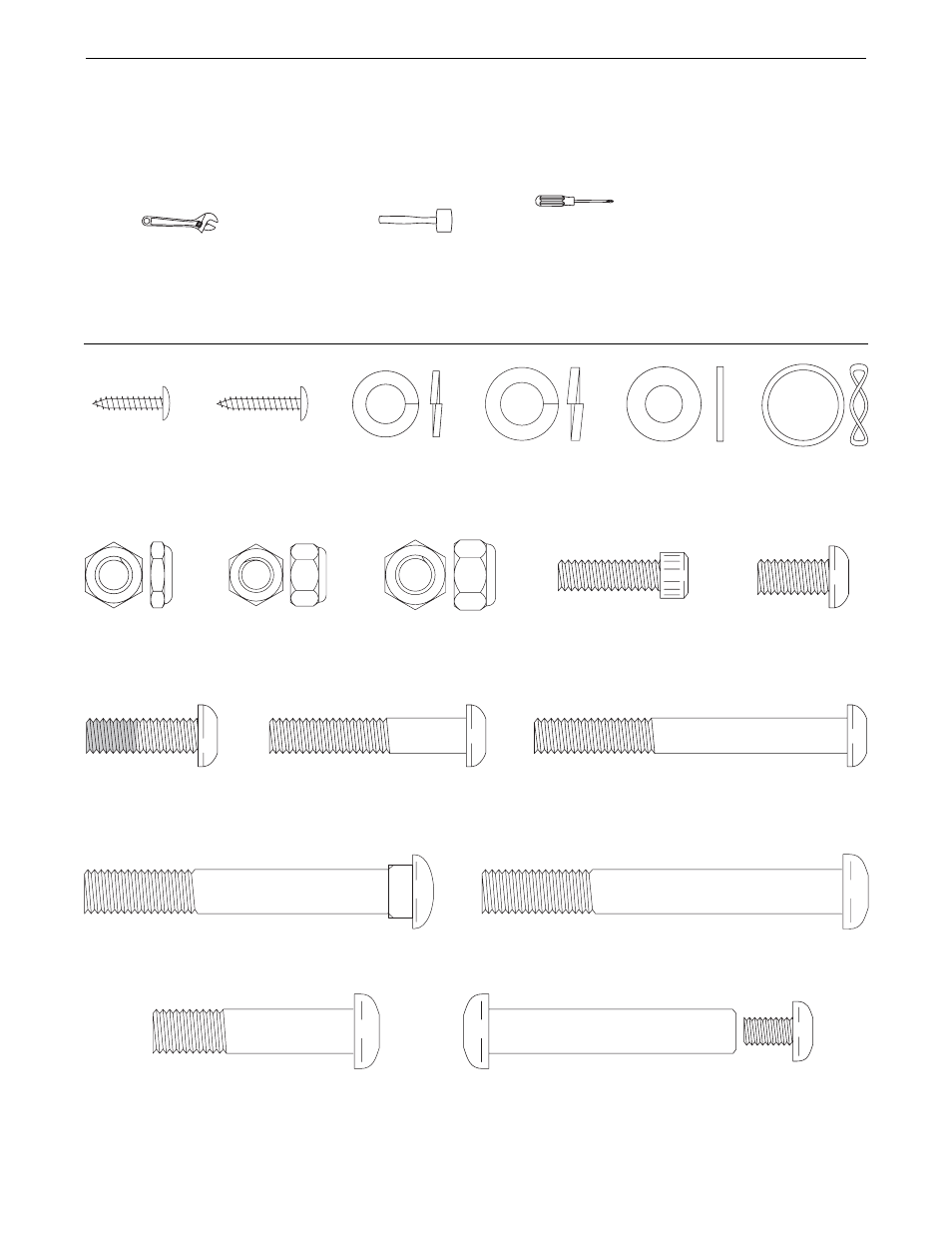

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled.
If a part is not in the hardware kit, check to see if it has been preassembled.
