Page 4
305mm x 305mm
Velocity
(m/s)
Pressure
Drop (Pa)
2.4
5
5.1
22
7.8
52
10.3
92
12.9
145
15.4
209
17.7
274
20.8
379
610mm x 610mm
Velocity
(m/s)
Pressure
Drop (Pa)
2.5
3
5
10
7.7
22
10.3
40
12.8
62
15.5
92
17.9
122
20.8
167
914mm x 914mm
Velocity
(m/s)
Pressure
Drop (Pa)
2.5
3
5.1
8
7.6
15
10.1
27
12.8
42
15.3
62
17.7
82
20.3
107
305mm x 1219mm
Velocity
(m/s)
Pressure
Drop (Pa)
2.5
3
5.1
10
7.7
25
10.3
42
12.9
67
15.7
100
18.7
140
20.9
174
1219mm x 305mm
Velocity
(m/s)
Pressure
Drop (Pa)
2.5
5
5.1
20
7.6
40
10.1
72
12.7
112
15.3
164
18
227
20.6
299

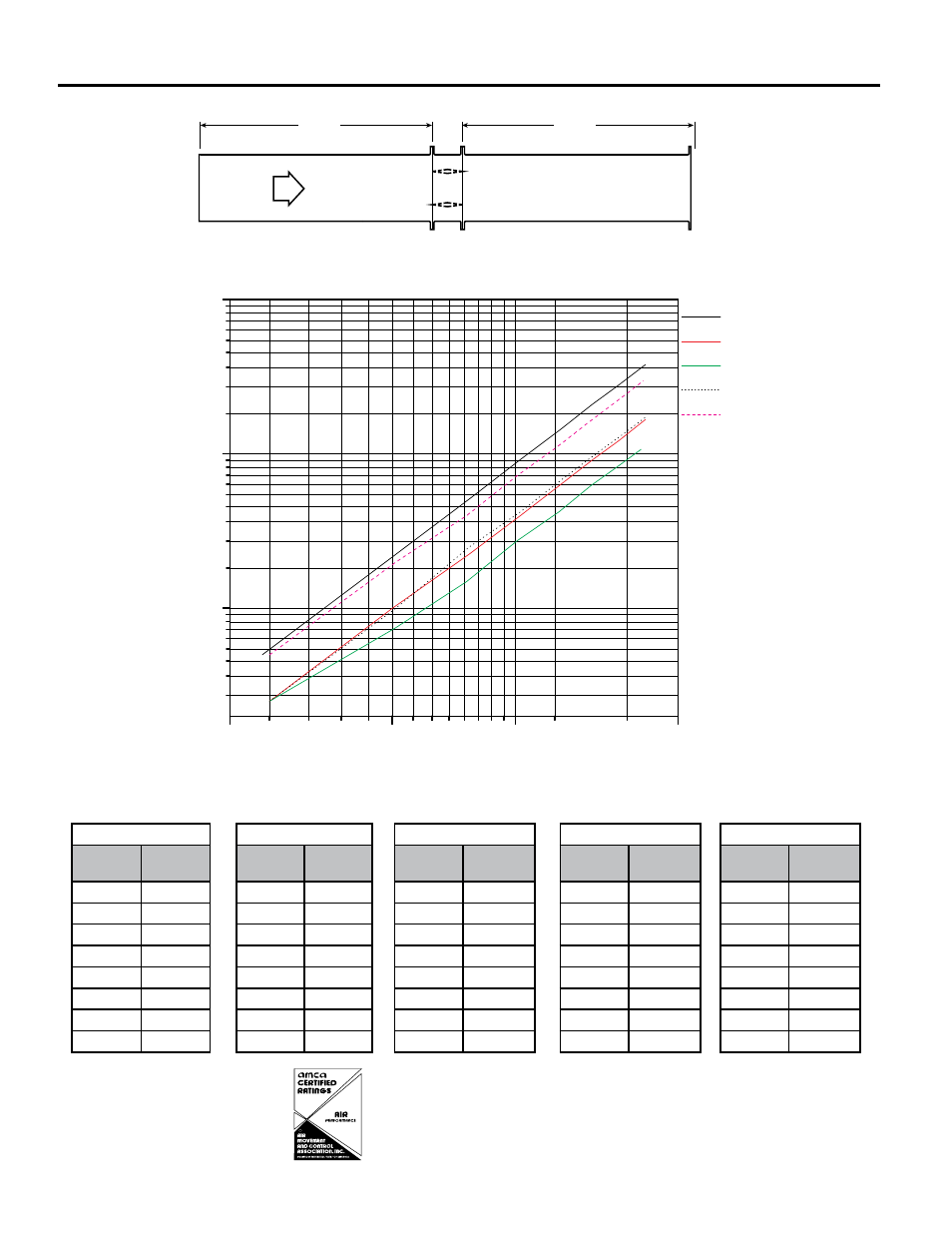

AMCA 5.3 Pressure Drop
FSD-M211
5D
6D
5D
D =
4 (W) (H)
3.14
Figure 5.3
Figure 5.2
Figure 5. 5
NNYNN
NNYNN
NNYNN
NNYNN
NNYNN
13&4463&%3011
"4$"-4
'"$&7&-0$*5:.&5&344&$0/%
".$"
7&-0$*5:7413&4463&%301
Y
Y
Y
Y
Y
R
Greenheck Kunshan Co. Ltd. and Greenheck Fan
Corporation certifies that the model FSD-M211 shown
herein is licensed to bear the AMCA Seal. The ratings
shown are based on tests and procedures performed
in accordance with AMCA Publication 511 and comply
with the requirements of the AMCA Certified Ratings
Programs. The AMCA Certified Ratings Seal applies to
air performance ratings only.
