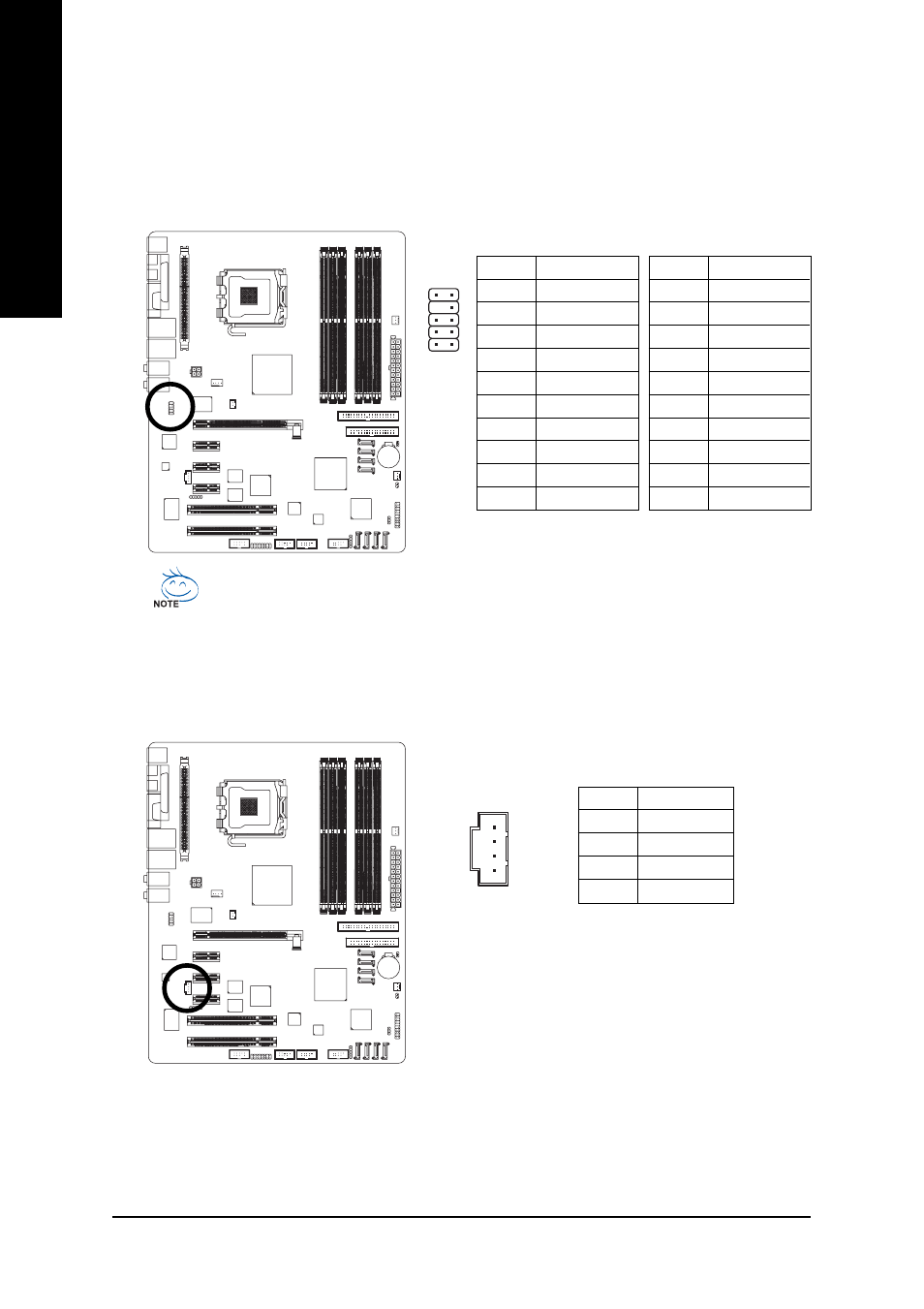

14) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
13) AZALIA_FP (Front Audio Panel Connector)
This connector is supported to connect HD(High Definition) Audio and AC'97 Audio. Check the pin
assignment carefully while you connect the audio panel cable, incorrect connection between the cable
and connector will make the device unable to work or even damage it. For optional audio panel cable,
please contact your local dealer.
1 2
9 10
Pin No. Definition
1 MIC2_L
2 GND
3 MIC2_R
4 -ACZ_DET
5 Line2_R
6 FSENSE1
7 FAUDIO_JD
8 No Pin
9 LINE2_L
10 FSENSE2
Pin No. Definition
1 MIC
2 GND
3 MIC Power
4 NC
5 Line Out (R)
6 NC
7 NC
8 No Pin
9 Line Out (L)
10 NC
HD Audio: AC'97 Audio:
HD Audio is the default setting for this connector. To enable AC'97 Audio, from BIOS settings,
set Front Panel Type under Integrated Peripherals to AC97.
