Dimensions and Installation Information (in inches)
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
† Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical Code requires that new
construction (not existing) utilize a 4-conductor connection to an electric range.

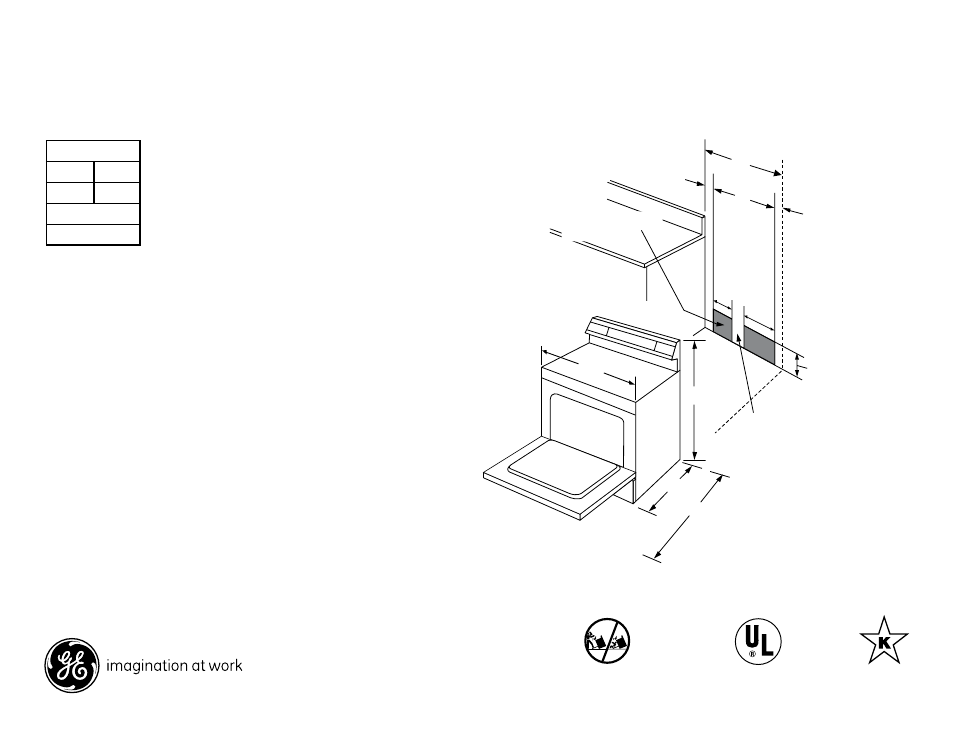

Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals
are not accessible after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow range to be installed
directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent
walls below countertops. To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow for possible extended, high-
heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
KW Rating
240V 13.7
208V 10.3
Breaker Size
40 Amps †
PB910SP
GE Profile ™ 30" Free-Standing Electric Range
Specification Revised 6/09 221013
30
25
29-7/8
A*
2-1/2
7-1/2
25-3/8
47-5/8
2-1/2
Acceptable electrical
outlet area
7
14-1/2
On models with baking or warming
drawers, electrical outlet must not
be in this area.
Dimension from wall to front of closed
oven door handle is 27-3/8 on models
PB750, PB900, PB910, PB920, PB969
and PHB925 and 27-3/4 on models
JBP89/84/81.
*A is 46-7/8 on models JBP89/84/81 and
46-1/2 on models PB750, PB900, PB910,
PB920, PB969 and PHB925
