Crathco
®
5000 Series Manual
Exploded View Model 5941
ITEM
NO.
QTY.
PART NUMBER
DESCRIPTION
1
1
W0210257
BASE ASSEMBLY
2
1
W0211232
FRAME ASSEMBLY
3
1
W0201346
EVAPAORATOR ASSY, 5311 & 5511
4
4
W0110013
STUD, VALVE NEW STYLE
6
1
W0450053
PULLEY, 10" W/ 1" BORE
7
1
W0450209
V-BELT 3L460 X 3/8" FHP
8
1
W0520094
Hopper Cover Single
9
1
W0340201
Shaft Seal Set
10
1
W0572458
Electrical Box Assy. 5941
13
1
W0572452
Electrical Box Cover
14
1
W0480450
Valve Body
15
1
W0340055
Valve Square Cut O-Ring
17
1
W0480445
VALVE HANDLE
19
1
W0340058
Barrell Gasket
20
1
W0520097
Panel, Rear 5941
21
1
W0520107
Left Side Panel
22
1
W0520065
Right Side Panel
23
1
W0430089
Dasher, Scraper
24
2
W1431084
Scraper Blade, New Style
25
1
W0430028
STATOR WELDMENT PICKLED
26
1
W0430032
STATOR FLANGE BEARING
27
1
W0430024
REAR STATOR BEARING
28
3
W0340022
Plunger O'Rings
29
1
W0472062
Pan,Drip Form X-LG
30
1
W0631632
Drip Tray
31
1
W0472074
Insert, Drip Pan
32
1
W0472064
Drip Pan Bracket
33
1
W0480462
Plunger, Standard Product 5000
34
2
W0470015
Spinner, DMC180
35
1
W0210258
SPINNER BRKT ASSEMBLY, LEFT
36
4
W0630711
Valve Knob
17
1
2
3
4
4
6
7
8
9
10
13
14
15
19
20
21
22
33
28
29
30
31
32
23
25
24
26
27

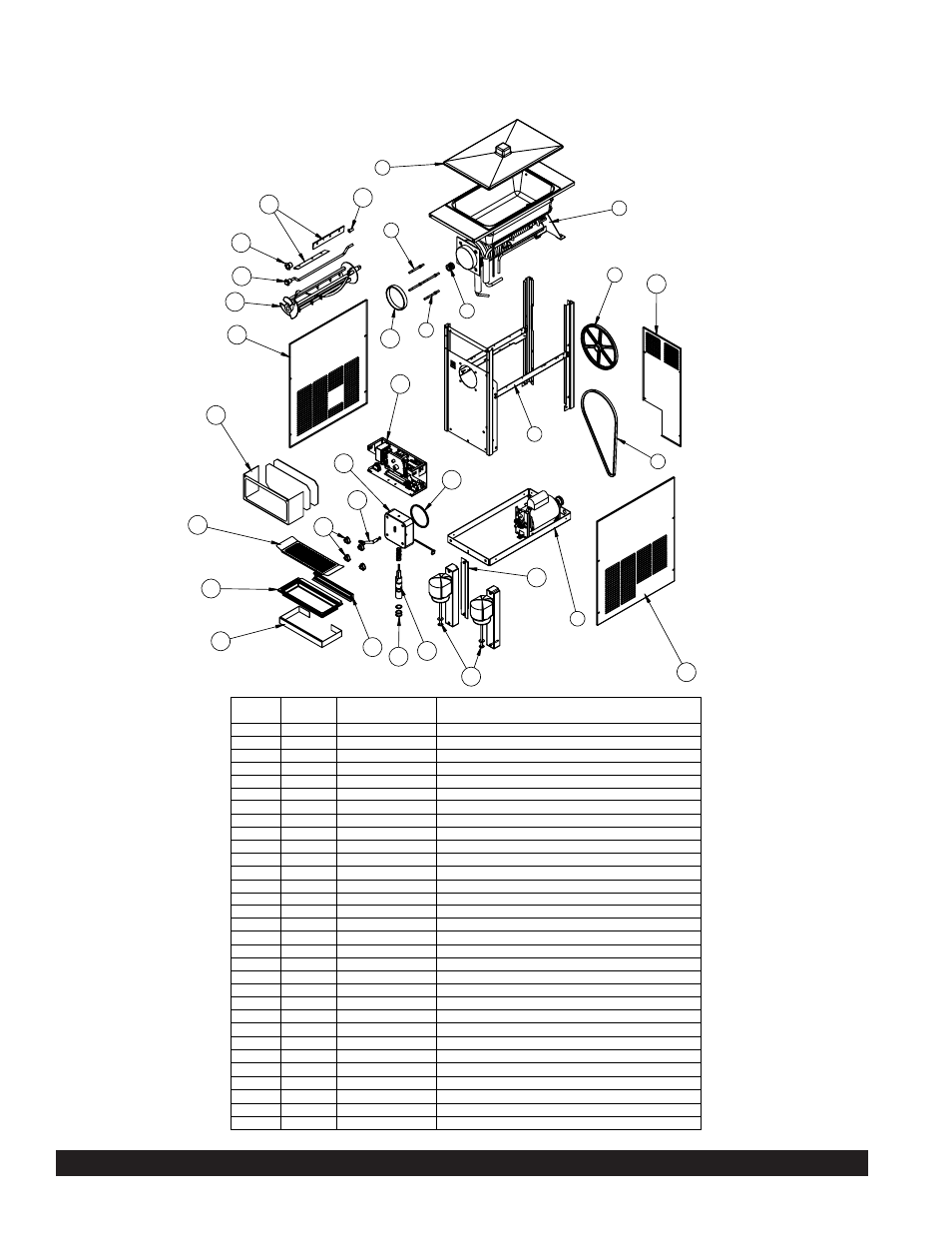

5941 EXPLODED VIEW
