Installation – Grizzly Double Mini On/Off h8245 User Manual
Page 2

-2-
h8245 double Mini on/oFF switch
installation

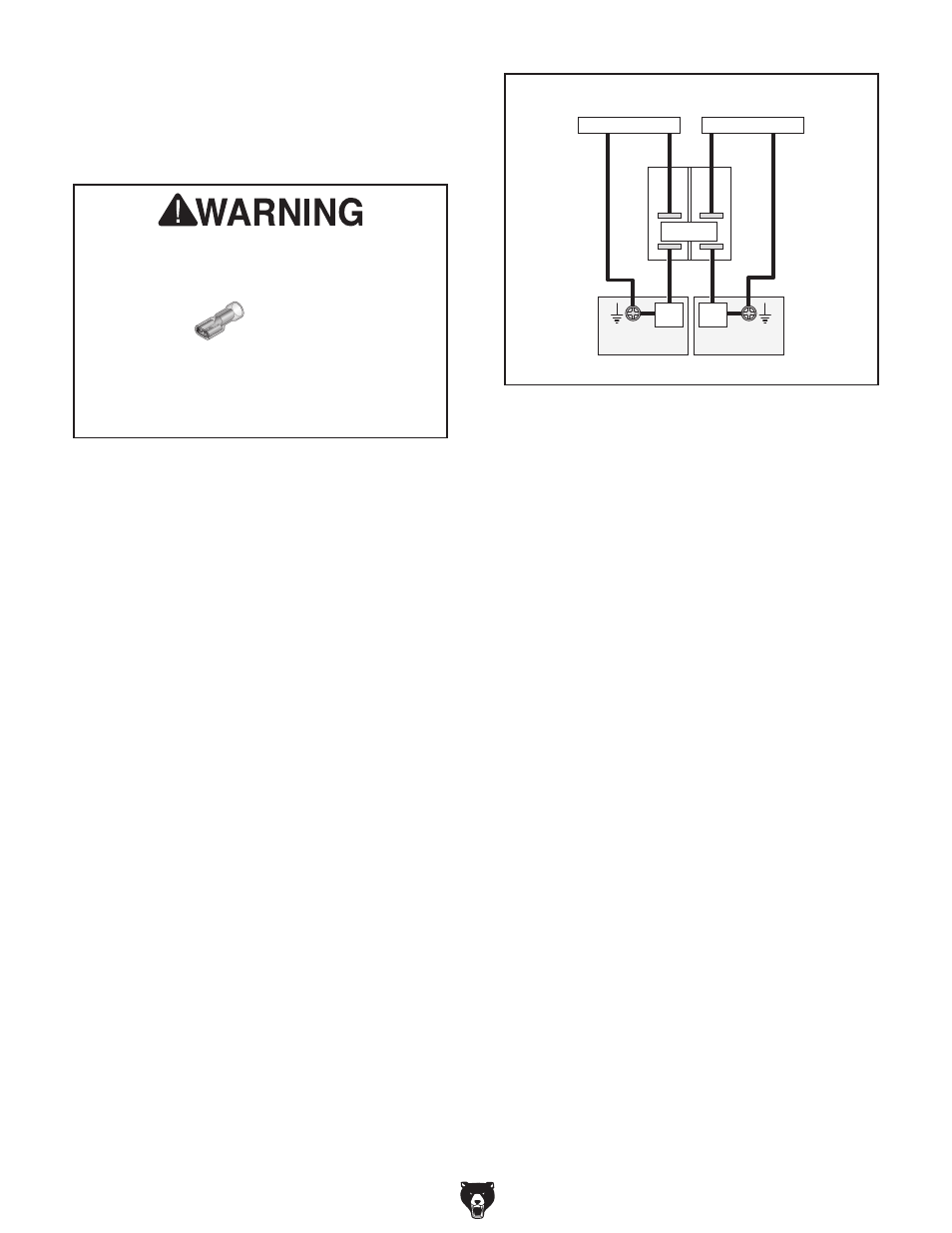

When installing the h8245 switch, use the wiring
diagram in
figure 2 to ensure proper wire con-
nections.
Hot
In
Hot
Out
ON
(|)
OFF
(O)
ON
(|)
OFF
(O)
HY39-2
Rear View of Switch
Component 1
Verified
Ground*
Verified
Ground*
Component 2
Power Source 1
Power Source 2
figure 2. h8245 wiring diagram.
this switch is intended to be connected to
stranded wire with insulated quick-discon-
nect crimp-type female wire terminals hav-
ing a
1
⁄
4
" tab.
All crimps must be "pull-checked" to ensure
that wires are securely crimped and will
not fall out with moderate tension or when
exposed to normal operation vibration.
*the component Must be connected to a verified
ground. in the event of certain malfunctions or
breakdowns, grounding reduces the risk of elec-
tric shock by providing a path of least resistance
for electric current.
