15
Care and Maintenance
(continued)
To reinstall the top spray arm:
1. Return the top spray arm to its installed
position.
2. Return the locking nut to its installed
position and turn it 1/8 turn clockwise.
3. Return the top basket to the top basket roller
guides.
To remove the bottom spray arm:
1. Remove the empty lower basket from the
dishwasher tub.
2. Grasp and lift the bottom spray arm as
shown in Figure 26.
To reinstall the bottom spray arm:
1. Return the bottom spray arm to its installed
position and press it so that it snaps into
place.
2. Return the lower basket to its installed
position.
3. Look for obstruction in the spray nozzles.
4. If the spray nozzles need cleaning, flush
them under running water.

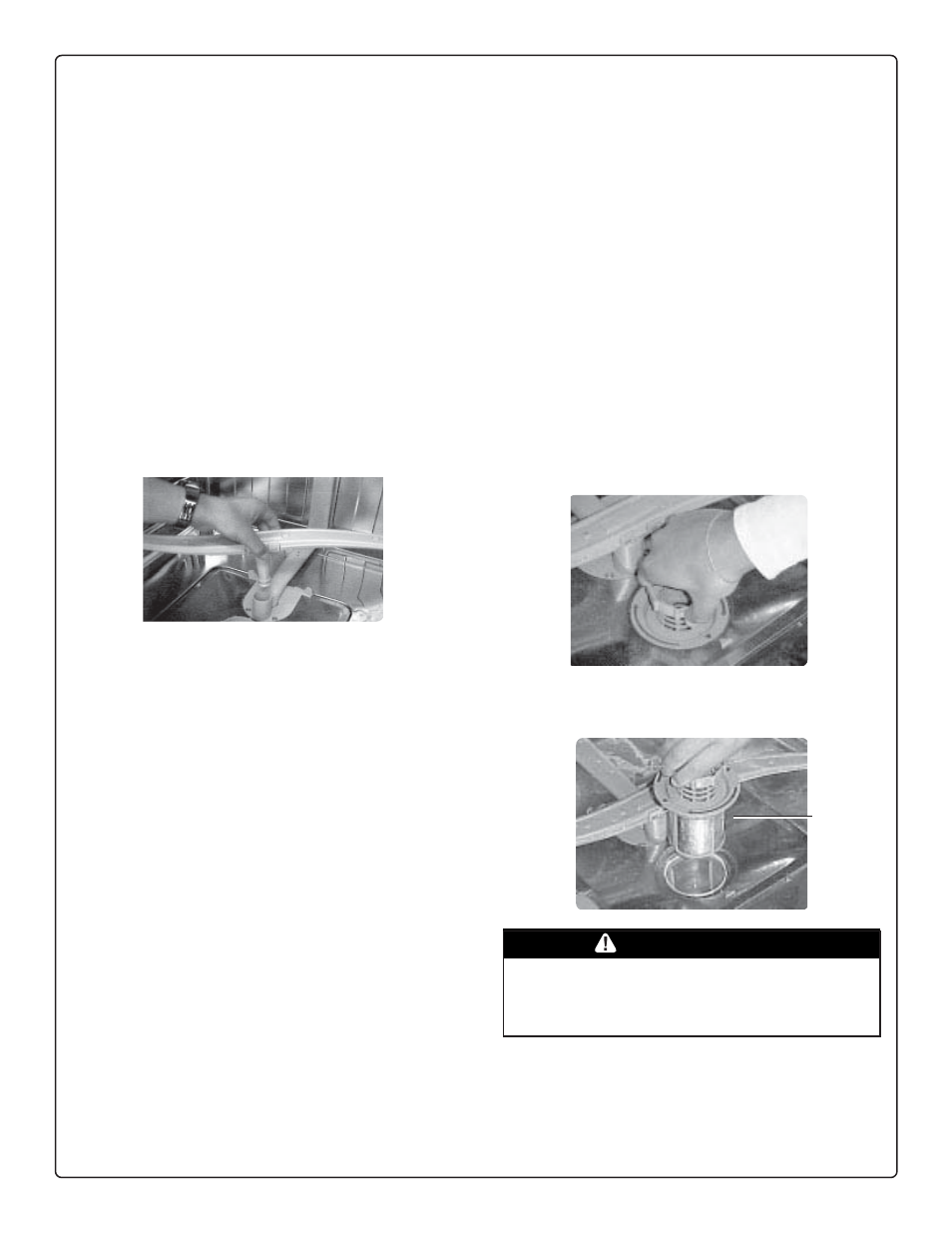

Figure 26
Check/Clean the Filter System
This dishwasher has a filter system that consists
of a Large Object Trap/Cylinder Filter assembly,
a Fine Filter, and an additional Micro Filter. The
filter system is located on the inside of your
dishwasher under the lower basket and is easily
accessible.
During normal use, the filter system is
self-cleaning. You should occasionally inspect it
for foreign objects and clean it when necessary.
To Remove the Large Object Trap/Cylinder
Filter Assembly:
1. Remove the lower basket.
2. Grasp the assembly as shown in Figure 27
and turn it counterclockwise 1/4 turn.
Figure 28
Figure 27
4. Carefully examine the assembly. If you find
debris in the Large Object Trap, turn it
upside-down and gently tap it on a surface
such as a countertop to dislodge and remove
the debris. Flush the Cylinder Filter clean by
holding it under running water.
3. Lift out the assembly as shown in Figure 28.
Large
Object
Trap/
Cylinder
Filter
To avoid injury, do not reach into the large
object trap with your fingers. The large
object trap could contain sharp objects.
CAUTION
