The interior fan is located in the rear
wall of the bar refrigerator with icemaker
and is designed to run continuously to help
maintain the proper cooling temperature.

In most instances, the interior fan will run
when the door is open. However, it will not
operate when the door is opened during a
defrost cycle.

Controls and Features

Bar Refrigerator with Icemaker

10

Loading
tips and
suggestions

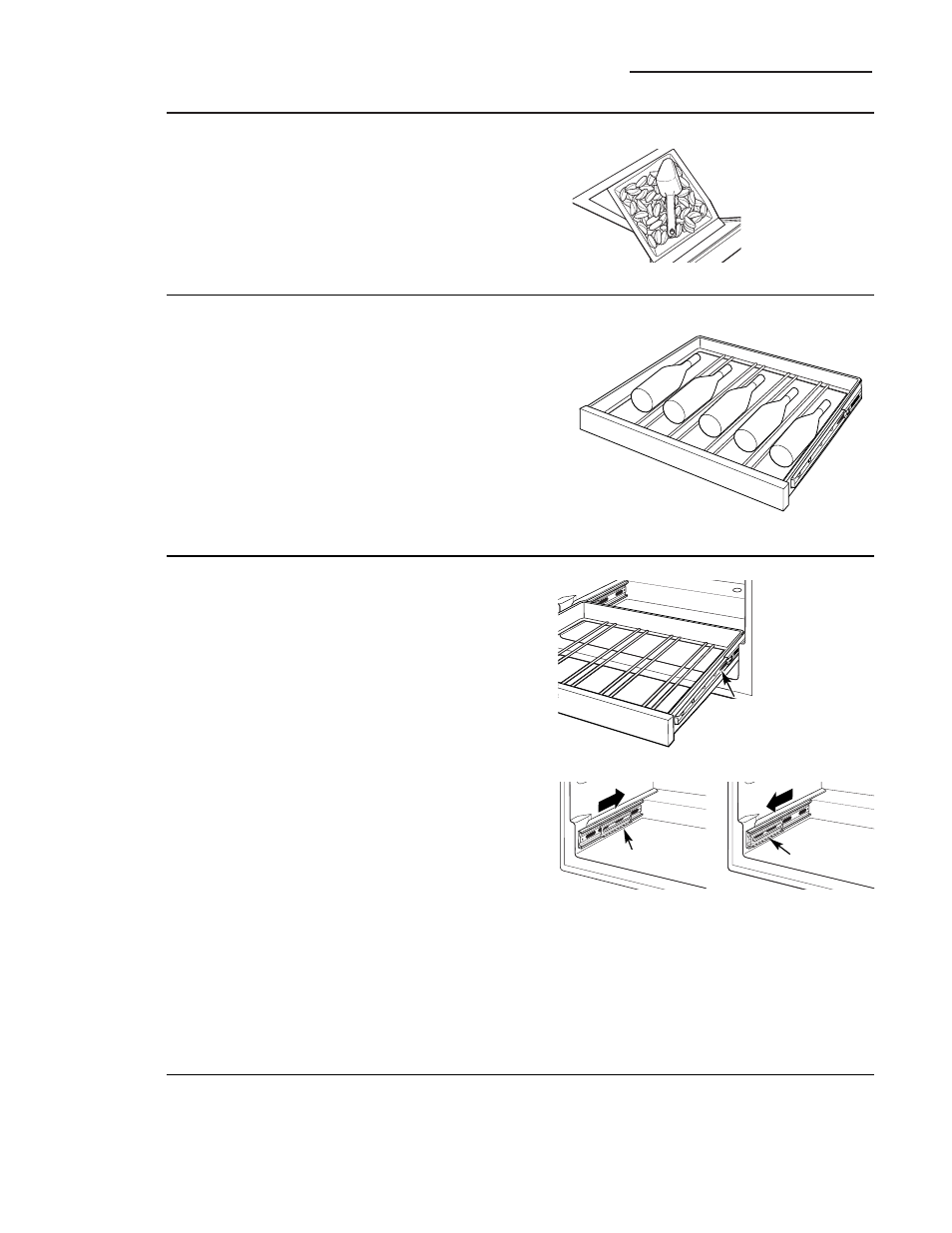

The bottom full extension drawer holds
five bottles and is loaded with necks facing
the rear. Tall bottles should not be loaded
on the bottom drawer because they may
prevent the door from closing.

• Do not block the thermistor, located

on the right hand side, just above the top
shelf of the bar refrigerator with icemaker.
Blocking the thermistor could impair the
air circulation and temperature control.

Bottom drawer arrangement

Removing
full extension
drawer

To remove:

1. Pull the full extension drawer out to

the STOP position.

2. Push the tab on right drawer guide down

while pulling the tab on left guide up, and
pull the drawer out.

To replace:

1. Push the drawer slide arm back into

the unit.

2. Pull the small slide sub-assembly

completely forward.

3. Insert the sides of the drawer back

into the guides.

4. Push until the tabs lock into place.

Tab (push tab down on right
drawer guide, pull tab up on
left drawer guide)

NOTE: Make sure the tabs on the full
extension drawer guides are fully engaged
before loading any bottles. Pull the drawers
out all the way to the STOP position and
push back in several times to make sure
locking tabs are properly engaged.

To replace, push drawer slide
arm back into unit

Pull small slide sub-assembly
completely forward

Appearance may vary

Interior fan

Ice scoop

The bar refrigerator with icemaker includes
an ice scoop in the ice storage bin. To
maximize ice bin capacity, store the ice
scoop as shown. Do NOT wash the ice scoop
in the dishwasher. For cleaning, handwash
in mild soapy water or use the baking soda
solution noted in Cleaning the inside section.

Sub-assembly

Sub-assembly
