Gold's Gym GGBE29922 - Manual (Page 9)

9

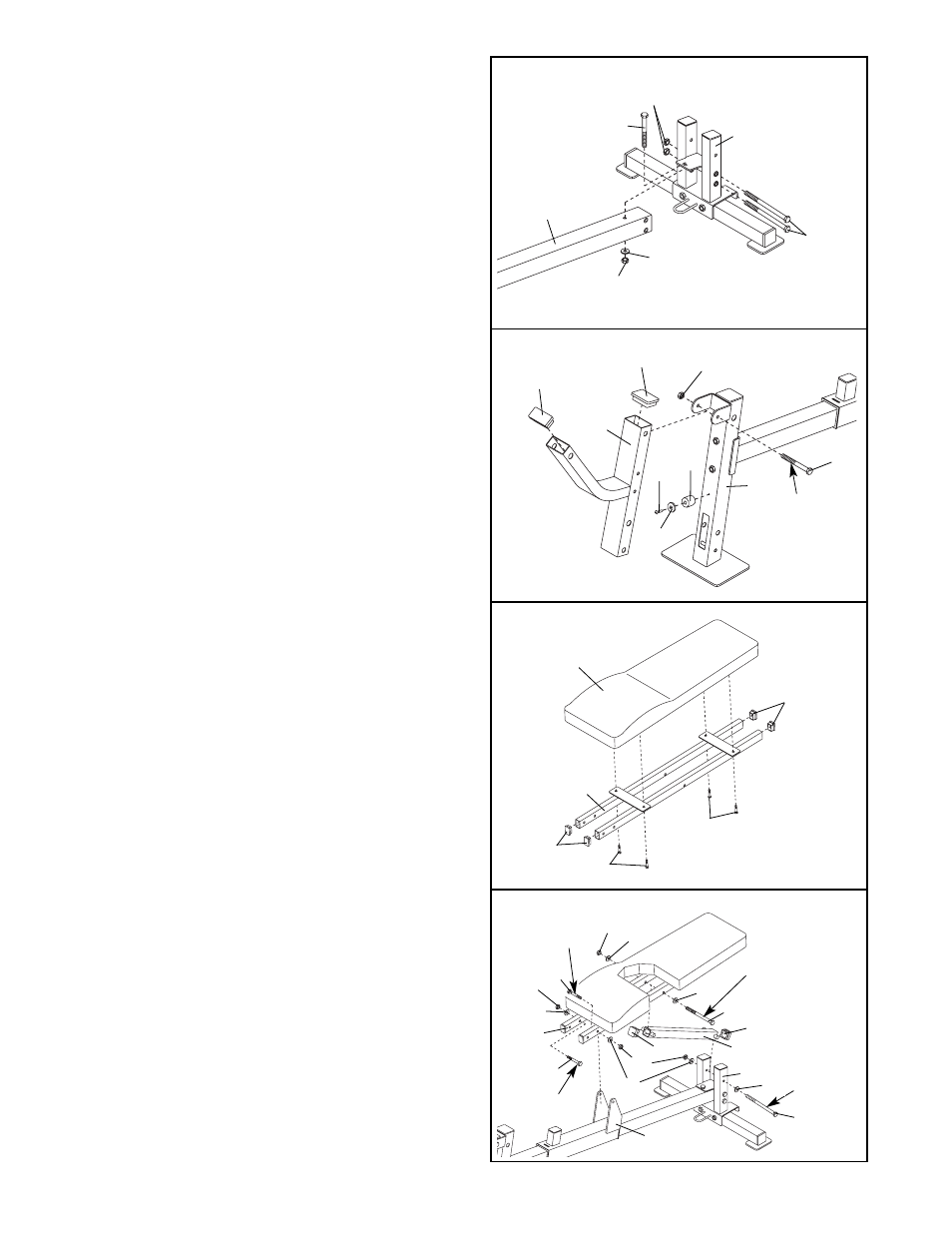

14. Attach the Bench Frame (14) to the Back Leg
(39) with an M10 x 78mm Bolt (70), two M10 x
164mm Bolts (71), an M10 Washer (79), and
three M10 Nylon Locknuts (77). Do not tighten
the Locknuts yet.
17. Press two 38mm Square Inner Caps (44) into the
ends of the Support Leg (13).
Lubricate an M10 x 154mm Bolt (69) with grease.
Attach the Support Leg (13) to the Backrest Frame
(16) with the Bolt, two M10 Washers (79), and an
M10 Nylon Locknut (77).
Lubricate an M10 x 164mm Bolt (71) with grease.
Attach the Support Leg (13) to the Back Leg (39)
with the Bolt, two M10 Washers (79), and an M10
Nylon Locknut (77).
Lubricate two M10 x 45mm Bolts (76) with
grease. Attach the Backrest Frame (16) to the
Sliding Seat Frame (15) with the Bolts, two M10
Washers (79), and two M10 Nylon Locknuts (77).
Do not overtighten the M10 Nylon Locknuts
(77); the Support Leg (13) and the Backrest
Frame (16) must be able to pivot easily.
16. Press four 25mm x 38mm Inner Caps (45) into
the Backrest Frame (16).
Orient the Backrest (38) as shown. Attach the
Backrest to the Backrest Frame (16) with four M6
x 16mm Screws (72).
38
45
16
72
72
45
77
79
77
14
70
71
39
14
15. Attach the Leg Lever Bumper (54) to the Front
Leg (18) with the M4 x 19mm Screw (68) and an
M5 Washer (92).
Press a 38mm x 76mm Inner Cap (49) and a 2” x
3” Inner Cap (50) into the Leg Lever (19).
Lubricate an M10 x 102mm Bolt (91) with grease.
Attach the Leg Lever (19) to the Front Leg (18)
with the Bolt and an M10 Nylon Locknut (77). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
68
18
Lubricate
49
50 77
91
15
16
17
19
54
92
Lubricate
Lubricate
Lubricate
Lubricate
79
79
79
77
77
77
76
76
44
44
39
13
69
79
16
15
71
79
