CABLE DIAGRAMS

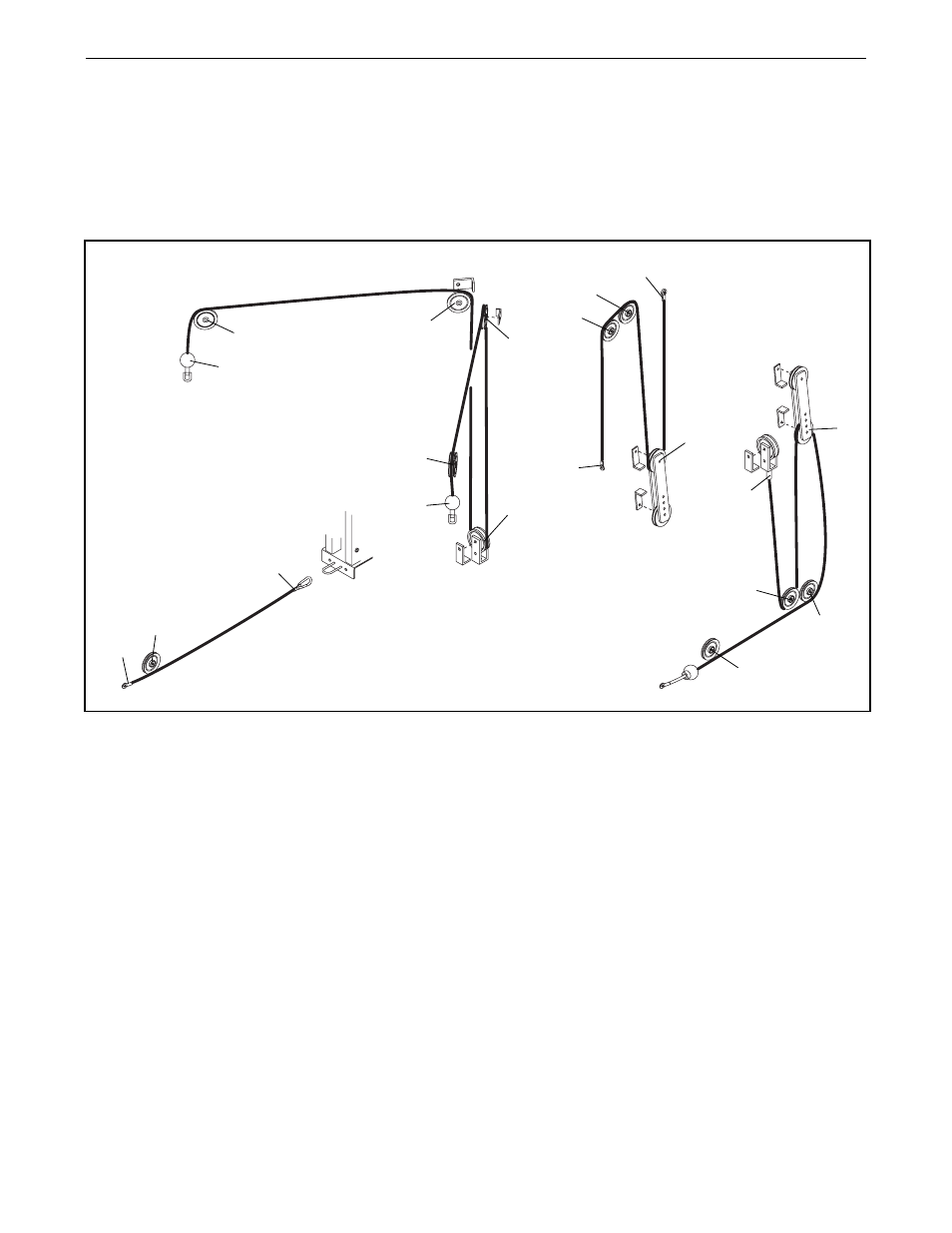

The cable diagrams below show the proper routing of the Bench Cable (58), the Low Cable (59), the Carriage
Cable (60), and the High Cable (61). Use the diagram to make sure that the cables and the cable traps have
been assembled correctly. If the cables have not been correctly routed, the weight bench will not function prop-
erly and damage may occur. The numbers show the correct route for each cable. Make sure that the cable
traps do not touch or bind the cables.
1
2
3
4
5
6
7
1
2
3
4
5
1
2
Bench Cable (58)
High Cable (61)
Carriage Cable (60)
Low Cable (59)
3
1
2
3
4
5
