LEVEL THE REFRIGERATOR (cont.)
To adjust
the rollers on 23
‘/ 25 ‘
CustomStyle ™ models:
Turn the front roller
adjusting screws
clockwise to raise
the refrigerator,
counterclockwise
to lower it. Use a 3/8″
hex wrench with extension, or an adjustable
wrench.
These models also have rear adjustable rollers
so you can align the refrigerator with your
kitchen cabinets. Use a 3/8″ hex wrench with
extension to turn the screws for the rear rollers—
clockwise to raise the refrigerator,
counterclockwise to lower it.
30
Installation Instructions
INSTALLING THE REFRIGERATOR
(CONT.)
PUT THE REFRIGERATOR IN PLACE
Move the refrigerator to its final location.
4 5

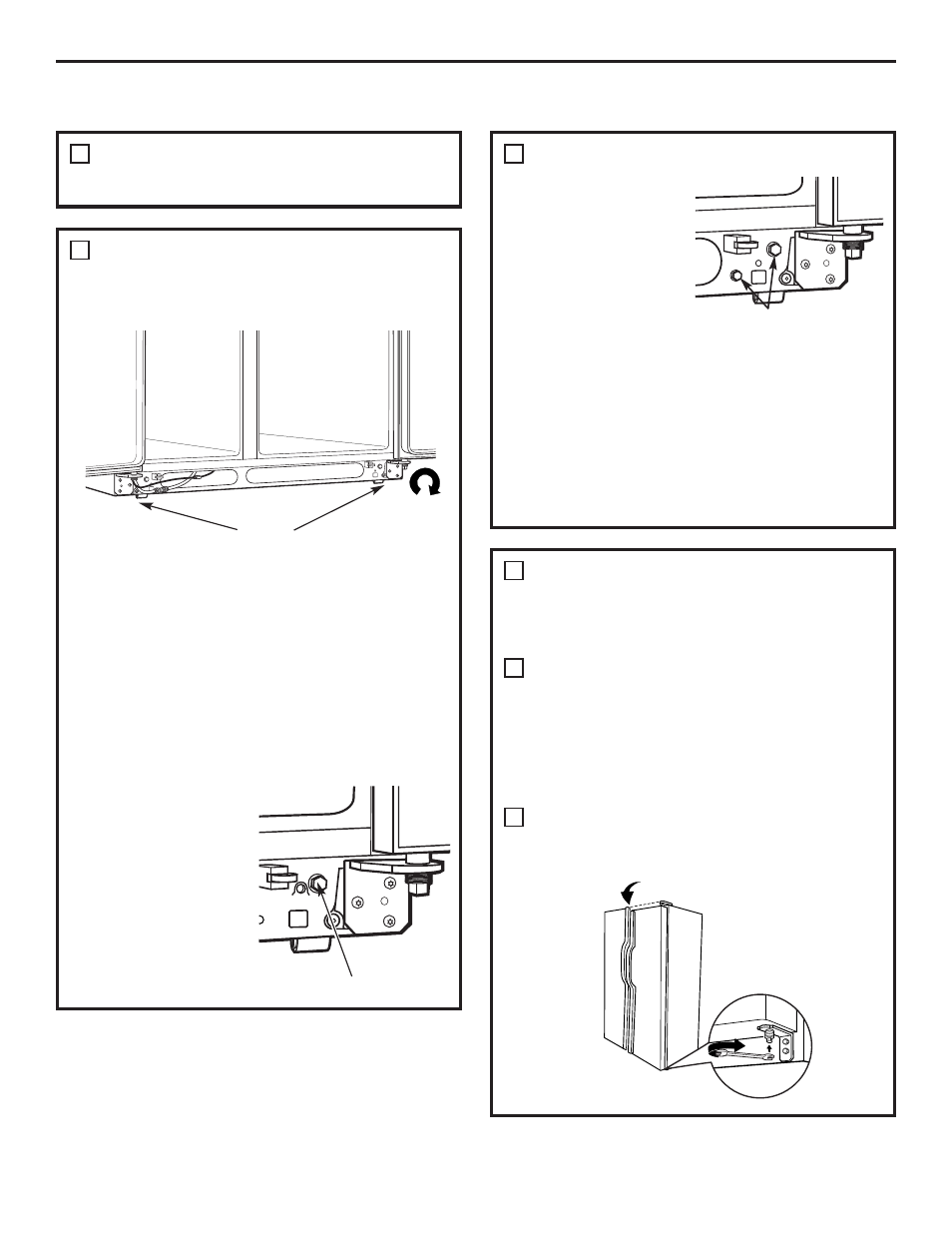

LEVEL THE REFRIGERATOR
The refrigerator can be leveled by adjusting
the rollers located near the bottom hinges.
Rollers have three purposes:
• Rollers adjust so the door closes easily when
opened about halfway. (Raise the front about
5/8″ [16 mm] from the floor.)
• Rollers adjust so the refrigerator is firmly
positioned on the floor and does not wobble.
• Rollers allow you to move the refrigerator
away from the wall for cleaning.
To adjust the rollers on 23‘ (33” wide), 25‘, 26‘,
27‘ and 29‘ models:
• Turn the roller
adjusting screws
clockwise to raise
the refrigerator,
counterclockwise
to lower it. Use
a 3/8″ hex socket
or wrench, or an
adjustable wrench.
5
Rollers
Roller Adjusting Screw
Roller Adjusting Screws
LEVEL THE DOORS
Adjust the refrigerator door to make the doors
even at the top.
To align:
Using a 7/16″ wrench, turn the door adjusting
screw to the right to raise the door, to the left
to lower it.
NOTE:
A nylon plug, imbedded in the threads
of the pin, prevents the pin from turning
unless a wrench is used.
After one or two turns of the wrench, open
and close the refrigerator door and check
the alignment at the top of the doors.
6
A
B
Doors should be even at top
Raise
7/16″ Wrench
Raise
