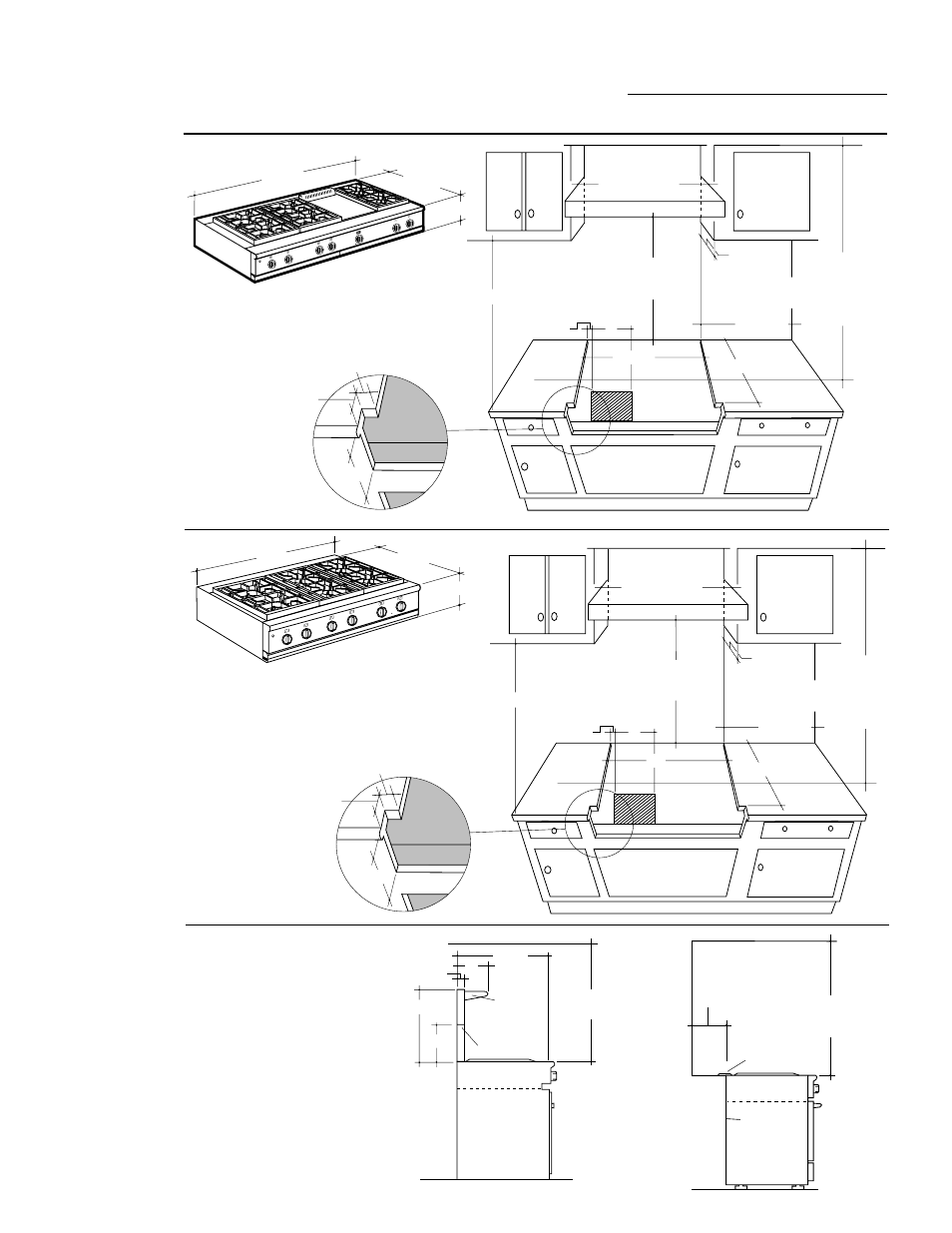

Design Information
Professional Gas Cooktops
Product
Dimensions
& Clearances
Low Back
High
Shelf
26-5/8"
10"
2-1/2"
21-1/4"
12"
36" Min.
to Combustibles
26-5/8"
8-7/16"
47-7/8"
Mon ogra m FRO NT
REA R
HEA TING
FRO NT REA R
FRO NT REA R
Mon ogra m FRO NT
REA R
FRO NT
REA R
FRO NT
REA R
26-5/8"
8-7/16"
35-7/8"
48" Wide Models
36" Wide Models
1/2" Trim
36" Min.
to
Combustibles
0" Clearance
12" Min. to Combustibles
Without Backguard or 0"
to Non-Combustible Wall
with 1/2" Trim
48" Wide Hood
Refer to Hood
Installation
Instructions
18" Min.
12" Min. to
Combustible
Material
Each Side
36" Min. to
Combustible
Material From
Cooking
Surface
13" Max.
17"
22-3/4" Min.
Electric/Gas
Supply
46-1/8"
7/8"
8"
2-1/2"
2"
Cooking Surface
36" Wide Hood
Refer to Hood
Installation
Instructions
18" Min.
12" Min. to
Combustible
Material
Each Side
36" Min. to
Combustible
Material From
Cooking
Surface
13" Max.
7"
22-3/4" Min.
Electric/Gas
Supply
35"
1/2"
8"
2-1/2"
2"
Cooking Surface
