Bullet Camera User Manual
Installing the Bracket and Camera
4) Attach the mounting plate to the mounting surface as shown in
Figure 7.
5) Reinstall the top of the bracket onto the mounting plate and tighten
the wing nut as shown in Figure 8.

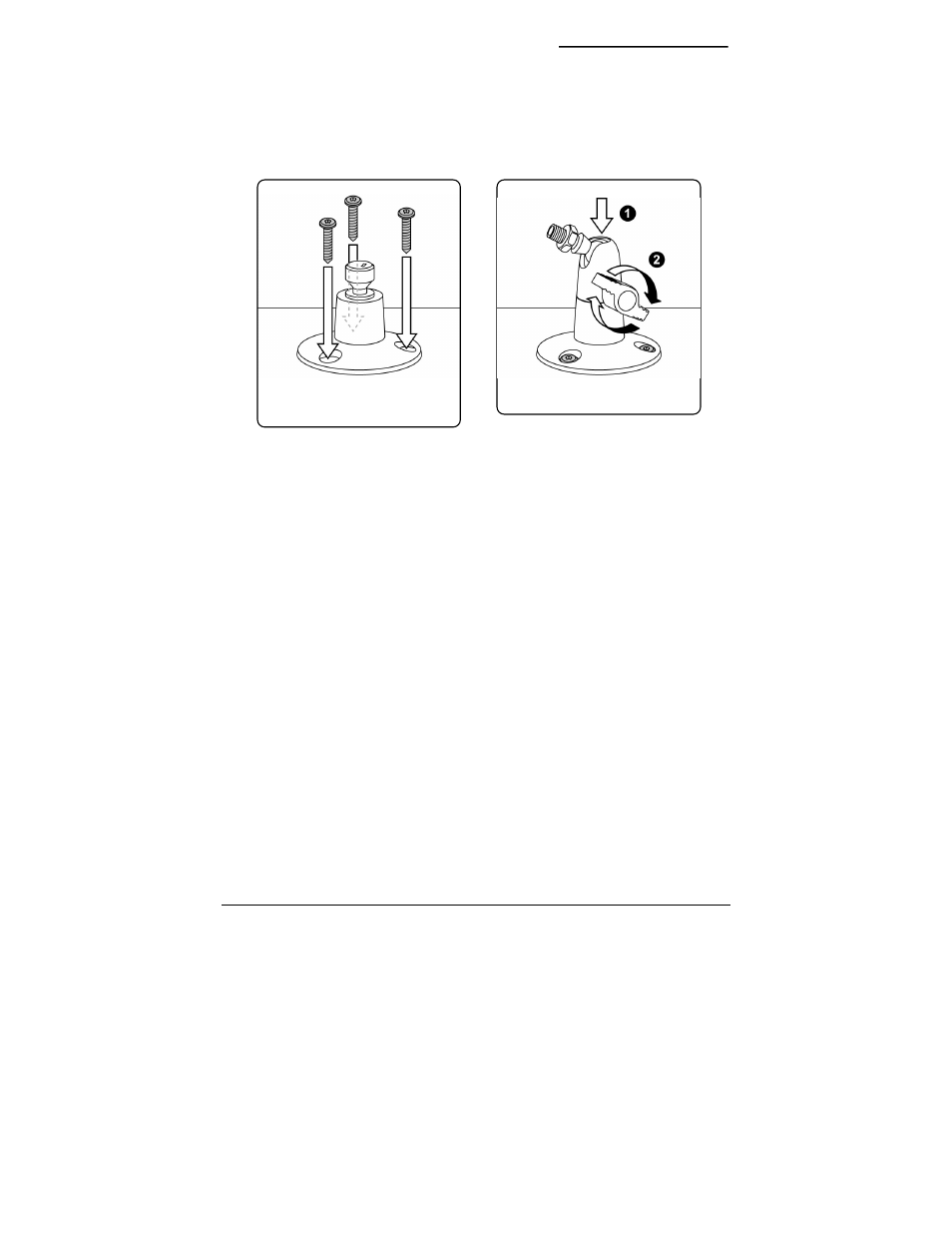

Figure 7. Attaching the mounting
plate to the mounting surface
Figure 8. Mounted bracket
