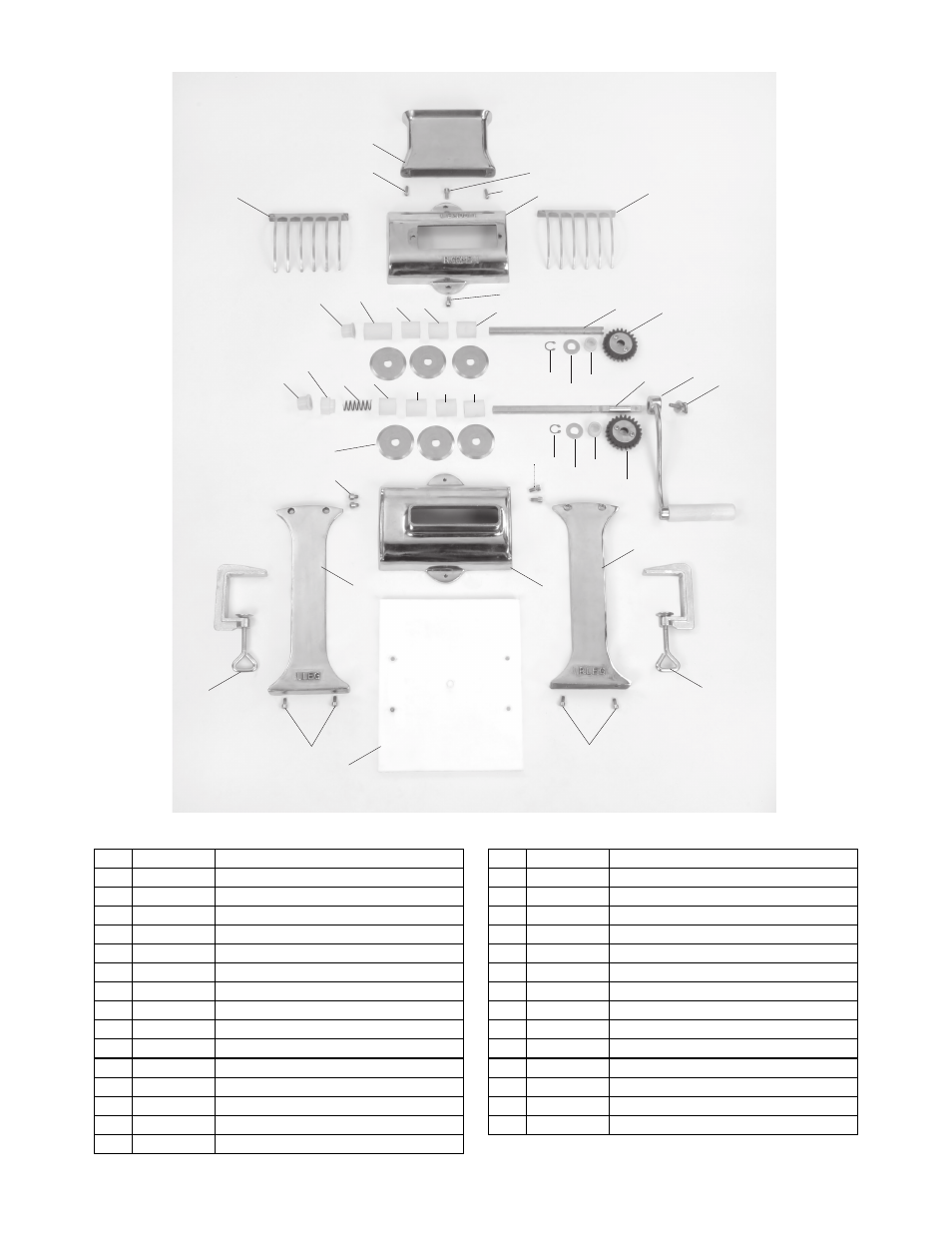

H7779 Parts Breakdown and List
�
�
�
�
�
�
�
�
�
�
�
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
�� ��
�� �� ��
��
��
��
��
��
��
��
��
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1
PH7779001 FUNNEL
17
PH7779017 CLAMP
2
PH7779002 STAINLESS CAP SCREW M6-1 X 12
18
PH7779018 STAINLESS CAP SCREW M6-1 X 10
3
PH7779003 STAINLESS FLAT WASHER 6MM
19
PH7779019 GEAR ASSEMBLY
4
PH7779004 UPPER HOUSING
20
PH7779020 PLASTIC GEAR BUSHING 13MM
5
PH7779005 STAINLESS PHLP HD SCR M5-.8 X 16
21
PH7779021 SPECIAL STAINLESS WASHER 13MM
6
PH7779006 COMB
22
PR47M
EXT RETAINING RING 13MM
7
PH7779007 DRIVEN SHAFT
23
PH7779023 PLASTIC BUSHING 30MM
8
PH7779008 MAIN SHAFT
24
PH7779024 PLASTIC BUSHING 29MM
9
PH7779009 CRANK HANDLE
25
PH7779025 PLASTIC BUSHING 25MM
10
PH7779010 HANDLE THUMB SCREW
26
PH7779026 COMPRESSION SPRING
11
PH7779011 STAINLESS CAP SCREW M6-1 X 8
27
PH7779027 BUSHING CAP
12
PH7779012 RIGHT LEG
28
PH7779028 DRIVEN SHAFT BUSHING
13
PH7779013 BASE
29
PH7779029 MAIN SHAFT BUSHING
14
PH7779014 STAINLESS CAP SCREW M5-.8 X 10
30
PH7779030 BLADE
15
PH7779015 LEFT LEG
31
PH7779031 PLASTIC BUSHING 40MM
16
PH7779016 LOWER HOUSING
