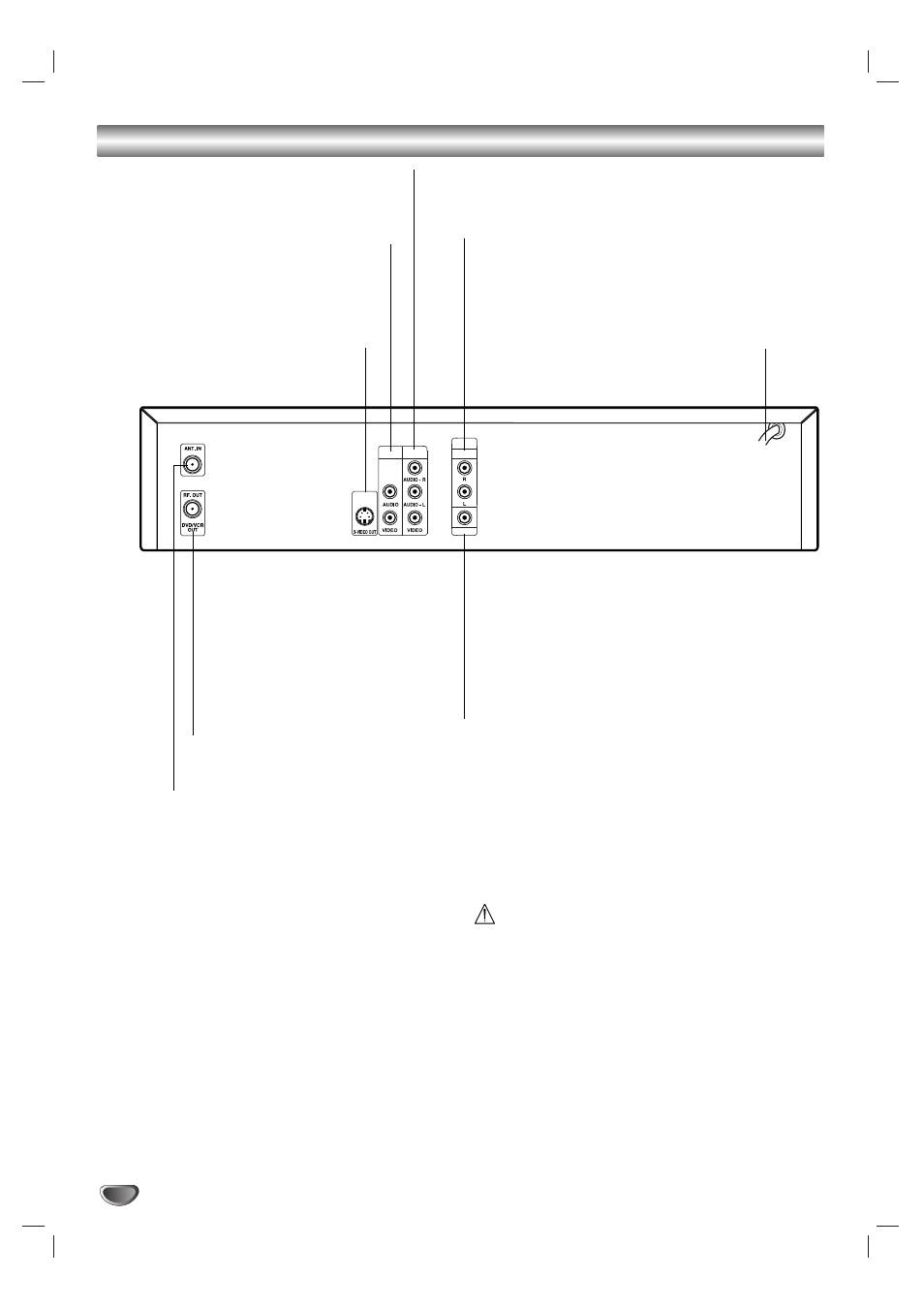

Connections Panel
VCR IN
LINE 1
DVD/ VCR
OUT
DVD EXCLUSIVE OUT
AUDIO
OUT
COAXIAL
Do not touch the inner pins on the rear panel jacks.
Electrostatic discharge may cause permanent dam-
age to the unit.
VCR IN LINE 1
(VIDEO IN/AUDIO IN)
Connects to the audio/video output of an
external source (audio system, TV/monitor,
another VCR).
ANTENNA INPUT
Connects to a VHF/UHF/CATV antenna.
DVD/VCR OUT (VIDEO/AUDIO (Left/Right))
Connects to a TV with video and audio inputs.
AUDIO OUT (Left/Right) (DVD OUT)
Connects to a TV, amplifier, receiver, or stereo system.
AC Power Cord
Plugs into a power source.
S-VIDEO OUT (DVD OUT)
Connects to an S-Video Input on
your TV.
RF OUT(DVD/VCR OUT)
Connects to an RF coaxial input
on your TV.
DIGITAL AUDIO OUT (COAXIAL) (DVD OUT)
Connects to digital (coaxial) audio equipment.
