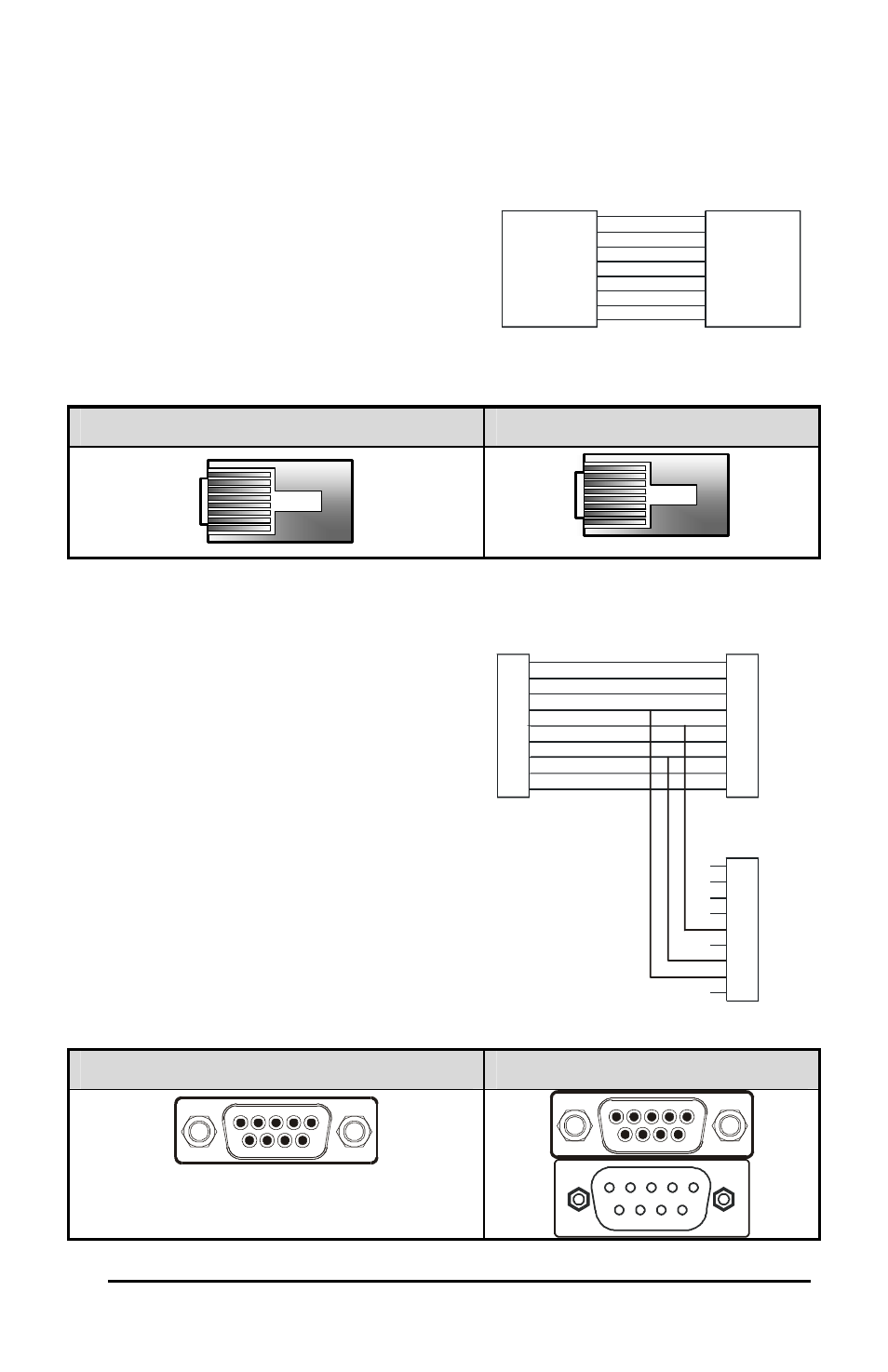

ProBridge to ProBridge Cable
Part Number : Installer Provided
Communication Type: RS-485
Connector Type: RJ45, RJ45
Cable Required: RS-485 Interconnect
Cable (up to 3,000’)). Interconnects
multiple PB3’s in a RS485 network.
RJ-45
RJ-45
Connector
Connector
Pin 8:
Pin 7: Common
Pin 6: A-
Pin 5: Rcv
Pin 4: Tx
Pin 3: A+
Pin 2:
Pin 1: Common
Pin 8:
Pin 7: Common
Pin 6: A-
Pin 5: Rcv
Pin 4: Tx
Pin 3: A+
Pin 2:
Pin 1: Common
RJ45 Connector
RJ45 Connector
ProBridge to ECR and Receipt Printer
Part Number : 4310-0078A
Communication Type: RS232
Connector Type: DB9F to DB9M to
DB9F.
Cable Required: 6 Foot RS232 Cable
(Supplied). Connects PB3 to the ECR
and the Receipt Printer.
DB9F
DB9M
DB9F
Connector
Pin 8
Pin 8
Pin 8
Pin 7
Pin 7
Pin 7
Pin 6
Pin 6
Pin 6
Pin 5
Pin 5
Pin 5
Pin 4
Pin 4
Pin 4
Pin 3
Pin 3
Pin 3
Pin 2
Pin 2
Pin 2
Pin 1
Pin 1
Pin 1
Pin 9
Pin 9
Pin 9
DB9F Connector
DB9F and DB9M Connector
