Sleeve Length
Height less than 11 in. (279mm): 21 in. (533mm) sleeve with
12 in. (305mm) “A” dimension
Height equal to or greater than 11 in. (279mm): 16 in. (406mm) sleeve with
9.5 in. (241mm) “A” dimension
Ordering Options
Factory Mounted
Smoke detector will be wired to a 4 x 4 handi-box. The closure device (if RRL or TOR) will also be wired to the
handi-box. Dampers provided with the smoke detector option will include single point wiring as standard (includes
RRL, OCI, TOR, and detectors).
Shipped Loose
Shipped loose smoke detector will only include the detector itself (no mounting hardware or bracket seals). Note:
Dampers ordered with shipped loose smoke detectors will have the standard sleeve length, not a longer sleeve to
accommodate the smoke detector installation. If smoke detectors are intended to be field mounted on the damper
sleeve, the damper sleeve length and ‘A’ dimension will need to be manually changed to the requirements indicated
under ‘Sleeve Length’.
L2
WHITE
MOTOR
L1
BLACK
OCI
YELLOW YELLOW YELLOW YELLOW
SWITCH #1
SWITCH #2
BLUE
RED
BLUE
BLACK
BLACK
7
6
13
14
12
10
8 9
RED
11
L2
WHITE
MOTOR
L1
BLAC
K
ORANGE
BLAC
K
RRL
BLUE
RED
BLUE
BLACK
BLACK
7
6
13
14
12
10
8 9
RED
11

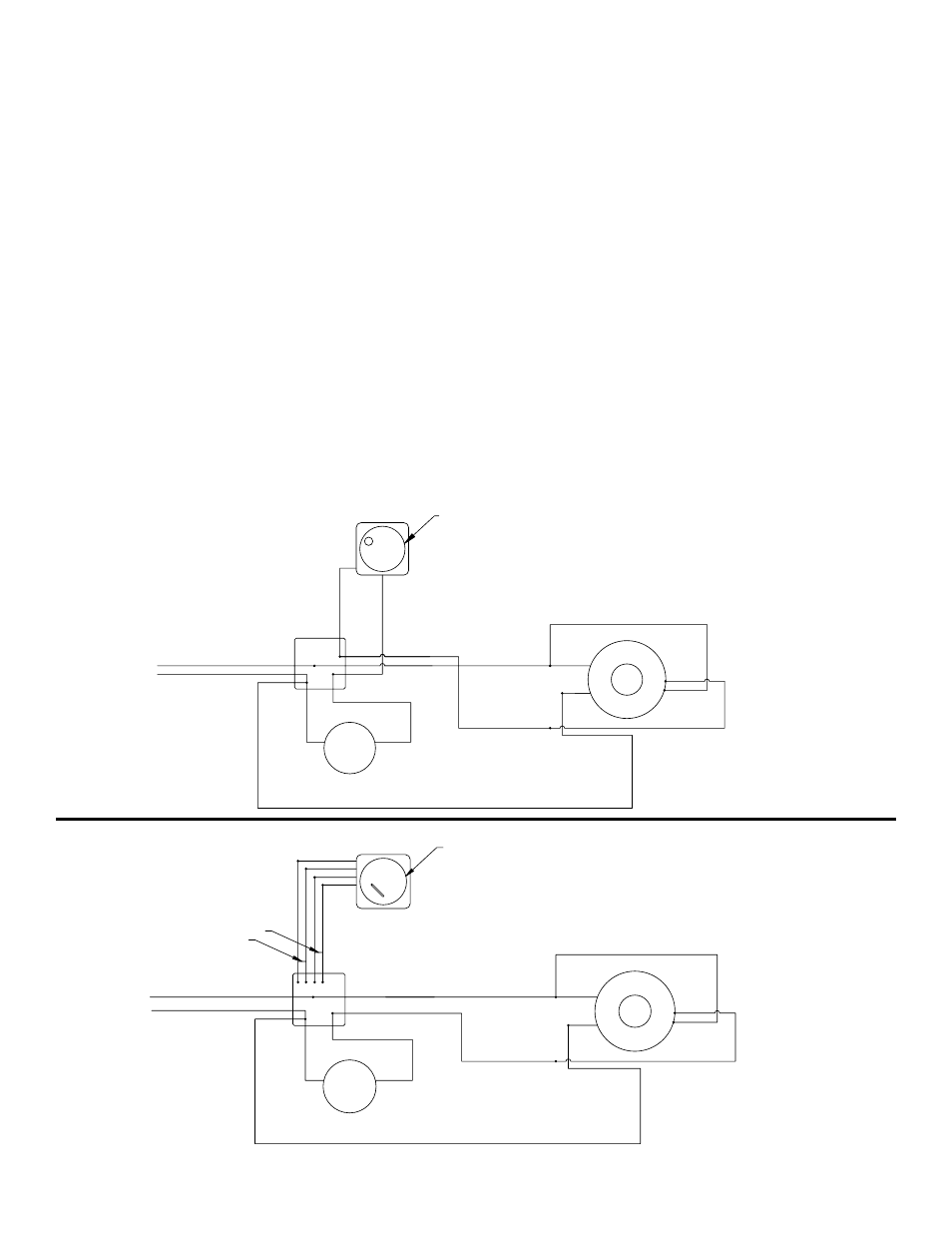

Wiring Diagrams
RRL
OCI
