Page 33
33
Copyright ©2001 Liberty Group
Service & Repair Manual

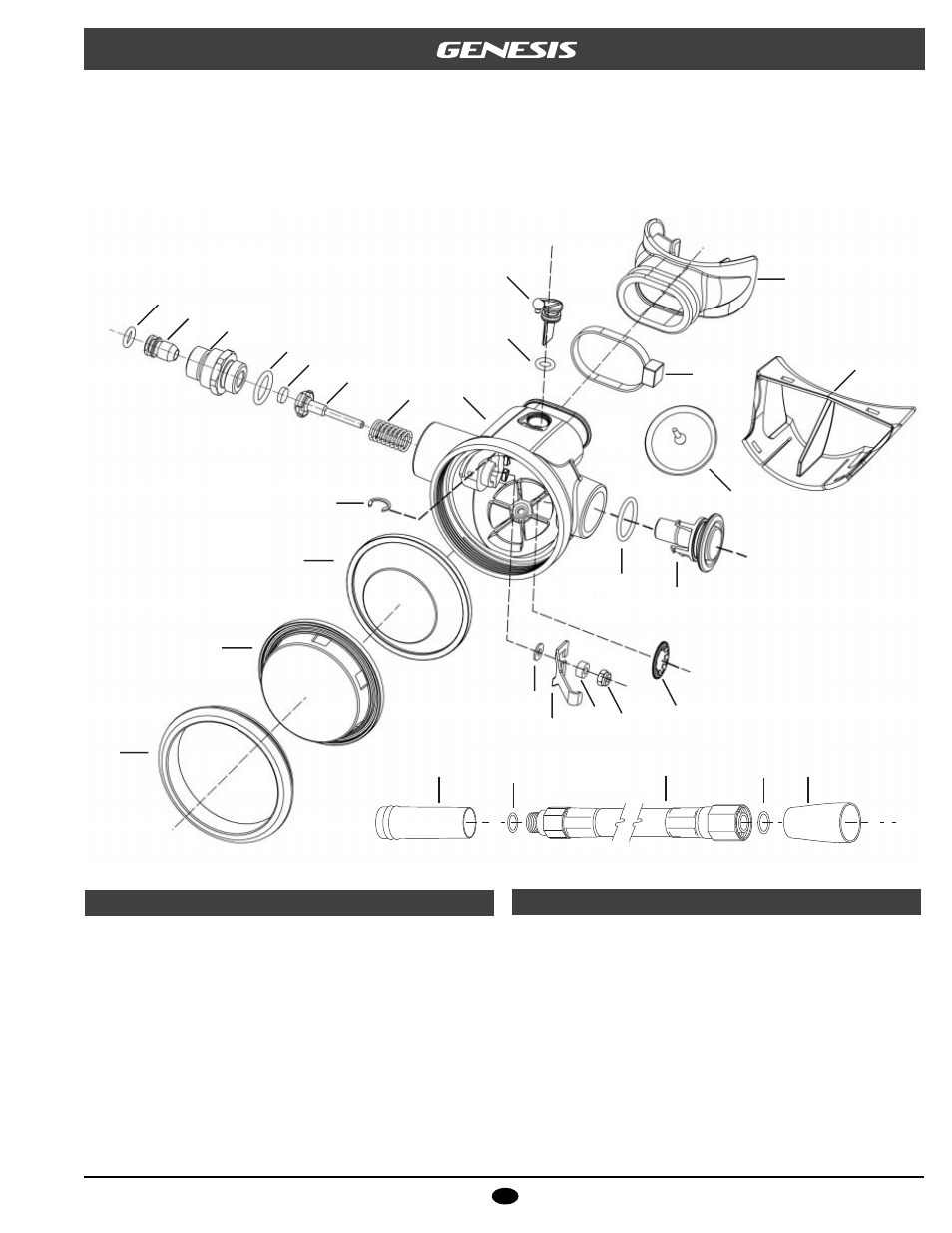

Schematic & Parts List
Atlas Second Stage
(EAN/Nitrox & Compressed Air)
Schematic & Parts List
Atlas Second Stage
(EAN/Nitrox & Compressed Air)
....... PK040
-
Annual Service Kit
....... GXXXX
-
Atlas Second Stage, Assembled
1 ....... G5240
1
Cover Ring
2 ....... G5239-07B
1
Diaphragm Cover, Atlas
3 ....... G5236
1
Diaphragm
4 .......G2-010
1
O-ring
5 .......G6621
1
Orifice
6 ....... G4330
1
Inlet Coupling
7 ....... G3-906
1
O-ring
8 ....... G4340
1
LP Seat
9 ....... G4333
1
Poppet
10 ...... G5074
1
Spring
11 ...... G5248
1
Case
11a ..... G5251
1
Retaining Ring
11b ..... G2009
1
O-ring
11c ..... G5250
1
Dive/Pre-Dive Switch
* ARP indicates Automatic Replacement Part - Provided in Annual Service Kit
12 ...... G4485-07
1
Mouthpiece, Black
13 ...... G5234
1
Exhaust Tee
14 ...... G1978-07
1
Tie-Strap
15 ...... G6326
1
Exhaust Valve
16 ...... G5241
1
Case Plug
17 ...... G2-016
1
O-ring
18 ...... G5256
1
Retaining Ring
19 ...... G4336
1
Locknut
20 ...... G4335
1
Spacer
21 ...... G5254
1
Lever
22 ...... G5117
✔
1
Washer
23 ...... G6653
1
Hose Protector
24 ...... G3-903
1
O-ring
25 ...... G5253-30
1
30" LP Hose
26 ...... G2-010
1
O-ring
27 ...... G6325
1
Hose Sleeve
Ref # PN
*ARP
Qty
Description
Ref # PN
*ARP
Qty
Description
2
3
4
5
10
11a
11b
11c
9
8
7
6
11
12
13
14
15
20 19
18
17
16
21
22
1
23
24
25
26
27
