Installation Instructions

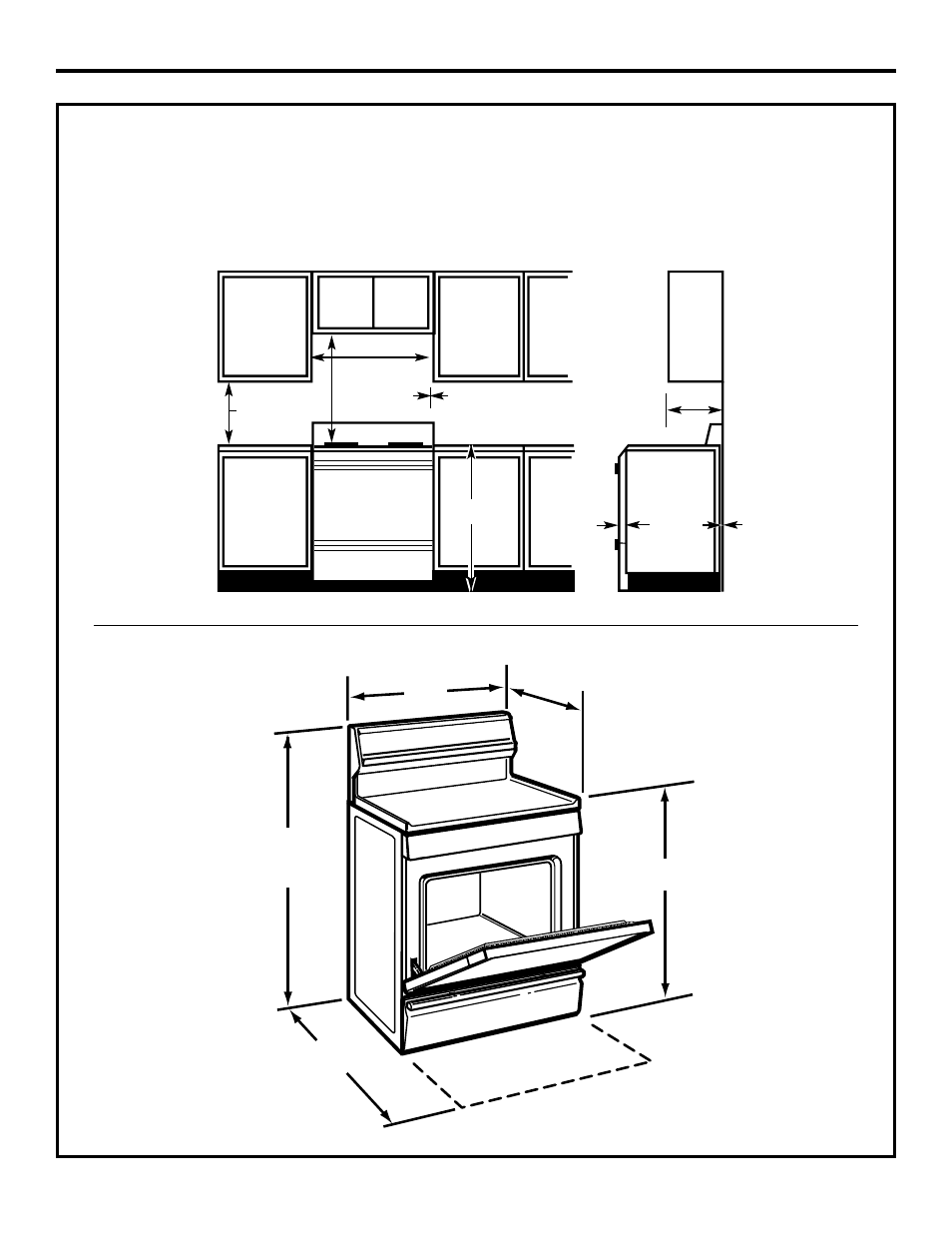

DIMENSIONS AND CLEARANCES
Provide adequate clearances between the range and adjacent combustible surfaces. These dimensions must be met for
safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electric Outlet Locations)
may be adjusted to meet specific requirements.
The range may be placed with 0 ″ clearance (flush) at the back wall.
36
To cabinets
below cooktop
and at the range
back
30”
30”
1”
2”
Minimum
13” To wall on either side,
standard burner models
To wall on either side,
sealed burner models
Maximum depth
for cabinets
above
countertops
Front edge of
the range side
panel forward
from cabinet
18”
0” 1/4”
Minimum to
cabinets on
either side
of the range
36”
28” to 28 1 ⁄
4
”
Depth with door closed (includes door handle)
Depth varies depending on model.
See specifications sheet for your model.
30”
36 1 ⁄
4
” ± 1⁄4”
Depth with door open:
46 3 ⁄
8
”
Height
47 3 ⁄
8
”
