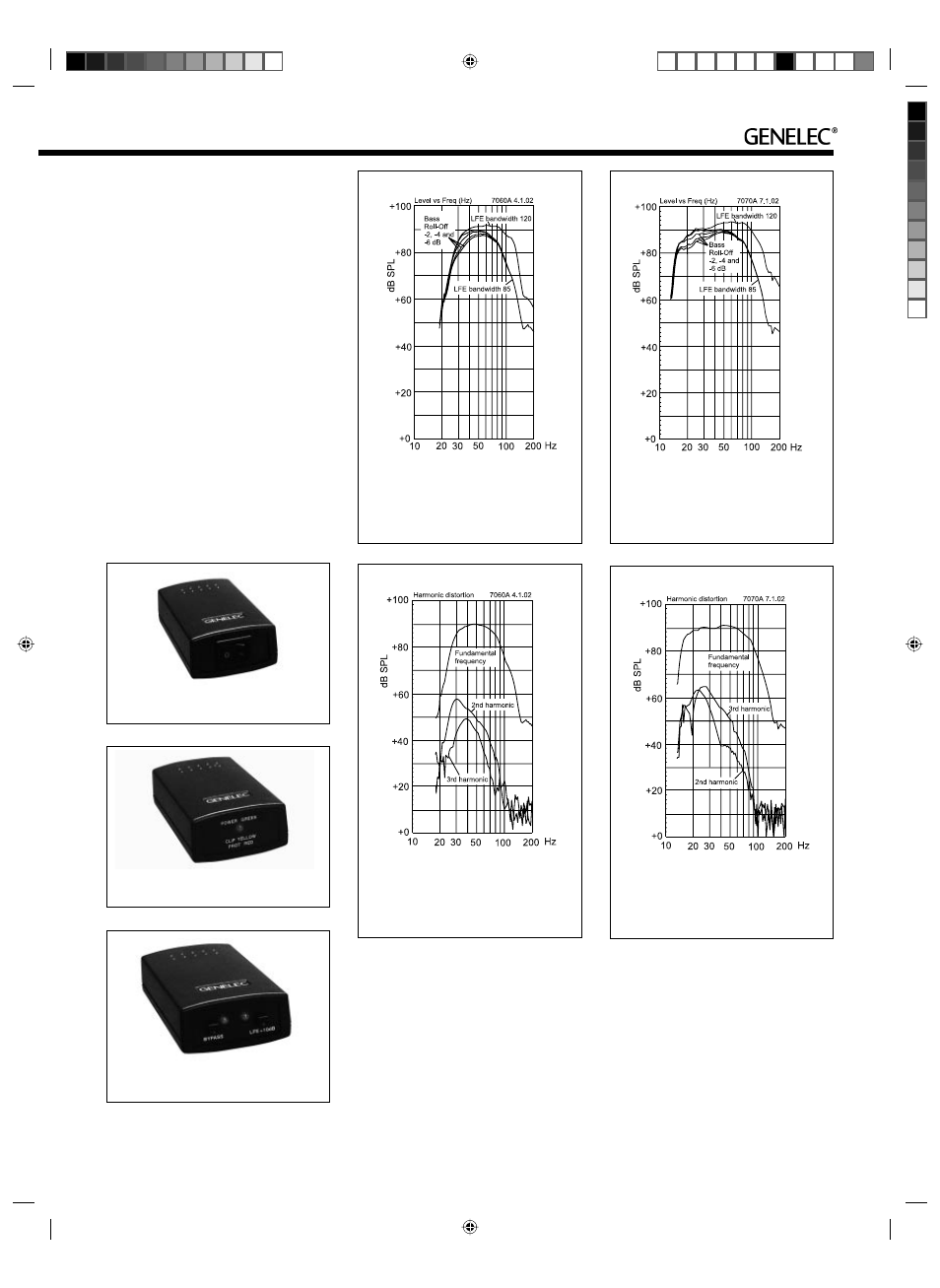

Figure 11. The curves above show the
harmonic distortion analysis of the 7060A in
free field. In half space the SPL will be 6 dB
higher.
Figure 9. The free field frequency response
of the 7060A subwoofer at different Bass
Roll-Off settings
Maintenance
No user serviceable parts are inside the
amplifi er unit. Any maintenance of the unit
must only be performed by qualifi ed service
personnel.
Guarantee
This product is supplied with a ONE year
guarantee against manufacturing faults or
defects that might affect the performance of
the unit. Refer to supplier for full sales and
guarantee terms.
Accessories
1092-400 1/4” jack "Bypass" switch
7000-415 RJ11 remote Power/Overload
indicator LED
7000-416 RJ11 remote control for
"Bypass" and "+10 dB LFE"
functions
Figure 10. The free field frequency
response of 7070A and 7071A subwoofers
at different Bass Roll-Off settings.
Figure 12. The curves above show the
harmonic distortion analysis of the 7070A
and 7071A in free field. In half space the SPL
will be 6 dB higher.
Figure 6. 1092-400 "Bypass" switch
Figure 7. 7000-415 Remote Power/OVL LED
Figure 8. 7000-416 Remote control switch
for "Bypass" and "+10 dB LFE" functions
