Global Machinery Company TS1800 User Manual

Page 11

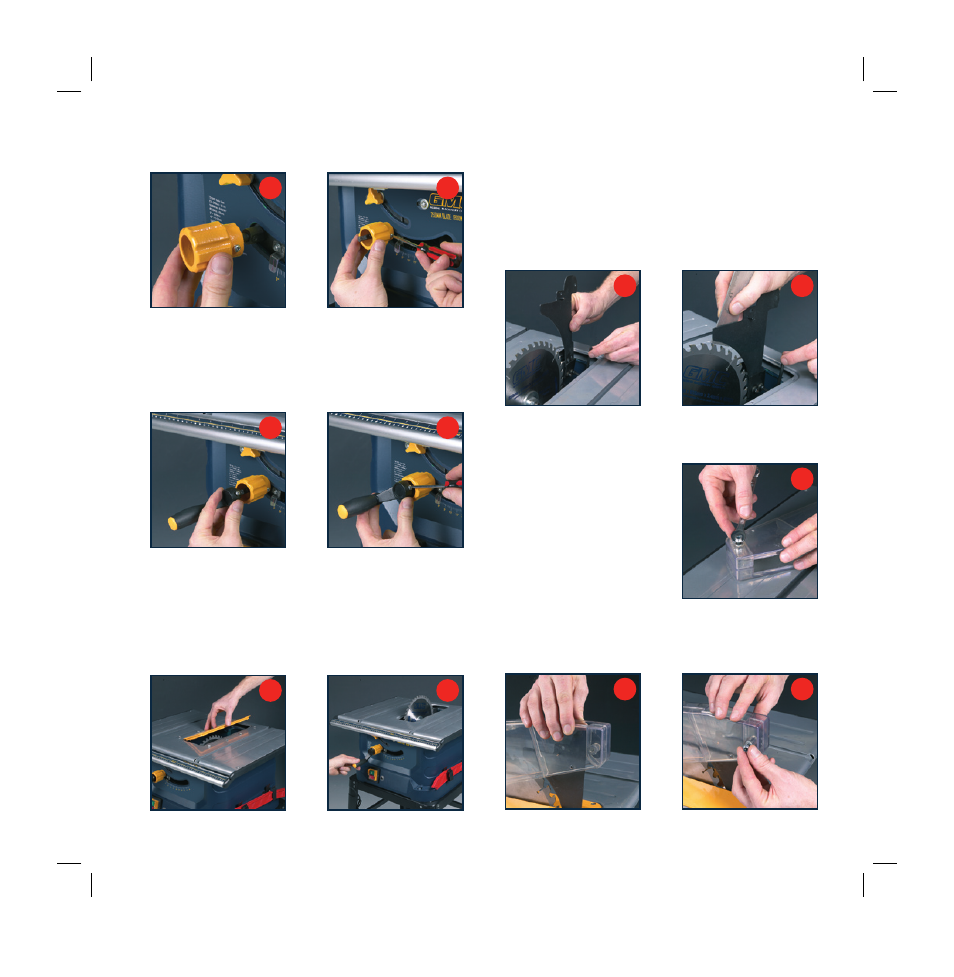

2. Secure the height adjustment knob by tightening the

Phillips head screw (Fig. J).

3. Fit the height adjustment handle onto the shaft ensuring

that the flat on the handle locates onto the flat at the front

of the shaft (Fig. K).

4. Secure the height adjustment handle by tightening the

Phillips head screw (Fig. L).

Fitting the riving knife

1. Remove the 8 screws securing the table insert and take

off the table insert (Fig. M).

2. Loosen the height adjustment locking knob and turn the

blade height adjustment handle to raise the blade to its

highest position (Fig. N).

3. Tighten the height adjustment locking knob.
4. Using the hex key provided, loosen the two hex bolts on

the riving knife clamp and insert the riving knife between

the two metal plates that form this clamp (Fig. O).

5. Adjust the position of the riving knife so that the gap between

the knife and the teeth of the blade is even along the

curve of the blade and is not less than 5mm wide (Fig. P).

6. Tighten the 2 hex screws to secure the riving knife in position.
7. Replace the table insert and secure using the 8 screws.

Fitting the blade guard

1. Remove the hex nut and

washer on the side of the

guard (Fig. Q).

2. Remove the screw from

within the guard.

3. Place the blade guard over the

riving knife so that the hole in

the guard and the hole in the riving knife are aligned (Fig. R).

4. Insert the screw through the hole and secure using the

nut and flat washer (Fig. S).
