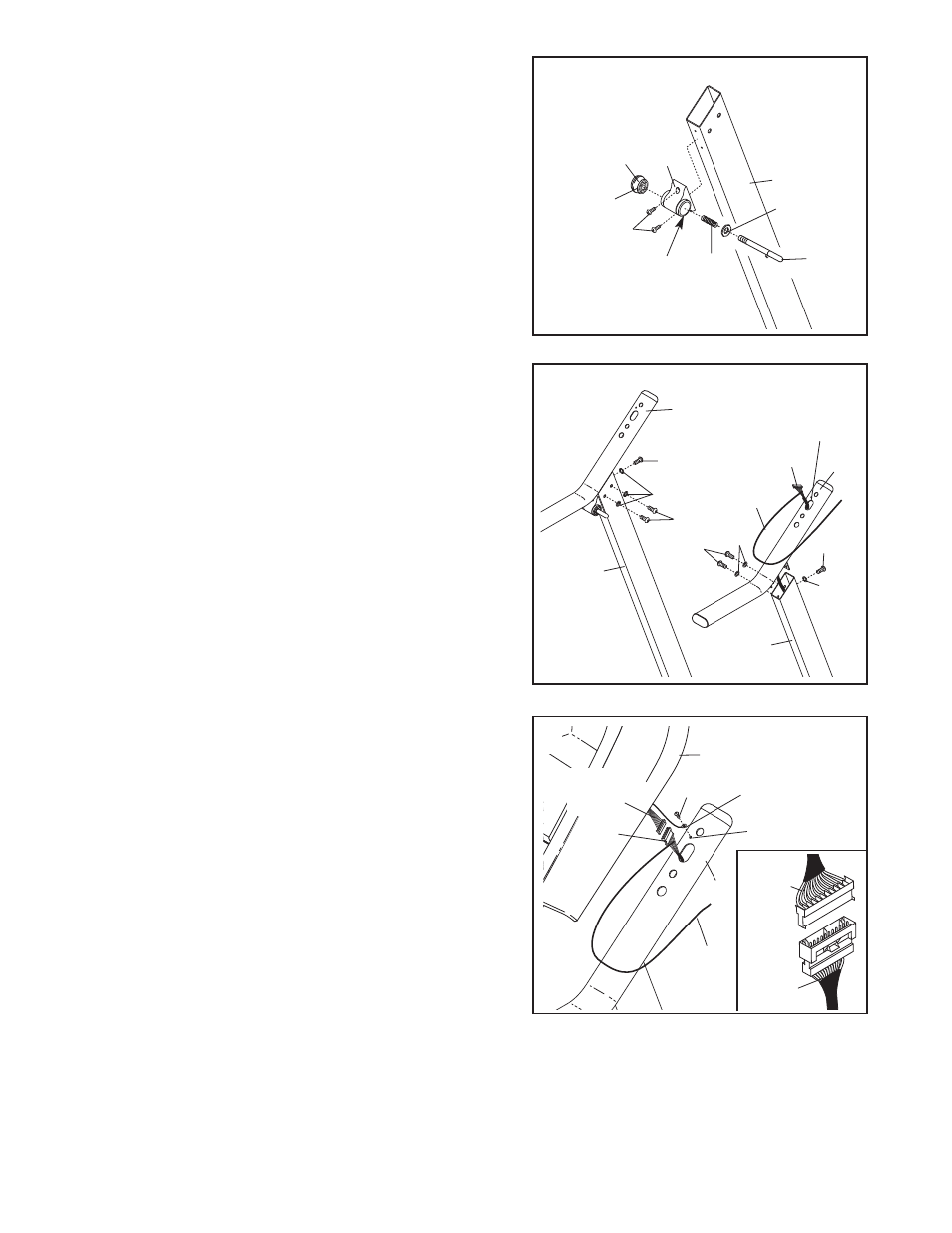

9. Have another person hold the Console Base (88) near
the Right Handrail (90). Attach the end of the ground wire
to the indicated small hole in the Right Handrail with the
M4.2 x 13mm Silver Screw (4).
Connect the Upright Wire (77) to the console wire. See
the inset drawing. The connectors should slide to-
gether easily and snap into place. If they do not, turn
one connector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS TURNED
ON.
Remove the wire tie from the Upright Wire (77).
4
88
Ground
Wire
Wire
Tie
9
8. Hold the Right Handrail (90) near the Right Upright (78),
and insert the Upright Wire (77) into the opening in the
bottom of the Right Handrail and out of the indicated
hole in the top.
Set the Right Handrail (90) on the Right Upright (78),
and finger tighten three M8 x 19mm Bolts (6) with three
5/16" Star Washers (10) into the Right Handrail and the
Right Upright. Do not fully tighten the Bolts yet. Make
sure that the Upright Wire (77) is not pinched.
Attach the Left Handrail (89) to the Left Upright (73)
as described above. Note: There are no wires on the
left side.
78
6
6
10
77
73
89
10
10
6
6
Wire Tie
90
8
77
7. Attach the Latch Insert (70) to the Left Upright (73) with
two M4.2 x 19mm Screws (1). Make sure that the large
hole in the Latch Insert is on the side shown. Do not
overtighten the Screws.
Locate the Latch Pin Assembly (72). Remove the knob
from the pin. Make sure that the collar and the spring
are on the pin as shown. Insert the pin into the Latch
Insert (70), and tighten the knob back onto the pin.
1
Console
Wire
70
73
7
Knob
Pin
Collar
Spring Large Hole
72
Hole
Small Hole
Console
Wire
