7
2. Attach a Wheel (86) to the Base (85) with an
M10 x 50mm Bolt (27) and an M10 Nut (33). Do
not overtighten the Nut; the Wheel must turn
freely.
Cut the tie off the Upright Wire (77).
85
77 Tie
27
33
2
86
3. Identify the Right Upright (78) and the Right
Upright Spacer (80), which are marked with
stickers. Insert the Upright Wire (77) through the
Right Upright Spacer as shown.
See the inset drawing. Tie the wire tie in the
Right Upright (78) securely around the end of
the Upright Wire (77). With the help of a second
person, hold the Right Upright near the Base
(85). Then, pull the other end of the wire tie until
the Upright Wire is routed completely through
the Right Upright.
85
77
78
80
77
3
Wire
Tie
78
77
Wire Tie

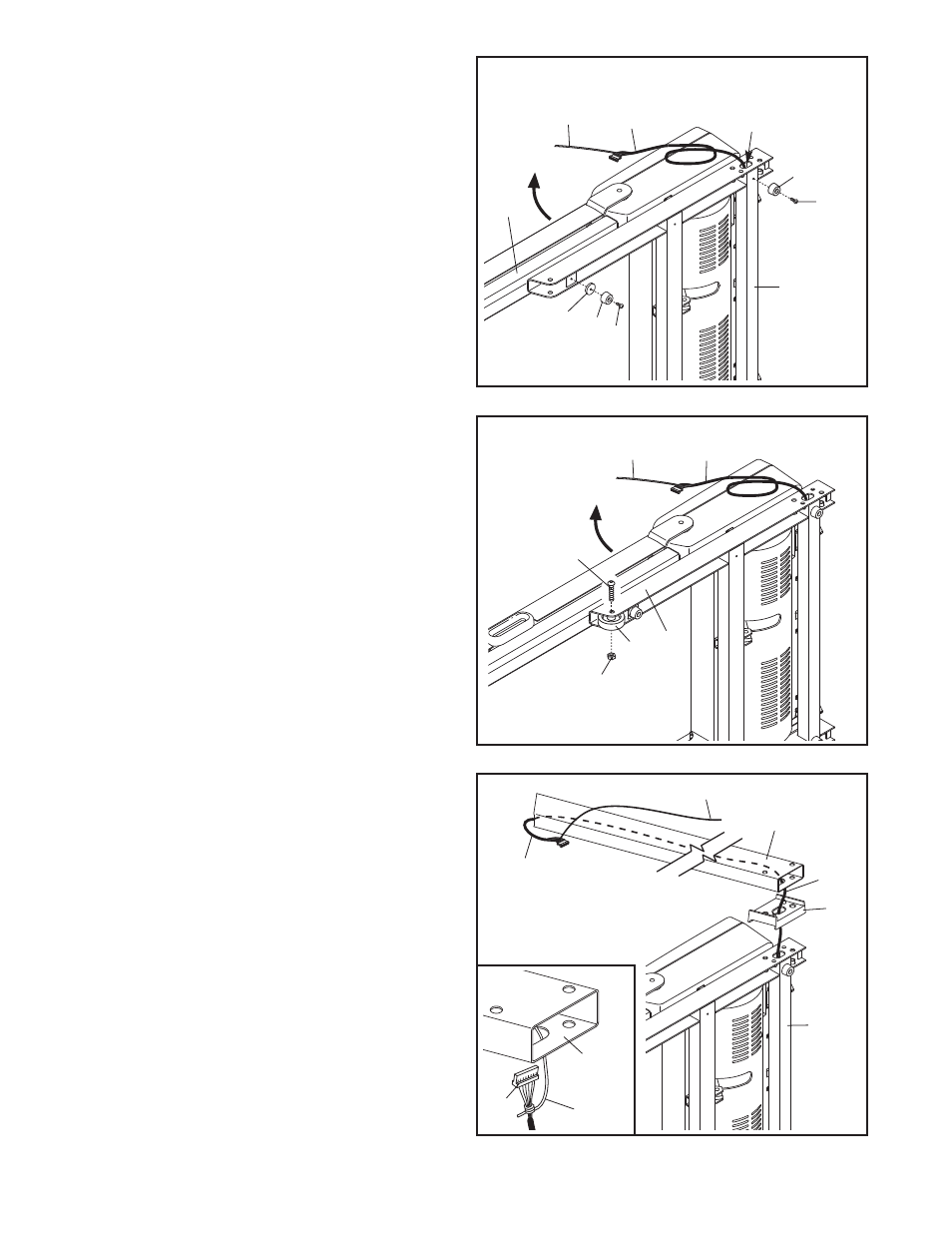

1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (48) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the tie securing the Upright Wire (77) to the
Base (85). Locate the tie in the indicated hole in
the Base, and use the tie to pull the Upright Wire
out of the hole.
Attach a Base Pad (81) to the Base (85) in the
location shown with a Base Pad Spacer (64) and
an M4.2 x 25mm Screw (2). Then, attach an-
other Base Pad (81) with only an M4.2 x 25mm
Screw (2).
85
2
48
81
1
81 2
77 Tie
Hole
64
