Grounding
Ground all of this equipment:
• Pump: use a ground wire and clamp. See F IG . 3.
Loosen the grounding screw (X). Insert one end of a
12 ga (1.5 mm
2
) minimum ground wire (Y) under the
clamp and tighten the screw securely. Connect the
other end of the wire to a true earth ground. For a
ground wire and clamp, order Part No. 222011.
• Air and fluid hoses: Use only electrically conductive
hoses.
• Air compressor: Follow manufacturer’s recommen-
dations.
• Fluid supply drum: Follow your local code.
• All fluid pails used when flushing: Follow your local
code. Use only conductive metal pails placed on a
grounded surface. Do not place the pail on a non-
conductive surface, such as paper or cardboard,
which interrupts the grounding continuity.

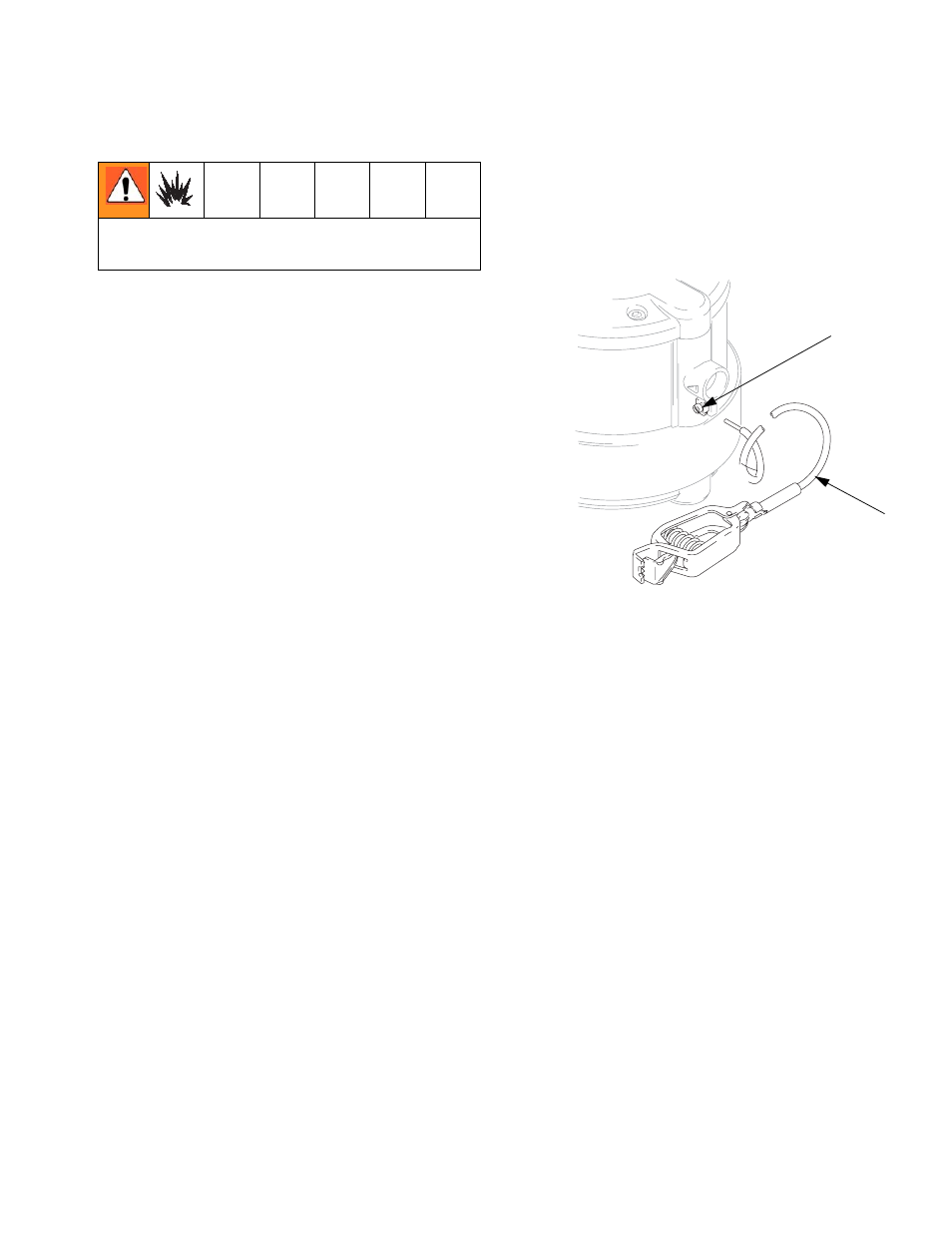

F IG . 3. Grounding the Pump
Before operating the pump, ground the system as
explained below. Read the warnings on page 3.
Y
X
TI2126A
