OPTIONAL INSTALLATIONS
DIMENSIONS AND CLEARANCES
(cont.)
INSTALLATION OVER A GE UNDERSINK
DISHWASHER
This cooktop is only approved for installation over a
GE Undersink Dishwasher Model GSM2100. Follow
the installation instructions packed with the
dishwasher.
The controls must be oriented toward the front
edge of the countertop.
4
16
Installation Instructions
PREPARING THE OPENING
(CONT.)
Make sure the wall coverings, countertop and
cabinets around the cooktop can withstand
heat (up to 200°F) generated by the cooktop. 5
Wall coverings,
cabinets and
countertop must
withstand heat
up to 200°F.

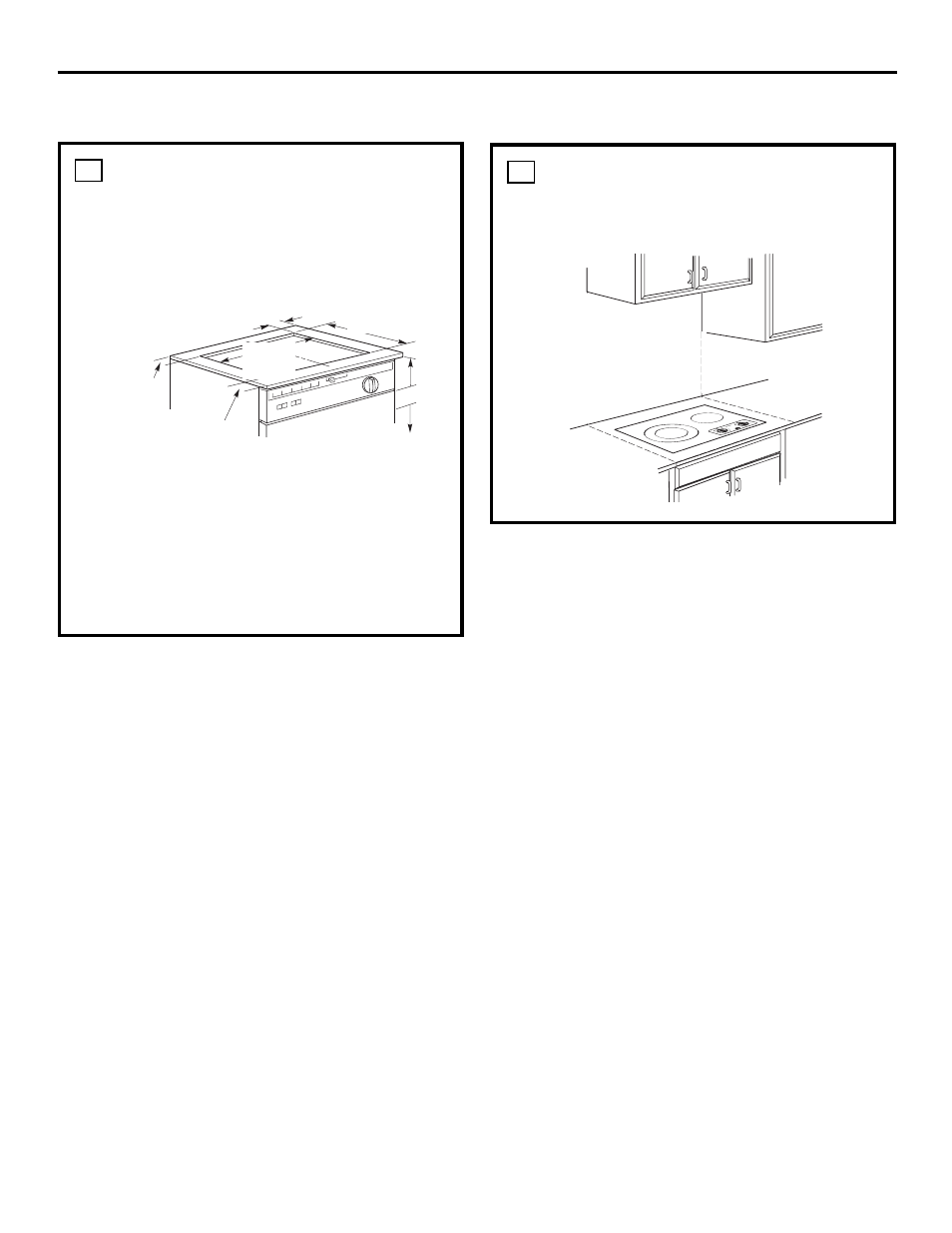

4-1/2 ″ MIN.
from front edge
of cutout and
front edge of
countertop
36 ″
Floor
1-3/4 ″ MIN.
clearance to
side walls
16-1/8 ″
depth
of cutout
2 ″ MIN. between
cutout and the
wall behind
the cooktop
20-1/8 ″
width
of cutout
