For answers to your Monogram,

®

GE Profile

or GE

®

appliance questions, visit our website

at ge.com or call GE Answer Center

®

service,

800.626.2000.

110163

Specification Created 6/08

Listed by

Underwriters

Laboratories

ZIRS360NX

GE Monogram

®

36" Built-In Integrated All-Refrigerator

Dimensions and Installation Information

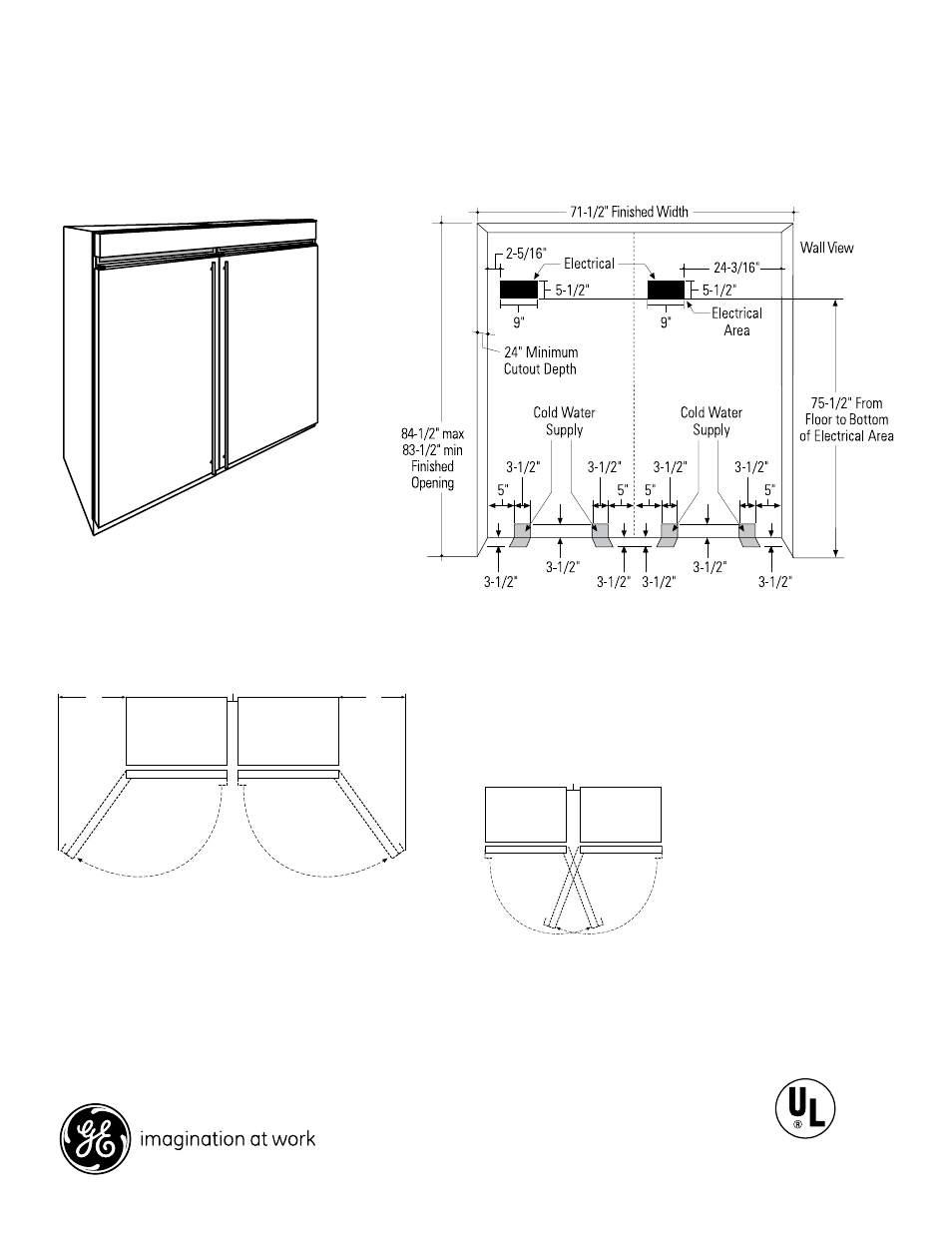

Cutout and Clearances for Multiple Product Installations

If you are installing two units, side by side, the installation
space must be 71-1/2" wide. Additional cutout width may be
required when side panels are used. Add side panel thickness
to the finished cutout to calculate rough-in width.
• The water and electrical locations for each product must be

located as shown.

• A separate 115V, 60Hz., 15 or 20 amp power supply is

recommended for each product.

251Dia35

251Dia61

25"

Min. to

Wall

0"

25"

Min. to

Wall

130ϒ Door Swing 130ϒ Door Swing

Clearances for two products installed side-by-side with

right and left side hinges together
Allow 5" minimum between the two products to prevent
one door from striking the other. Use the WX14X99
adjustable door stop to reduce the factory set 130˚ door
swing and to allow pan removal.

NOTE: A unified grille

panel kit will NOT fit this installation.

Clearances for Multiple Single Door Installations
In a side-by-side installation of a left and right door swing
product, the inside trims touch at the front, with a 1" clearance
between the units at the rear. Order ZUGSS2 Unified Grille Panel
Kit for one continuous grille panel.

ZUGSS2: For side-by-side installation of two stainless
steel wrapped models. This kit provides a unified
stainless steel grille panel to span the width of two units.

For a complete food storage center, install a Monogram
All-Refrigerator and All Freezer side-by-side. For even
more capacity, install two refrigerators or two freezers.

5"
