Service Steering & Brakes - 37
SERVICE STEERING & BRAKES
Service Steering & Brakes

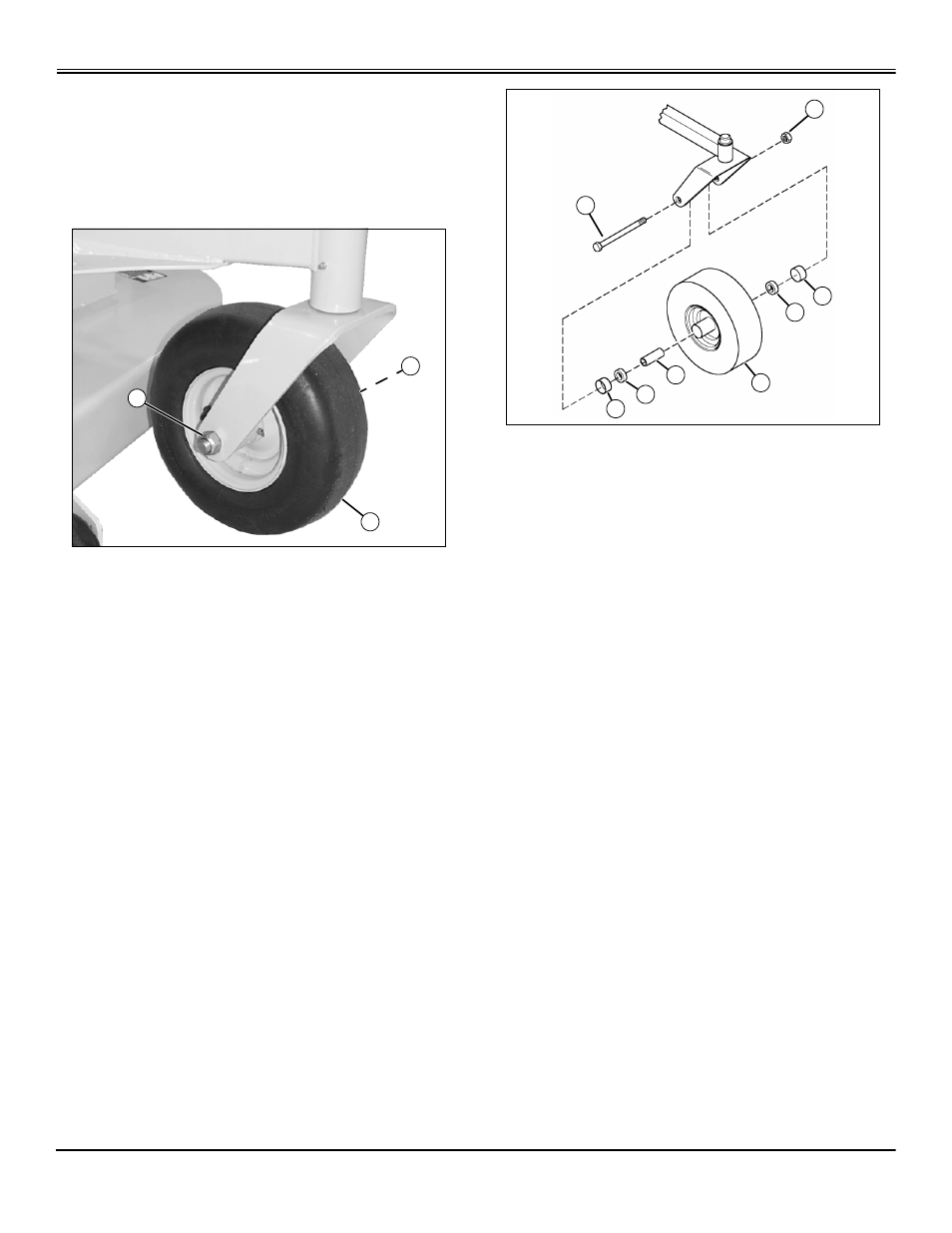

Remove and Install Front Caster Wheels
Removing
1. Park machine safely. (See Parking Safely in the Safety
section.)
2. Lift front of machine with a safe lifting device.
MX15323
3. Remove hex nut (A) and wheel bolt (B).
4. Remove wheel (C) from assembly yoke.
Installing
1. Install replacement wheel (C).
2. Install wheel bolt (B) and hex nut (A).
3. Tighten nut.
4. Lower machine.
Servicing Front Caster Wheel Roller Bearings
- Chariot
1. Park machine safely. (See Parking Safely in the Safety
section.)
2. Raise and securely support the front of the mower deck.
MX15324
3. Remove locknut (A), capscrew (B), two trash guards (C)
and wheel and tire assembly (D).
4. Remove bearings (E) and spacer tube (F) from wheel.
5. Wipe clean and inspect bearings (E). Replace bearings
as needed.
6. Install spacer tube (F), press bearings (E) into wheel
and tire assembly.
7. Install wheel and tire assembly (D), two trash guards
(C), capscrew (B) and locknut (A).
Servicing Front Caster Wheel Roller Bearings
- Chariot LX
1. Park machine safely. (See Parking Safely in the Safety
section.)
2. Raise and securely support the front of the mower deck.
A
B
C
B
D
C
C
E
E
F
A
