GE Monogram ZCGS150RSS - Manual

Dimensions and Installation Information (in inches)
Listed by
Underwriters
Laboratories
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center ®
service, 800.626.2000.
160011
This compactor is designed as a built-in appliance
only. It may be located in any convenient space
under a countertop.
DO NOT OPERATE FREE-STANDING because the compactor
will tip over when the drawer is pulled out.
Additional Specifications: A 115 Volt, 60 Hz. power supply
is required. An individual properly grounded branch circuit
protected by a 15- or 20-amp circuit breaker or time delay
fuse is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
outlet location is critical for proper cord storage when
compactor is installed.
If the compactor is to be located in or near a corner of base
cabinets, allow 6” minimum clearance from the corner for
bag removal from the right side.

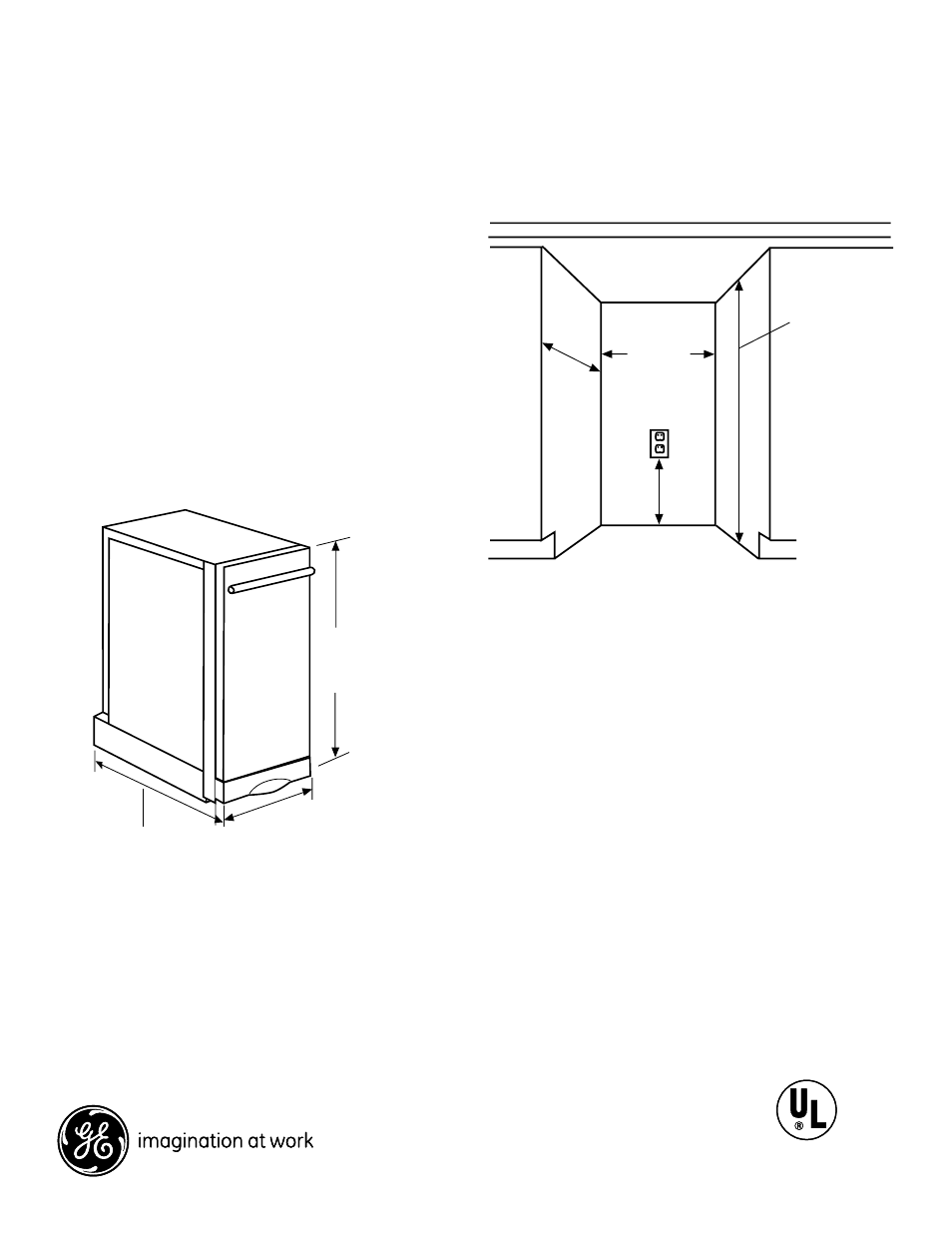

Front View (not to scale)
33-3/4"
min. to
35" max.
34" to 35"
15"
min.
24"
min.
14-7/8"
Stainless steel model
24" case/door depth
26" including handle
Custom-panel model, ZCGP150RII, requires
a 3/4"-thick custom panel and will be
24-1/4" case/door panel total depth.
3" min. from
either side
Locate the
outlet 18" min.
from the floor.
33-3/4"
min. to
35" max.
34" to 35"
15"
min.
24"
min.
14-7/8"
Stainless steel model
24" case/door depth
26" including handle
Custom-panel model, ZCGP150RII, requires
a 3/4"-thick custom panel and will be
24-1/4" case/door panel total depth.
3" min. from
either side
Locate the
outlet 18" min.
from the floor.
ZCGS150RSS - GE Monogram Stainless Steel 15" Built-In Compactor
Specification Created 4/09
Clearances: Allow 6"
clearance to a vertical
wall on the right side
for bag removal. Allow
23" at the front for a full
drawer opening.
