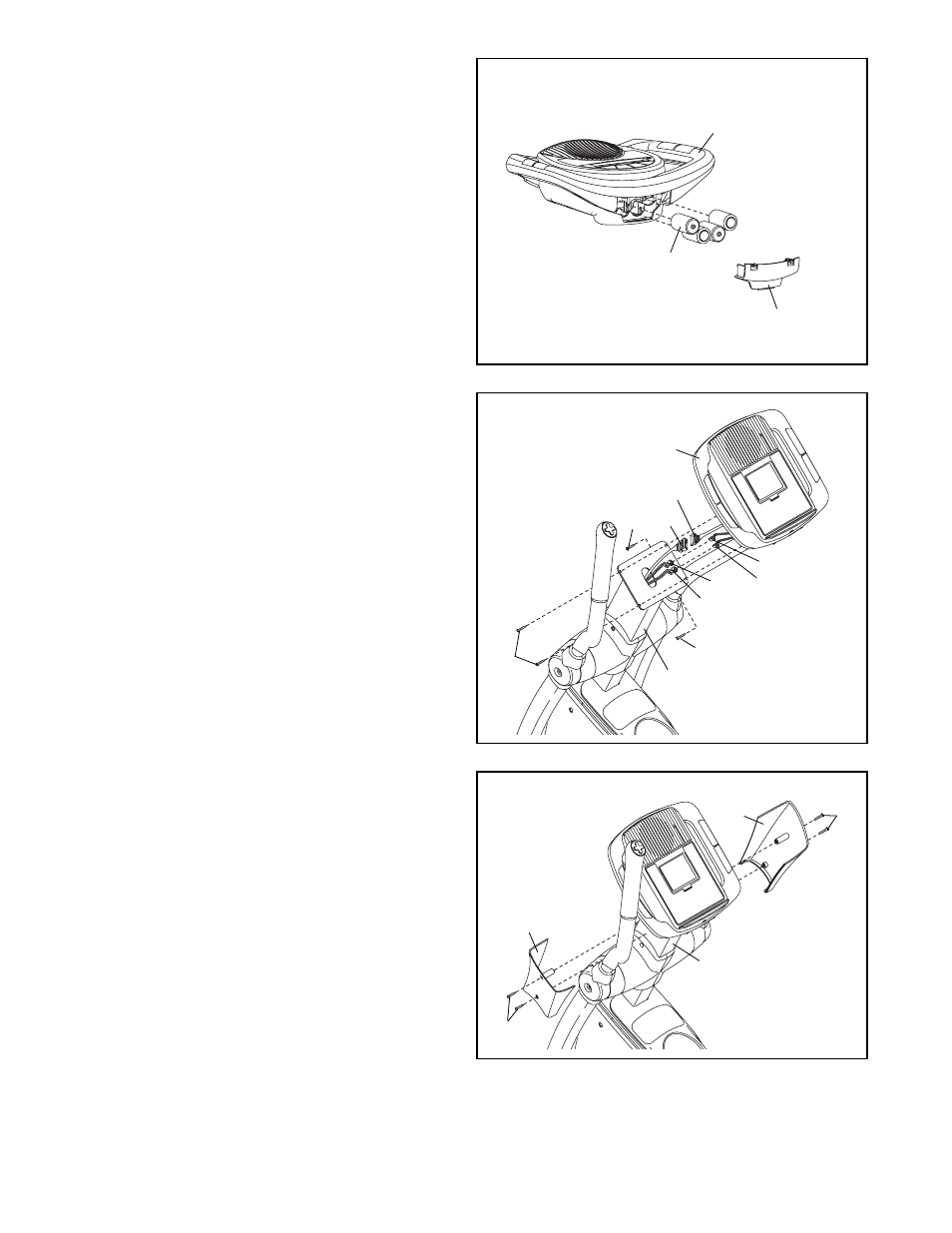

14. Have a second person hold the Console (5) near
the Upright (6) as shown. Connect the console
wire harness to the Wire Harness (48).
Next, connect the right wire, which has a tag
attached, to the Right Controller Wire (111),
which has a tag attached. Then, connect the left
wire to the Left Controller Wire (110). Insert the
excess wire downward into the Upright (6).
Attach the Console (5) to the Upright (6) with
four M4 x 16mm Self-tapping Screws (79).
13. The Console (5) requires four 1.5V “D” batteries
(not included); alkaline batteries are recom-
mended. IMPORTANT: If the elliptical exercis-
er has been exposed to cold temperatures,
allow it to warm to room temperature before
inserting batteries into the Console. If you
do not do this, the console displays or other
electronic components may become dam-
aged. Remove the battery cover and insert four
batteries into the Console. Make sure that the
batteries are oriented as shown at the right.
Then, reattach the battery cover.
Note: The Console (5) can be operated with an
optional power supply instead of batteries. To
purchase a power supply, call the telephone
number on the front cover of this manual.
Plug one end of the power supply into the jack
at the front of the elliptical exerciser. Plug the
other end of the power supply into an appropri-
ate outlet that is properly installed in accor-
dance with all local codes and ordinances.
16. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
13
14
Battery
Cover
Batteries
5
5
79 48
110
111
79
6
79
Console Wire Harness
Left Wire
Right Wire
15. Attach the Left and Right Upright Covers (10,
64) to the Upright (6) with four M4 x 16mm
Screws (86).
10
86
86 64
6
15
